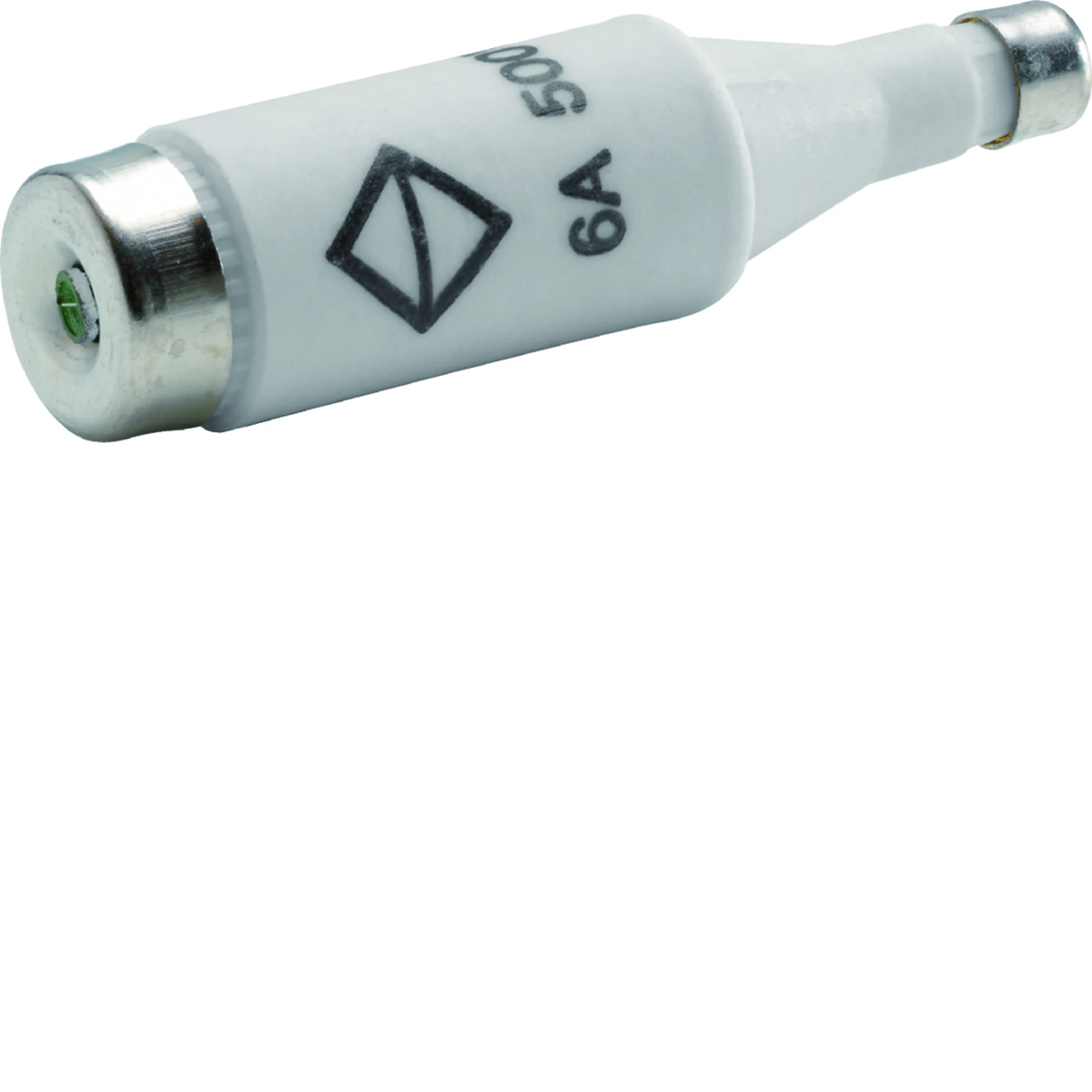

Slow-blow fuse link NDZ T-6A 500V DI/E16 LNDZ06

local index:
ABI455HAGE
Catalog No:
LNDZ06
EAN code:
3250614131608
Manufacturer: HAGER
Length [mm]: 50
DC operating voltage [V]: 0/500/550
Rated current [A]: 6
Price:
1,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DI slow-blow fuse link (for E16 sockets):

  • fuse characteristics: gG,
  • tripping characteristics: träge (T).

Technical data

  • Length [mm]
    50
  • Rated current [A]
    6
  • Width [mm]
    13.2
  • Height [mm]
    13.2
  • Rated short-circuit breaking capacity Icn [kA]
    4
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    2.1
  • Fuse link size
    SUN
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    NDZ
  • Rated voltage
    500 V
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Rated current
    6 A
  • Colour code
    Green
  • Release characteristic
    Time-lag (T)

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 25 pcs. 500 pcs. 35000 pcs.
Weight (kg) 0,010 0,290 5,895 441,950
Width (m) 0,013 0,070 0,165 0,800
Length (m) 0,013 0,055 0,125 0,750
Depth (m) 0,050 0,070 0,380 1,200
