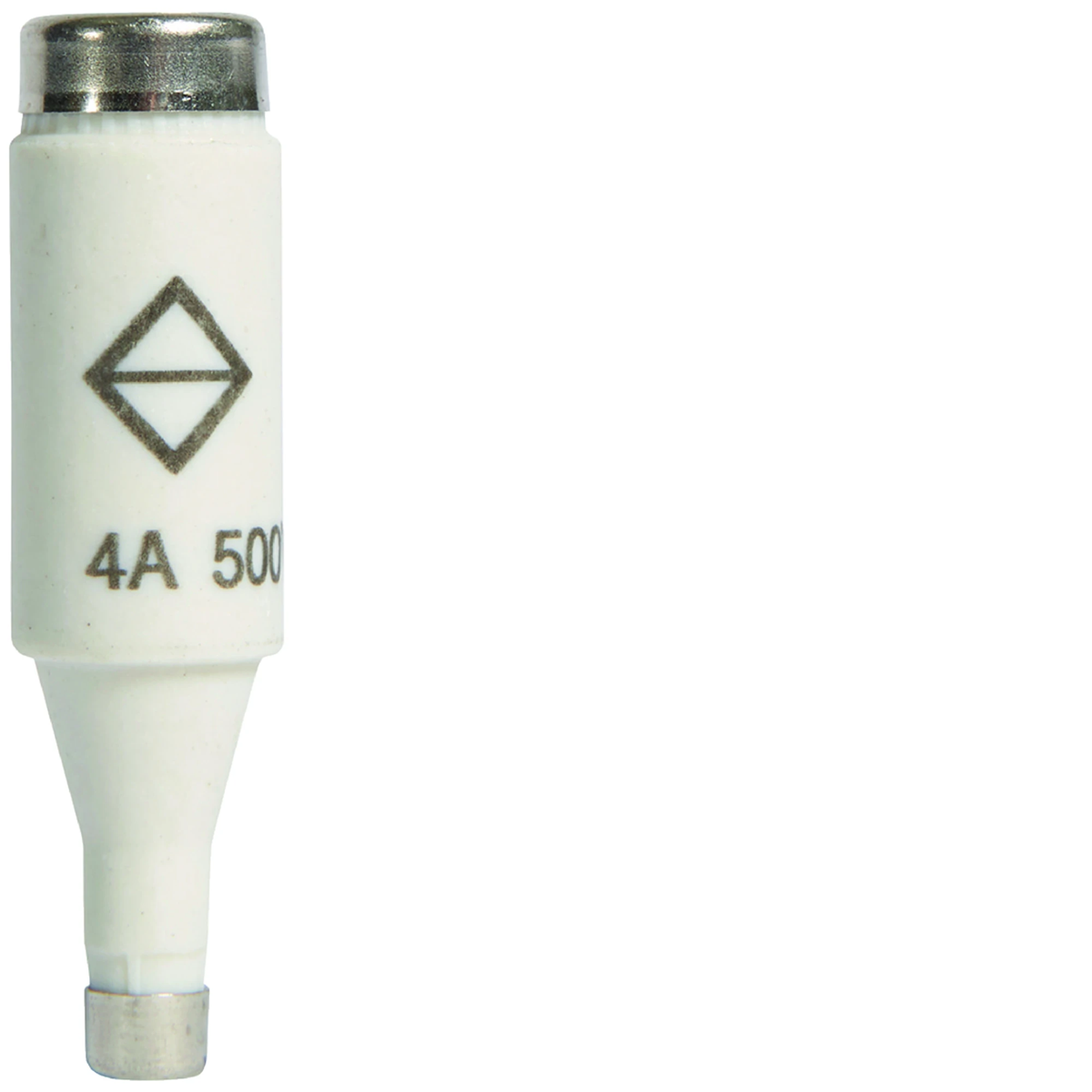

Slow-blow fuse link NDZ T-4A 500V DI/E16 LNDZ04
local index:
ABI454HAGE
Catalog No:
LNDZ04
EAN code:
3250614131592
Price:
2,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DI slow-blow fuse link (for E16 sockets):
- fuse characteristic: gG,
- tripping characteristic: träge (T).
Technical data
-
Length [mm]50
-
Rated current [A]4
-
Width [mm]13.2
-
Height [mm]13.2
-
Rated short-circuit breaking capacity Icn [kA]4
-
DC operating voltage [V]0/500/550
-
power loss [W]2
-
Fuse link sizeSUN
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
Other technical data
-
Construction sizeNDZ
-
Rated voltage500 V
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Rated current4 A
-
Colour codeBrown
-
Release characteristicTime-lag (T)
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 25 pcs. | 500 pcs. | 35000 pcs. |
| Weight (kg) | 0,010 | 0,280 | 5,760 | 432,400 |
| Width (m) | 0,013 | 0,072 | 0,160 | 0,800 |
| Length (m) | 0,013 | 0,052 | 0,120 | 0,750 |
| Depth (m) | 0,050 | 0,074 | 0,380 | 1,200 |
