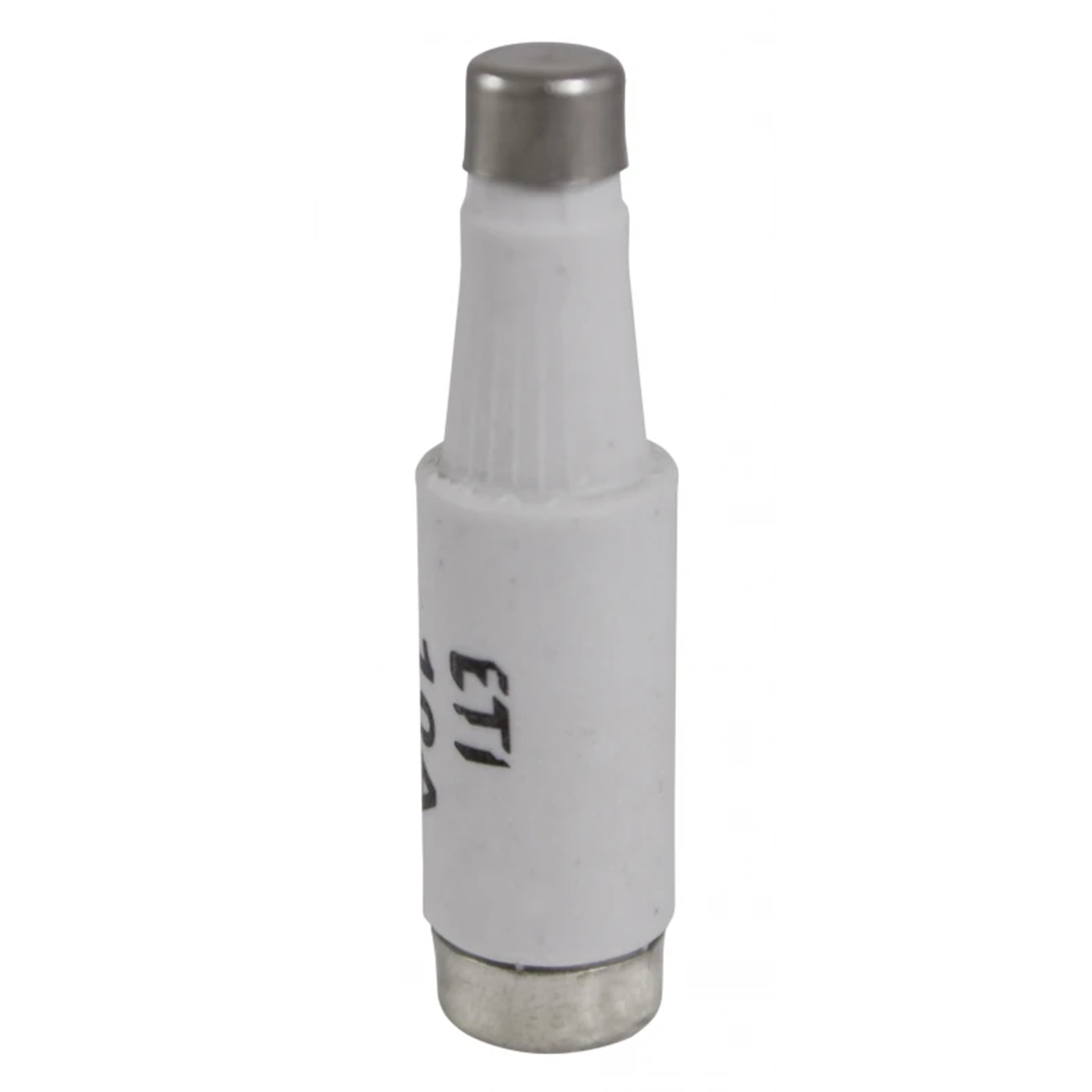

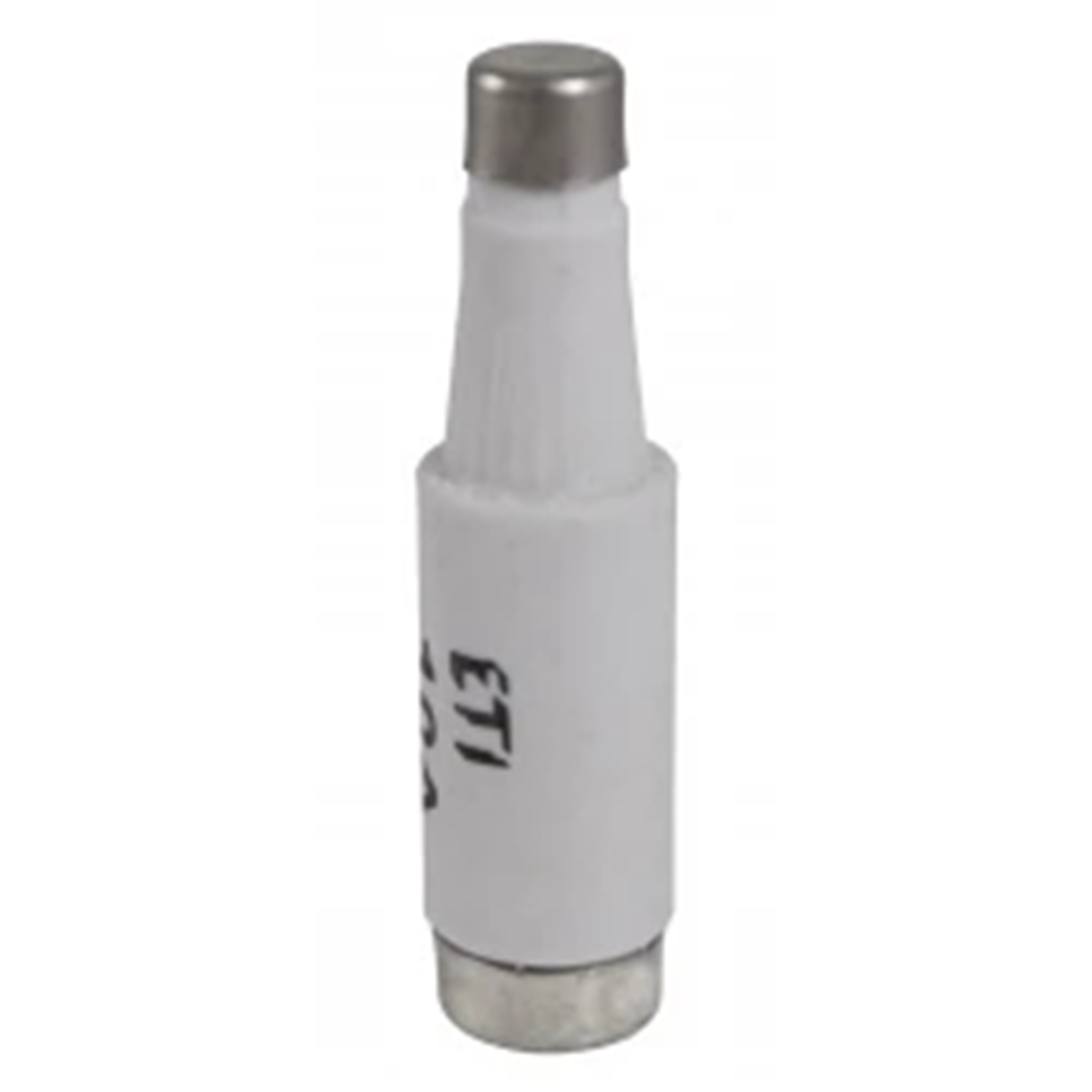

System D fuse-links are designed to be replaced by lay people (mainly for household and similar applications). They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing terminals in sockets,
→ sockets with a TH rail holder.

Characteristic

gG
Rated voltage [V]

500
Pieces in the package

10
Compliance with standards

PN-IEC 269-1, EN 60269, PN-87/E-93100

Protection class

VDE 0110
Rated current [A]

25
Type

DI/gG 25A 500
PKWIU

27.12.21.0

Other technical data

Construction size

DI
Rated voltage

500 V
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Rated current

25 A
Colour code

Yellow
Release characteristic

Time-lag (T)

Manufacturer details

Manufacturer

ETI-POLAM Sp. z o.o.
Address

06-100 Pułtusk Jana Pawła II 18
E-mail

etipolam@etipolam.com.pl
WWW

https://www.etipolam.com.pl
Tax identification number

5681370113
GLN

5909000467408

A kind of package	Pudełko	Pudełko
Quantity	1 pkg.	50 pkg.
Weight (kg)	0,120	-
Volume (m3)	0,000	-
Width (m)	0,030	-
Length (m)	0,068	-
Depth (m)	0,050	-
