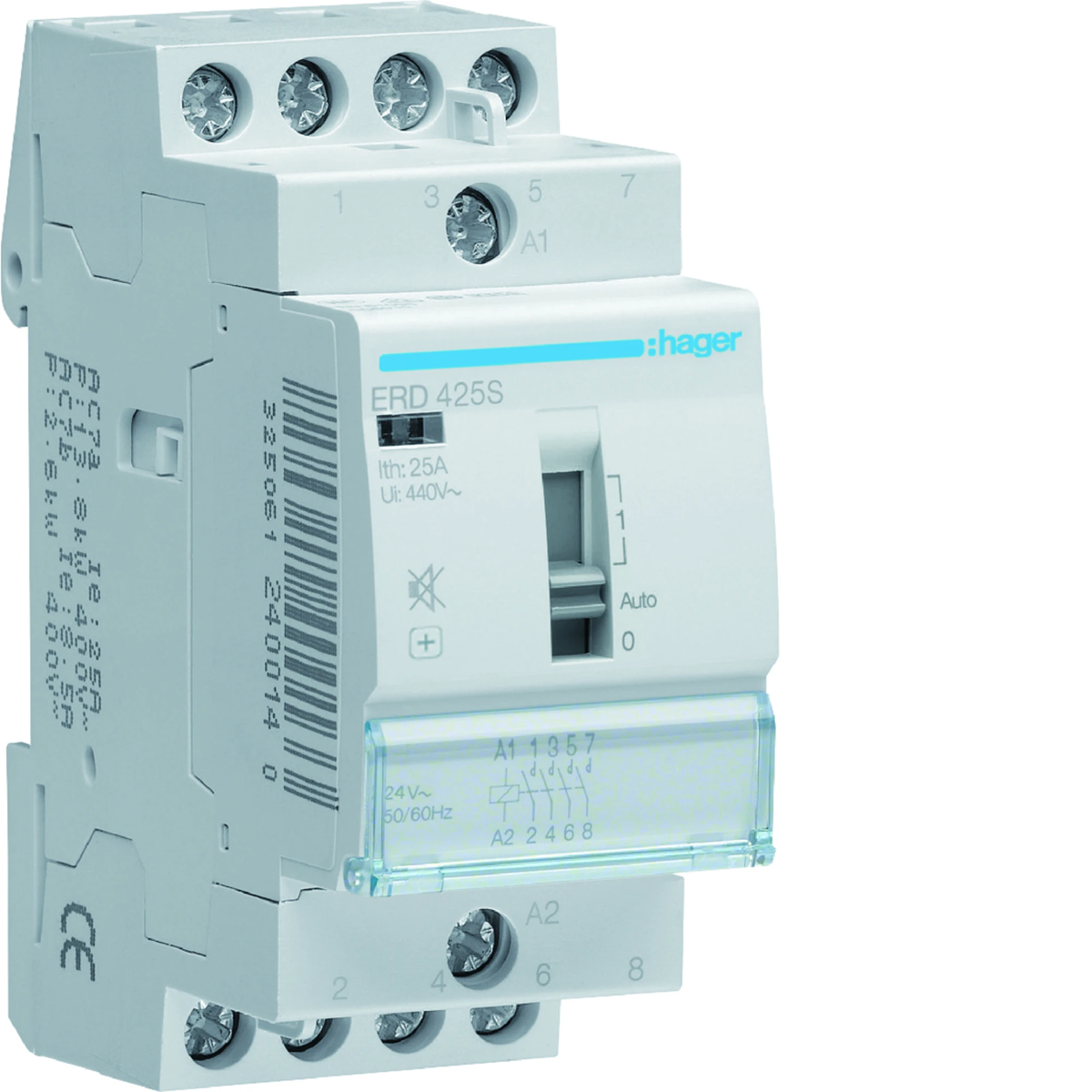

Silent contactor with manual control 4NO 25A 24V AC/DC ERD425S

local index:
ATM011HAGE
Catalog No:
ERD425S
EAN code:
3250612400140
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 2
Number of contacts: 4NO 0NC
Price:
68,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactor with manual control 4NO 25A 24V AC/DC

Technical data

  • Depth [mm]
    60
  • Number of contacts
    4NO 0NC
  • Operating voltage [V]
    400
  • DC control voltage [V]
    24
  • Rated insulation voltage [V]
    440
  • Power dissipation [W]
    8.9
  • Height [mm]
    83
  • PKWIU
    27.12.24.0
  • Number of modules
    2
  • Maximum input power [W]
    2.9
  • AC control voltage [V]
    24
  • Surge voltage [kV]
    4
  • Rated current [A]
    25
  • Width [mm]
    35.75
  • Number of modules
    2

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    Yes
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,192 0,214 13,280 343,720
Width (m) 0,036 0,082 0,316 0,800
Length (m) 0,083 0,038 0,211 0,994
Depth (m) 0,065 0,097 0,368 1,200
