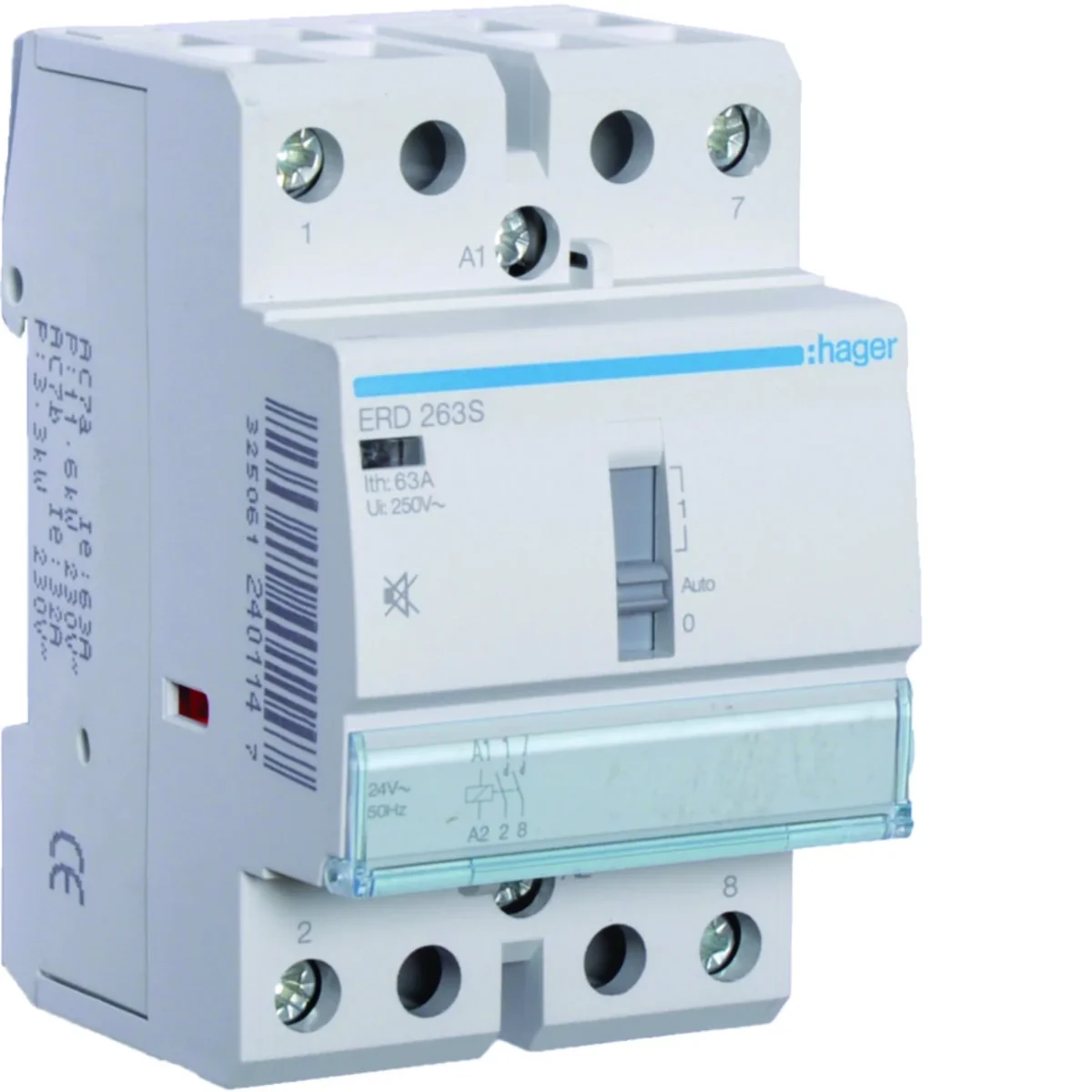

Silent contactor with manual control 24VAC/DC 2NO 63A ERD263S

local index:
ATM095HAGE
Catalog No:
ERD263S
EAN code:
3250612400348
Manufacturer: HAGER
Rated frequency [Hz]: 60
Depth [mm]: 60
Number of contacts: 2NO 0NC
Price:
129,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactor with manual control:

  • 2NO
  • category of use: AC-7a/b

Application:

  • incandescent lamps (traditional and halogen bulbs)
  • linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic ignitor
  • discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
  • resistive loads (category AC-7a)
  • inductive loads (category AC-7b)

Technical data

  • Rated frequency [Hz]
    60
  • Number of contacts
    2NO 0NC
  • Number of poles
    2
  • Tightening torque [Nm]
    Coil: 2.5 ; Power: 3.5
  • Rated insulation voltage [V]
    440
  • power loss [W]
    15
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    30000
  • Operating temperature range [°C]
    from -10 to 50
  • Rated impulse voltage [kV]
    4
  • Maximum bulb power [W]
    6500
  • Reaction time when opening [ms]
    20
  • Control cable cross-section [mm²]
    1 - 6
  • Power loss per contact [W]
    5
  • Wire cross-section (cord) [mm²]
    4 - 16
  • PKWIU
    27.12.24.0
  • Depth [mm]
    60
  • Protection class
    II
  • Maximum input power [W]
    5W
  • AC control voltage [V]
    24
  • Rated current [A]
    63
  • Width [mm]
    54
  • Height [mm]
    85
  • Mechanical durability (number of cycles)
    1000000
  • Rated switching voltage [V]
    400
  • Number of modules
    3
  • Wire cross-section [mm²]
    1 to 10
  • Input power [W]
    5
  • Manual control
    Yes
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    4 -25

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    2
  • Max. incandescent lamp load
    6500 W
  • Max. load fluorescent lamp (Duo circuit)
    4700 VA
  • Slider for hand switch
    Yes
  • Additional equipment possible
    Yes
  • Rated operation current
    63 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    3000 VA
  • Max. load fluorescent lamp (parallel compensated)
    2100 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,323 0,325 15,980 406,520
Width (m) 0,054 0,080 0,318 0,800
Length (m) 0,085 0,060 0,216 1,050
Depth (m) 0,065 0,095 0,372 1,200
