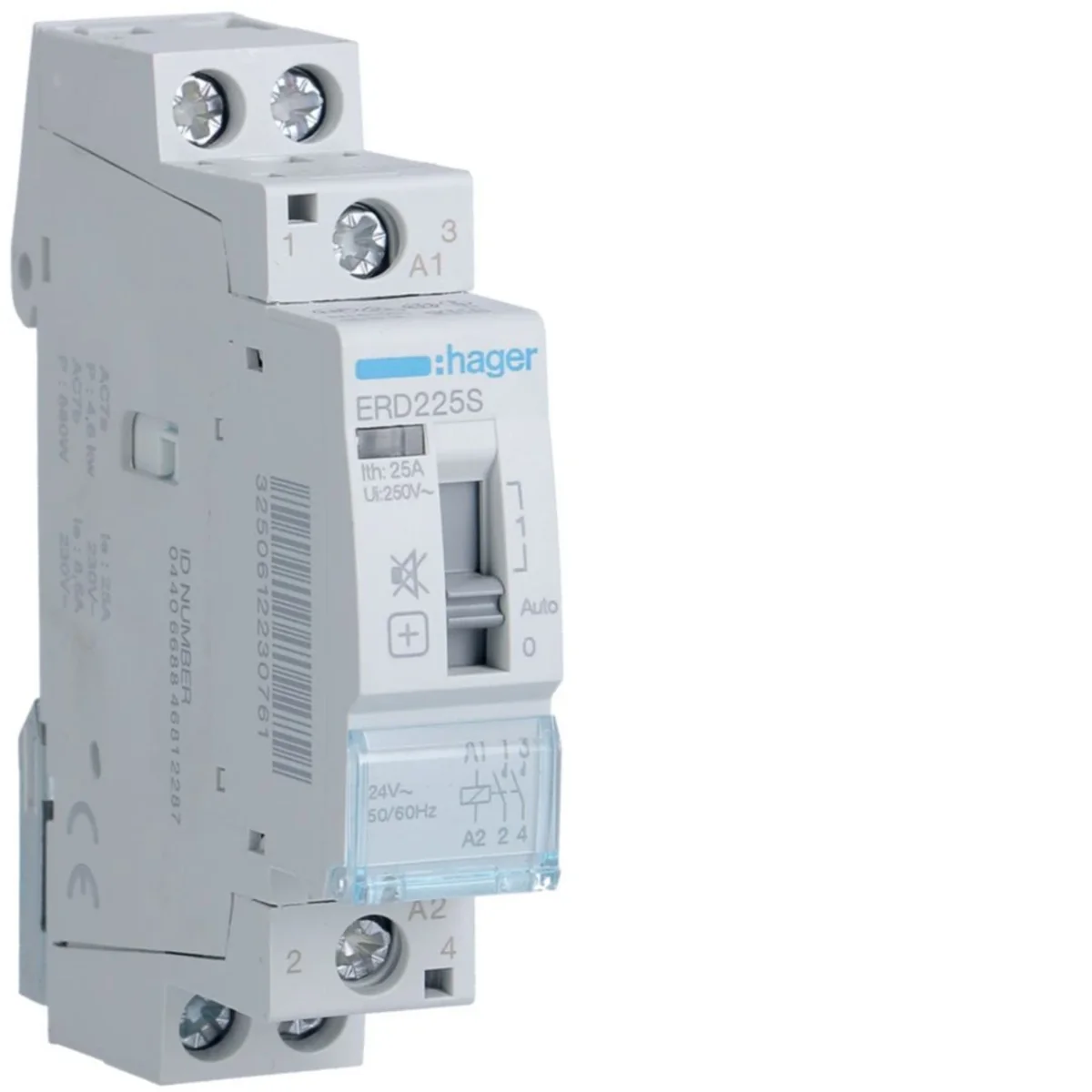

Silent contactor with manual control 24VAC 2NO 25A ERD225S
local index:
ATM091HAGE
Catalog No:
ERD225S
EAN code:
3250612230761
Price:
39,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Silent contactor with manual control:
- 2NO
- category of use: AC-7a/b
Application:
- incandescent lamps (traditional and halogen bulbs)
- linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic ignitor
- discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
- resistive loads (category AC-7a)
- inductive loads (category AC-7b)
Technical data
-
Rated frequency [Hz]60
-
Maximum input power [VA]2.2
-
AC control voltage [V]24
-
Rated current [A]25
-
power loss [W]5.2
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)30000
-
Operating temperature range [°C]from -10 to 50
-
Rated impulse voltage [kV]4
-
Maximum bulb power [W]1900
-
Reaction time when opening [ms]15
-
Control cable cross-section [mm²]1 - 6
-
Power loss per contact [W]1.5
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]60
-
Tightening torque [Nm]1.2
-
Rated insulation voltage [V]250
-
Contact type2 NO
-
Width [mm]17.85
-
Height [mm]83
-
Mechanical durability (number of cycles)100000
-
Rated switching voltage [V]230
-
Number of modules1
-
Wire cross-section [mm²]1 to 10
-
Input power [VA]2.2
-
Manual controlYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1 - 10
Other technical data
-
Rated operating voltage230 ... 230 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchYes
-
Additional equipment possibleNo
-
Rated operation current25 A
-
Rated excitation voltage24 ... 24 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,112 | 0,117 | 13,076 | 313,632 |
| Width (m) | 0,021 | 0,080 | 0,316 | 0,800 |
| Length (m) | 0,091 | 0,022 | 0,221 | 1,150 |
| Depth (m) | 0,080 | 0,095 | 0,371 | 1,200 |
