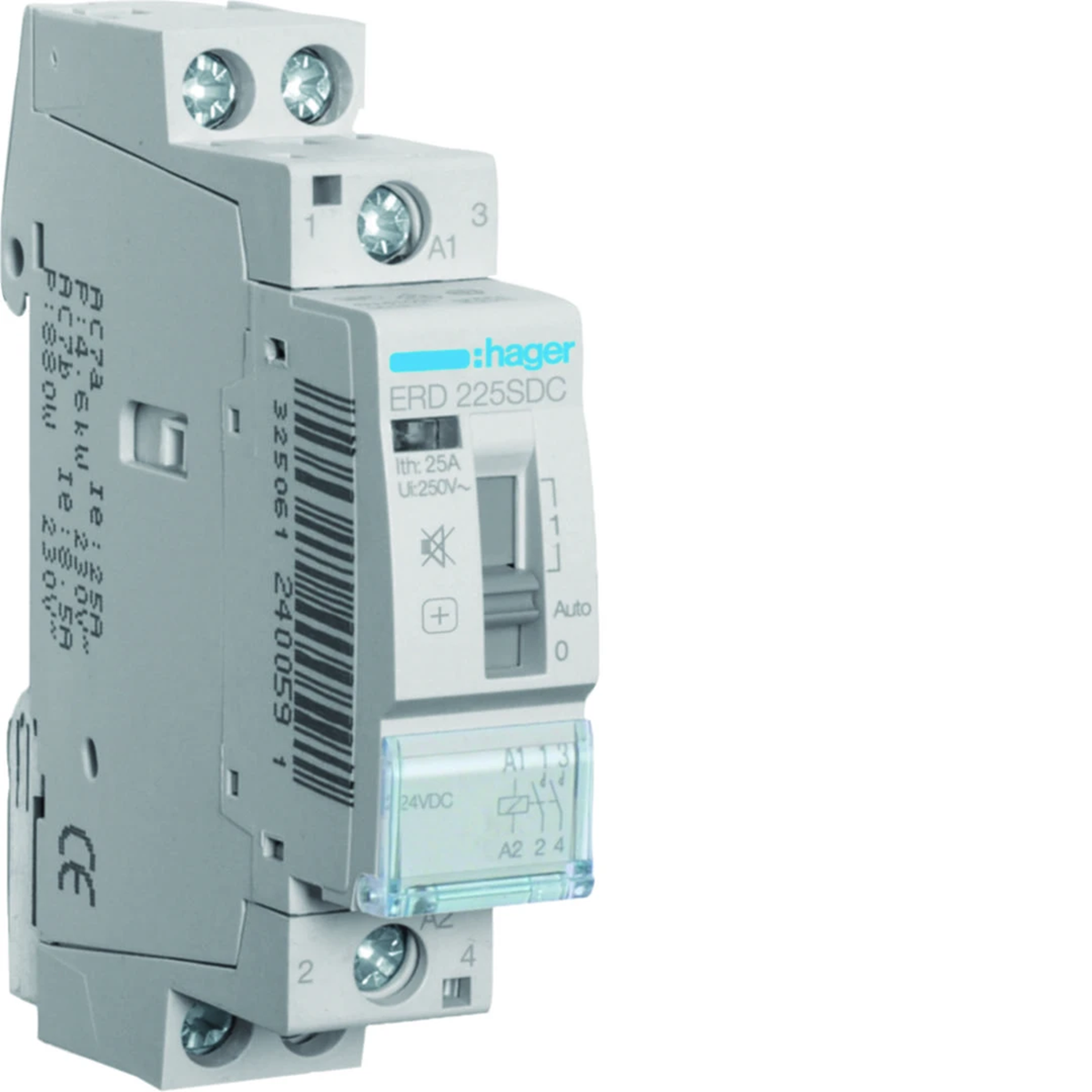

Silent contactor with manual control 24V DC 2NO 25A ERD225SDC

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).

Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear
