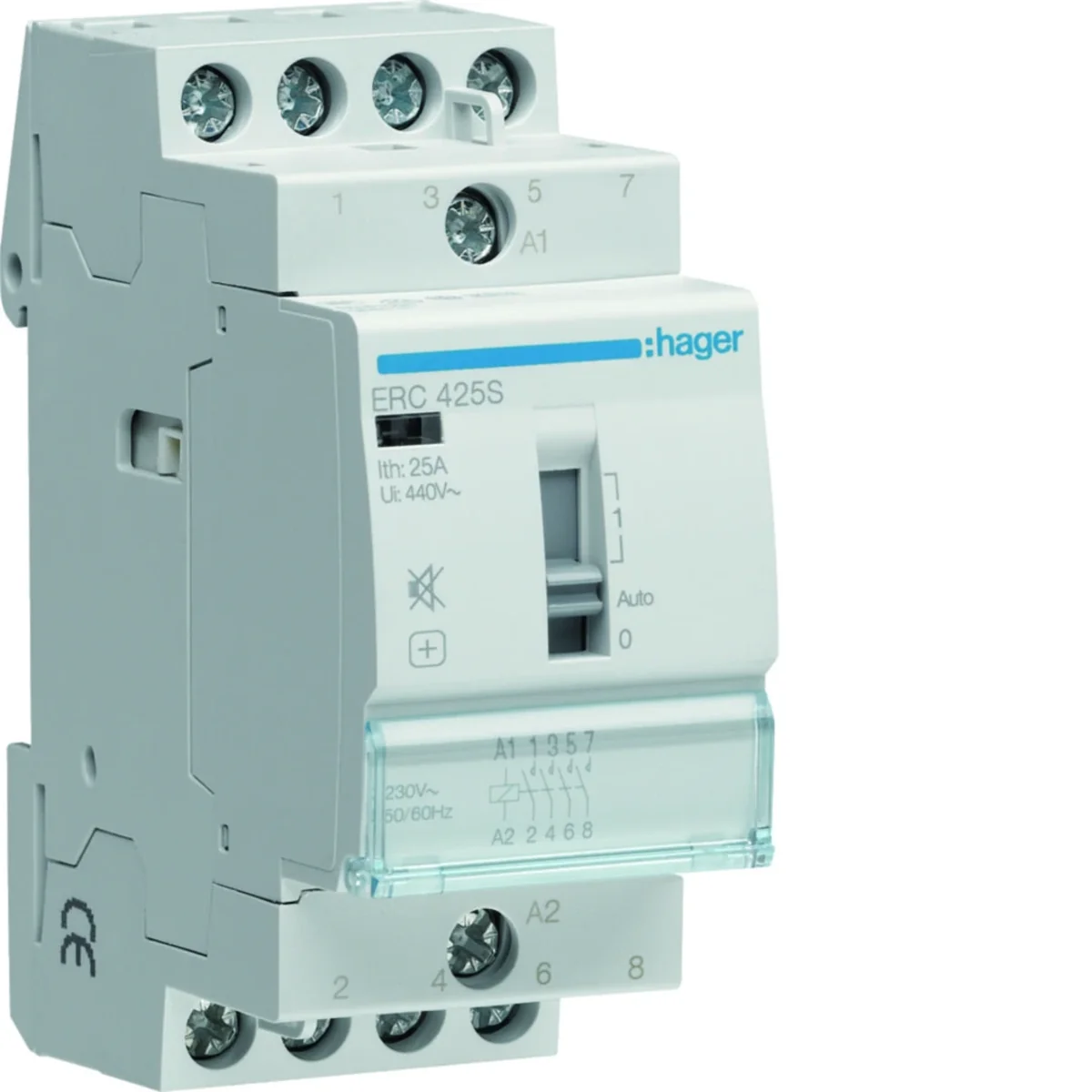

Silent contactor with manual control 230VAC 4NO 25A ERC425S
local index:
ATM085HAGE
Catalog No:
ERC425S
EAN code:
3250612400126
Price:
67,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Silent contactor with manual control:
- 4NO
- category of use: AC-7a/b
Application:
- incandescent lamps (traditional and halogen lamps)
- linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic ignition
- discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
- resistive loads (category AC-7a)
- inductive loads (category AC-7b)
Technical data
-
Rated frequency [Hz]60
-
Number of contacts4NO 0NC
-
Number of poles4
-
Tightening torque [Nm]1.2
-
Rated insulation voltage [V]440
-
power loss [W]8.8
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)30000
-
Operating temperature range [°C]from -10 to 50
-
Rated impulse voltage [kV]4
-
Maximum bulb power [W]1900
-
Reaction time when opening [ms]15
-
Control cable cross-section [mm²]1 - 6
-
Power loss per contact [W]1.5
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]60
-
Protection classII
-
Maximum input power [VA]2.8
-
AC control voltage [V]230
-
Rated current [A]25
-
Width [mm]35.75
-
Height [mm]83
-
Mechanical durability (number of cycles)1000000
-
Rated switching voltage [V]400
-
Number of modules2
-
Wire cross-section [mm²]1 to 10
-
Input power [VA]2.8
-
Manual controlYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1 - 10
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchYes
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,202 | 0,217 | 13,281 | 341,744 |
| Width (m) | 0,036 | 0,082 | 0,323 | 0,800 |
| Length (m) | 0,083 | 0,041 | 0,211 | 0,994 |
| Depth (m) | 0,065 | 0,098 | 0,365 | 1,200 |
