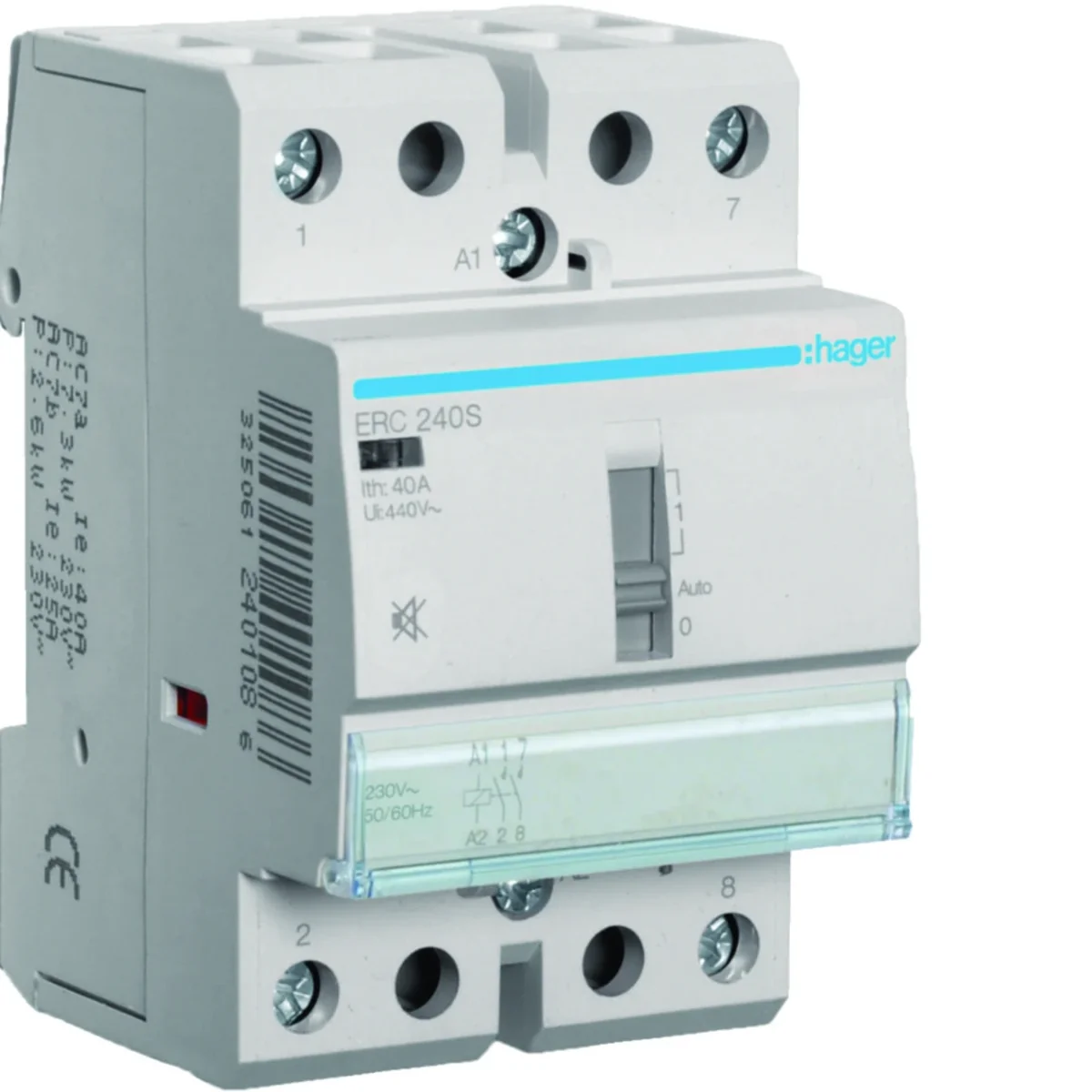

Silent contactor with manual control 230VAC 2NO 40A ERC240S
Místní index:
ATM083HAGE
Katalogové číslo.:
ERC240S
EAN kód:
3250612400270
Cena:
427,74 zł
gross / kusů.
(včetně DPH 23%)
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
Silent contactor with manual control:
- 2NO
- category of use: AC-7a/b
Application:
- incandescent lamps (traditional and halogen lamps)
- linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic ignition
- discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
- resistive loads (category AC-7a)
- inductive loads (category AC-7b)
Technické údaje
-
Rated frequency [Hz]60
-
Number of contacts2NO 0NC
-
Number of poles2
-
Tightening torque [Nm]Coil: 2.5 ; Power: 3.5
-
Rated insulation voltage [V]440
-
power loss [W]11.4
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)30000
-
Operating temperature range [°C]from -10 to 50
-
Rated impulse voltage [kV]4
-
Maximum bulb power [W]4000
-
Reaction time when opening [ms]20
-
Control cable cross-section [mm²]1 - 6
-
Power loss per contact [W]3.2
-
Wire cross-section (cord) [mm²]4 - 16
-
PKWIU27.12.24.0
-
Depth [mm]60
-
Protection classII
-
Maximum input power [W]5W
-
AC control voltage [V]230
-
Rated current [A]40
-
Width [mm]54
-
Height [mm]85
-
Mechanical durability (number of cycles)1000000
-
Rated switching voltage [V]400
-
Number of modules3
-
Wire cross-section [mm²]1 to 10
-
Input power [W]5
-
Manual controlYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]4 -25
Další technické údaje
-
Rated operating voltage400 ... 400 V
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp1900 VA
-
Max. load fluorescent lamp (parallel compensated)1300 VA
-
Built-in depth60 mm
-
Hum-freeYes
-
Rated operation current40 A
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load4000 W
-
Max. load fluorescent lamp (Duo circuit)3000 VA
-
Slider for hand switchYes
-
Additional equipment possibleYes
-
Degree of protection (IP)IP2X
Podrobnosti o výrobci
-
VýrobceHager Electro S.A.S.
-
AdresaFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Velkoobjemová balení
| Typ obalu | Karton | Pakiet | Paleta |
| Množství | 4 kusů. | 48 kusů. | 1152 kusů. |
| Hmotnost (kg) | 1,296 | 15,932 | 407,368 |
| Šířka (m) | 0,100 | 0,310 | 0,800 |
| Délka (m) | 0,080 | 0,230 | 1,050 |
| Hloubka (m) | 0,220 | 0,360 | 1,200 |
