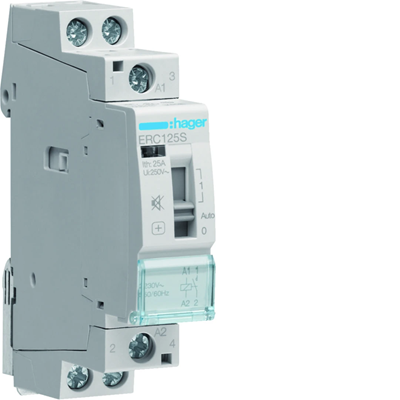

Silent contactor with manual control 230VAC 1NO 25A ERC125S

Name: Silent contactor with manual control 230VAC 1NO 25A
Brand: HAGER
SKU: ATM018HAGE
Price: 48.04 PLN

Indeks lokalny:

ATM018HAGE

Nr katalogowy:

ERC125S

Kod EAN:

3250612230525

Silent contactor with manual control 230VAC 1NO 25A

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

AC control voltage [V]: 230

Rated voltage [V]: 230

Rated current [A]: 25

Zobacz cały opis

Cena:

48,04 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Silent contactors with a new design, ensuring noise-free operation throughout the life of the device. Available versions dedicated only to DC voltage control circuits (12 and 24 V DC).

Higher load capacity:
Devices marked with the mark have a reinforced structure that allows you to connect more light sources in the pore

Application:

incandescent lamps (traditional and halogen bulbs)
fluorescent lamps; linear and compact coils,
discharge lamps (high pressure sodium and mercury vapor lamps, metal halide lamps),
LED sources,
resistive loads (category AC- 7a),
inductive loads (category AC-7b).

In order to limit the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 .

Dane techniczne

AC control voltage [V]

230
Rated current [A]

25
Height [mm]

83
Mechanical durability (number of cycles)

100000
PKWIU

27.12.24.0

Rated voltage [V]

230
Width [mm]

17.85
Electrical endurance (number of cycles)

30000
Number of modules

1

Pozostałe dane techniczne

Rated operating voltage

230 ... 230 V
Kategoria użytkowania

7
Voltage type (operating voltage)

AC
Number of contacts as normally open contact

1
Max. incandescent lamp load

1900 W
Max. load fluorescent lamp (Duo circuit)

1990 VA
Slider for hand switch

Yes
Additional equipment possible

No

Rated operation current

25 A
Rated excitation voltage

230 ... 230 V
Voltage type (excitation voltage)

AC
Number of contacts as normally closed contact

0
Max. load fluorescent lamp

950 VA
Max. load fluorescent lamp (parallel compensated)

810 VA
Built-in depth

60 mm
Degree of protection (IP)

IP2X

Dane producenta

Producent

Hager Electro S.A.S.
Adres

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta
Ilość	1 szt.	108 szt.	2592 szt.
Waga (kg)	0,100	11,770	282,520
Szerokość (m)	0,080	0,310	0,800
Długość (m)	0,020	0,210	1,050
Głębokość (m)	0,090	0,360	1,200
