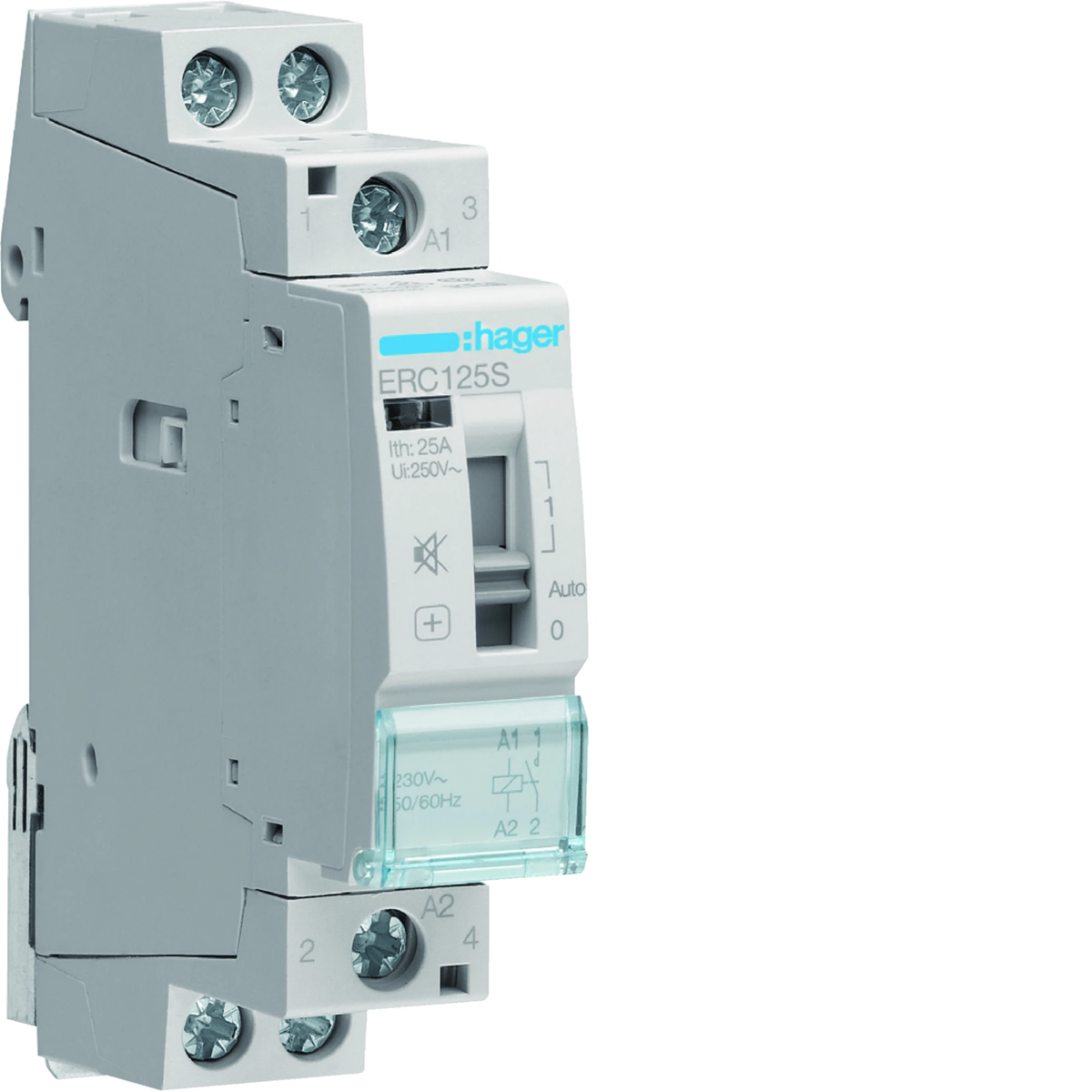

Silent contactor with manual control 230VAC 1NO 25A ERC125S

local index:
ATM018HAGE
Catalog No:
ERC125S
EAN code:
3250612230525
Manufacturer: HAGER
AC control voltage [V]: 230
Rated voltage [V]: 230
Rated current [A]: 25
Price:
45,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactors with a new design, ensuring noise-free operation throughout the life of the device. Available versions dedicated only to DC voltage control circuits (12 and 24 V DC).

Higher load capacity:
Devices marked with the mark have a reinforced structure that allows you to connect more light sources in the pore

Application:

  • incandescent lamps (traditional and halogen bulbs)
  • ​fluorescent lamps; linear and compact coils,
  • discharge lamps (high pressure sodium and mercury vapor lamps, metal halide lamps),
  • LED sources,
  • resistive loads (category AC- 7a),
  • inductive loads (category AC-7b).

In order to limit the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 .​

Technical data

  • AC control voltage [V]
    230
  • Rated current [A]
    25
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    100000
  • PKWIU
    27.12.24.0
  • Rated voltage [V]
    230
  • Width [mm]
    17.85
  • Electrical endurance (number of cycles)
    30000
  • Number of modules
    1

Other technical data

  • Rated operating voltage
    230 ... 230 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    1
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    Yes
  • Additional equipment possible
    No
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,109 0,110 12,390 320,360
Width (m) 0,018 0,080 0,315 0,800
Length (m) 0,083 0,025 0,215 1,050
Depth (m) 0,065 0,095 0,365 1,200
