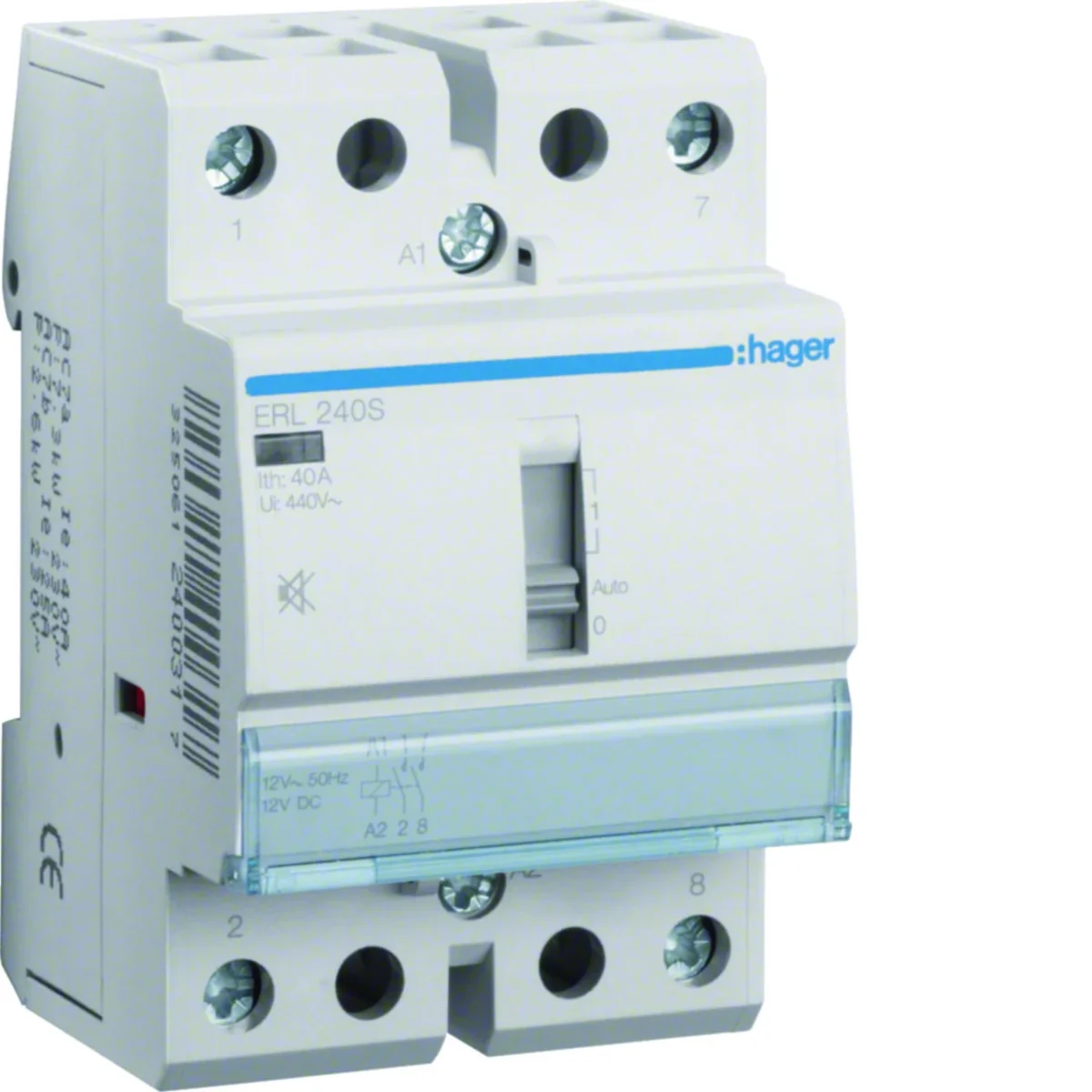

Silent contactor with manual control 12VAC/DC 2NO 40A ERL240S
local index:
ATM101HAGE
Catalog No:
ERL240S
EAN code:
3250612400317
Price:
90,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Silent contactor with manual control:
- 2NO
- category of use: AC-7a/b
Application:
- incandescent lamps (traditional and halogen bulbs)
- linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic ignitor
- discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
- resistive loads (category AC-7a)
- inductive loads (category AC-7b)
Technical data
-
Rated frequency [Hz]50
-
Number of contacts2NO 0NC
-
Number of poles2
-
Tightening torque [Nm]Coil: 2.5 ; Power: 3.5
-
Rated insulation voltage [V]440
-
power loss [W]11.4
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)30000
-
Operating temperature range [°C]from -10 to 50
-
Rated impulse voltage [kV]4
-
Maximum bulb power [W]4000
-
Reaction time when opening [ms]20
-
Control cable cross-section [mm²]1 - 6
-
Power loss per contact [W]3.2
-
Wire cross-section (cord) [mm²]4 - 16
-
PKWIU27.12.24.0
-
Depth [mm]60
-
Protection classII
-
Maximum input power [W]5W
-
AC control voltage [V]12
-
Rated current [A]40
-
Width [mm]54
-
Height [mm]85
-
Mechanical durability (number of cycles)1000000
-
Rated switching voltage [V]400
-
Number of modules3
-
Wire cross-section [mm²]1 to 10
-
Input power [W]5
-
Manual controlYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]4 -25
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load4000 W
-
Max. load fluorescent lamp (Duo circuit)3000 VA
-
Slider for hand switchYes
-
Additional equipment possibleYes
-
Rated operation current40 A
-
Rated excitation voltage12 ... 12 V
-
Voltage type (excitation voltage)AC/DC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp1900 VA
-
Max. load fluorescent lamp (parallel compensated)1300 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,329 | 1,320 | 16,220 | 414,280 |
| Width (m) | 0,054 | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,080 | 0,240 | 1,110 |
| Depth (m) | 0,065 | 0,230 | 0,360 | 1,200 |
