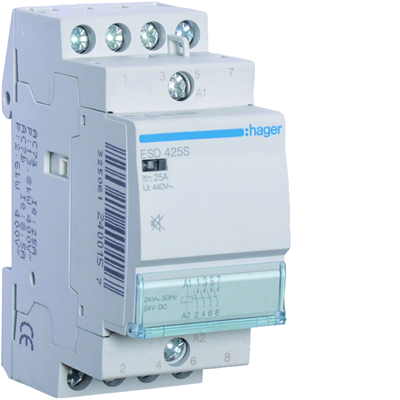

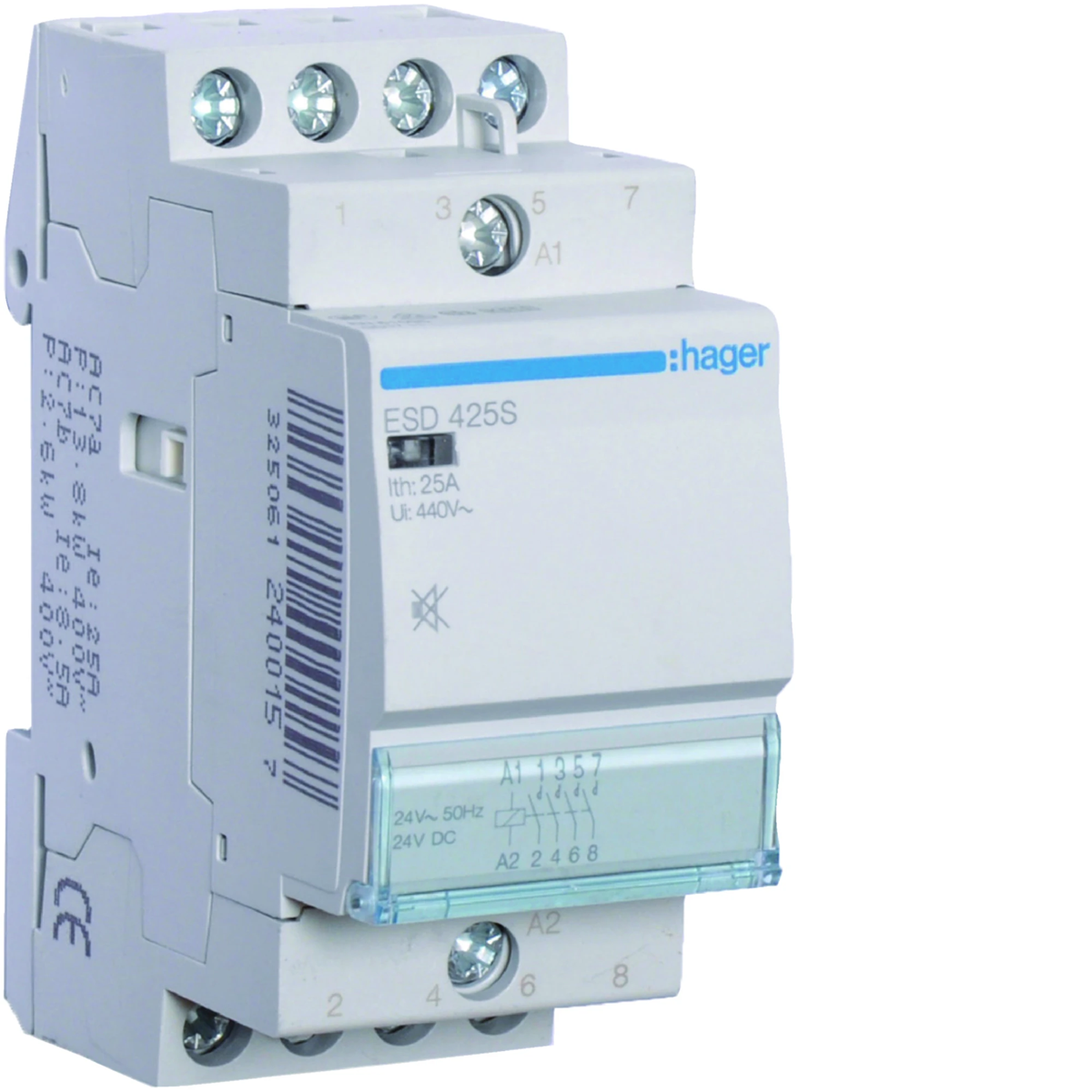

Silent contactor 4NO 25A 24V AC/DC ESD425S
local index:
ATM010HAGE
Catalog No:
ESD425S
EAN code:
3250612400157
Price:
65,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Silent contactor 4NO 25A 24V AC/DC
Technical data
-
Number of modules2
-
AC control voltage [V]24
-
Number of modules2
-
Number of contacts4NO 0NC
-
Rated current [A]25
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage24 ... 24 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,192 | 0,210 | 12,900 | 332,600 |
| Width (m) | 0,036 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,040 | 0,215 | 0,994 |
| Depth (m) | 0,065 | 0,100 | 0,360 | 1,200 |
