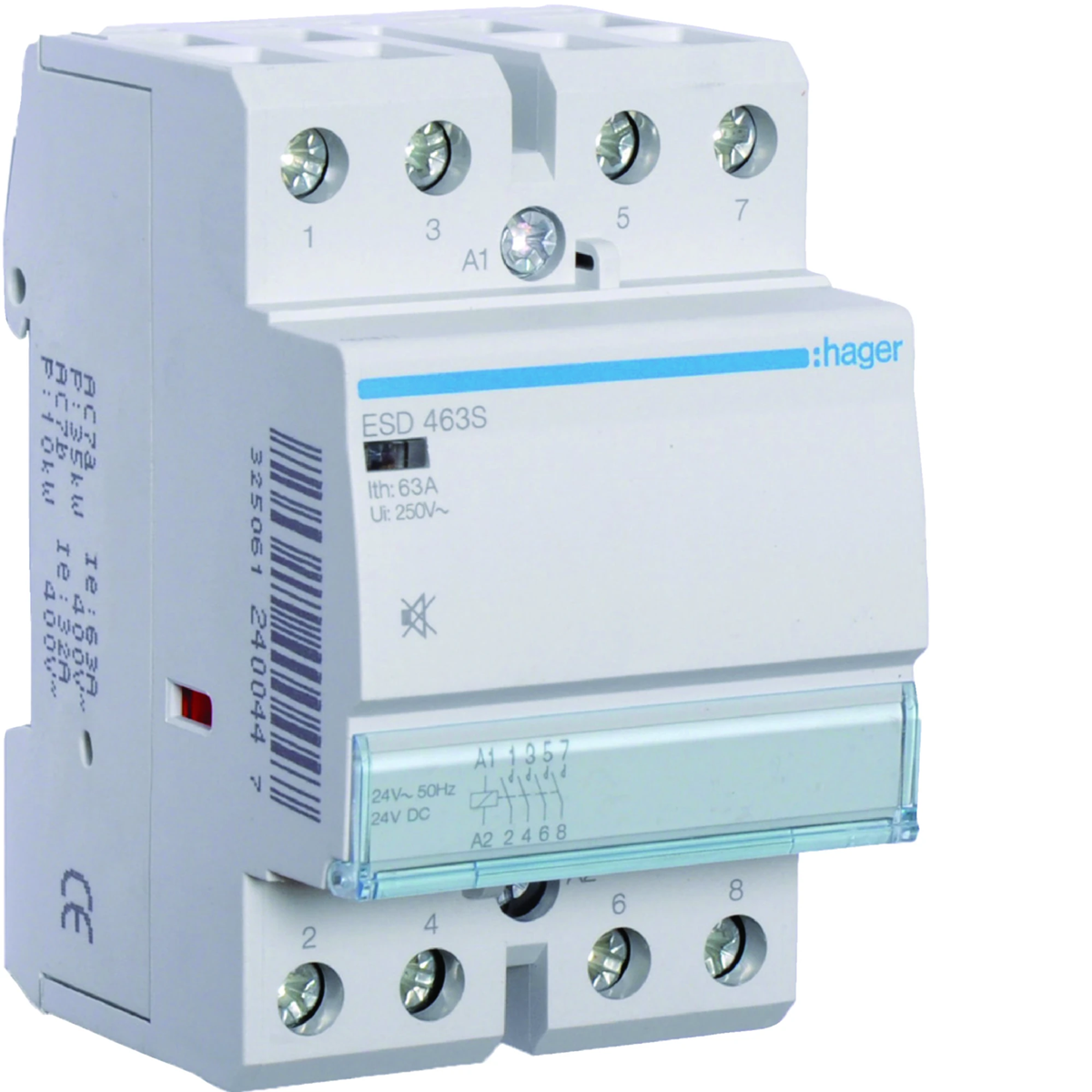

Silent contactor 24VAC/DC 4NO 63A ESD463S

Indice locale:
ATM065HAGE
Numero di catalogo:
ESD463S
Codice EAN:
3250612400447
Produttore: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 60
Number of contacts: 4NO 0NC
Prezzo:
151,01 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).

Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear

Dati tecnici

  • Rated frequency [Hz]
    50/60
  • Number of contacts
    4NO 0NC
  • AC control voltage [V]
    24
  • Rated current [A]
    63
  • Width [mm]
    54
  • Height [mm]
    85
  • Mechanical durability (number of cycles)
    1000000
  • Connection type
    With a screw
  • AC rated voltage [V]
    400
  • Depth [mm]
    60
  • Maximum input power [W]
    5
  • Rated insulation voltage [V]
    440
  • power loss [W]
    25
  • Working temperature [°C]
    -10 to 50
  • Electrical endurance (number of cycles)
    30000
  • Rated impulse voltage [kV]
    4
  • Number of modules
    3
  • PKWIU
    27.12.24.0

Altri dati tecnici

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    6500 W
  • Max. load fluorescent lamp (Duo circuit)
    4700 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    63 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    3000 VA
  • Max. load fluorescent lamp (parallel compensated)
    2100 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 1 pezzi 48 pezzi 1152 pezzi
Peso (kg) 0,348 0,370 18,355 463,520
Larghezza (m) 0,054 0,080 0,320 0,800
Lunghezza (m) 0,085 0,055 0,230 1,138
Profondità (m) 0,065 0,095 0,360 1,200
