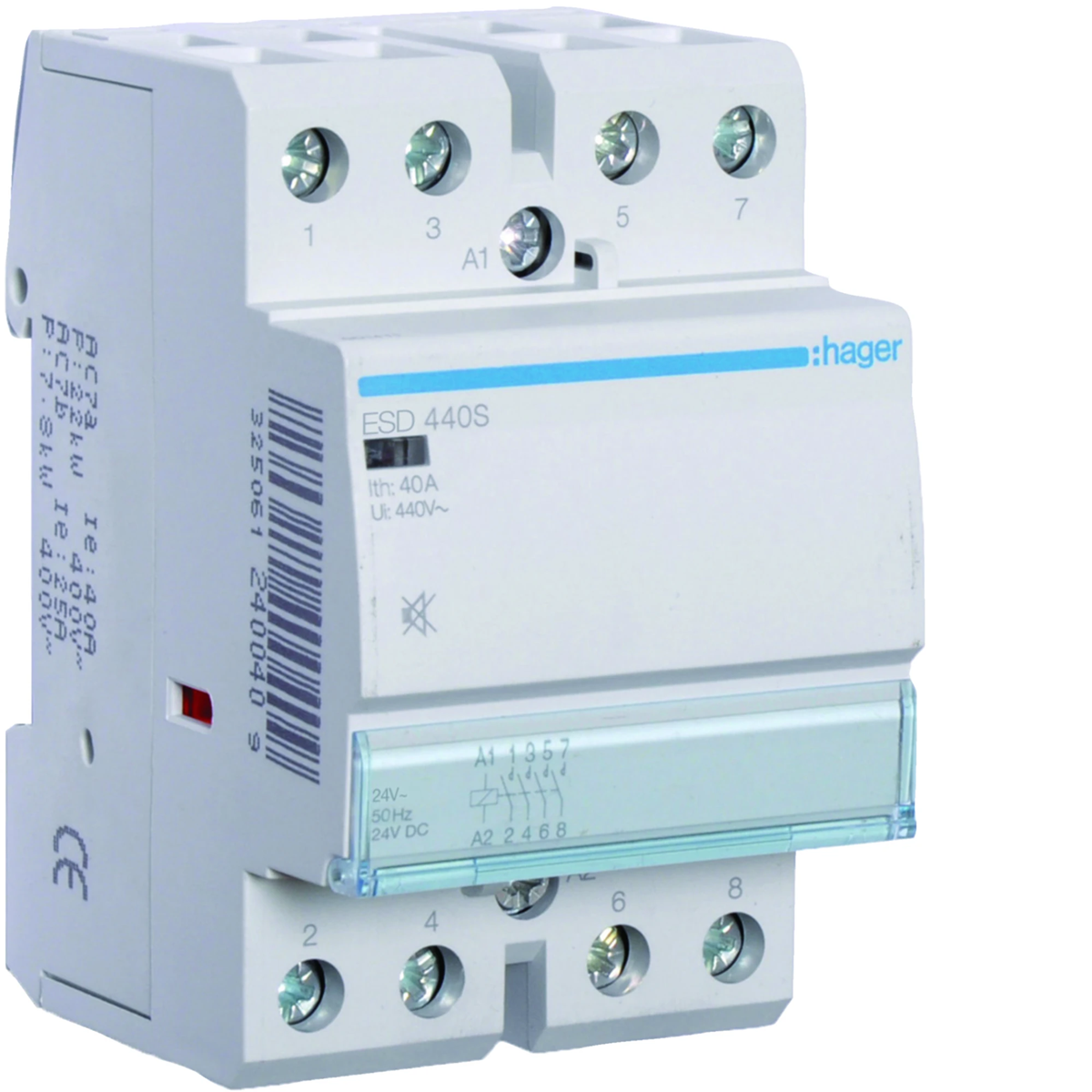

Silent contactor 24VAC/DC 4NO 40A ESD440S

local index:
ATM017HAGE
Catalog No:
ESD440S
EAN code:
3250612400416
Manufacturer: HAGER
Depth [mm]: 60
AC control voltage [V]: 24
Rated voltage [V]: 400
Price:
95,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactors with a new design, ensuring noise-free operation throughout the life of the device. Available versions dedicated only to DC voltage control circuits (12 and 24 V DC).

Higher load capacity:
Devices marked with the mark have a reinforced structure that allows you to connect more light sources in the pore

Application:

  • incandescent lamps (traditional and halogen bulbs)
  • ​fluorescent lamps; linear and compact coils,
  • discharge lamps (high pressure sodium and mercury vapor lamps, metal halide lamps),
  • LED sources,
  • resistive loads (category AC- 7a),
  • inductive loads (category AC-7b).

In order to limit the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 .​

Technical data

  • Depth [mm]
    60
  • Rated voltage [V]
    400
  • Width [mm]
    54
  • Electrical endurance (number of cycles)
    30000
  • Number of modules
    3
  • AC control voltage [V]
    24
  • Rated current [A]
    40
  • Height [mm]
    85
  • Mechanical durability (number of cycles)
    1000000
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    4000 W
  • Max. load fluorescent lamp (Duo circuit)
    3000 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    40 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    1900 VA
  • Max. load fluorescent lamp (parallel compensated)
    1300 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 4 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,338 1,480 18,200 461,800
Width (m) 0,054 0,095 0,315 0,800
Length (m) 0,085 0,080 0,214 1,006
Depth (m) 0,065 0,230 0,373 1,200
