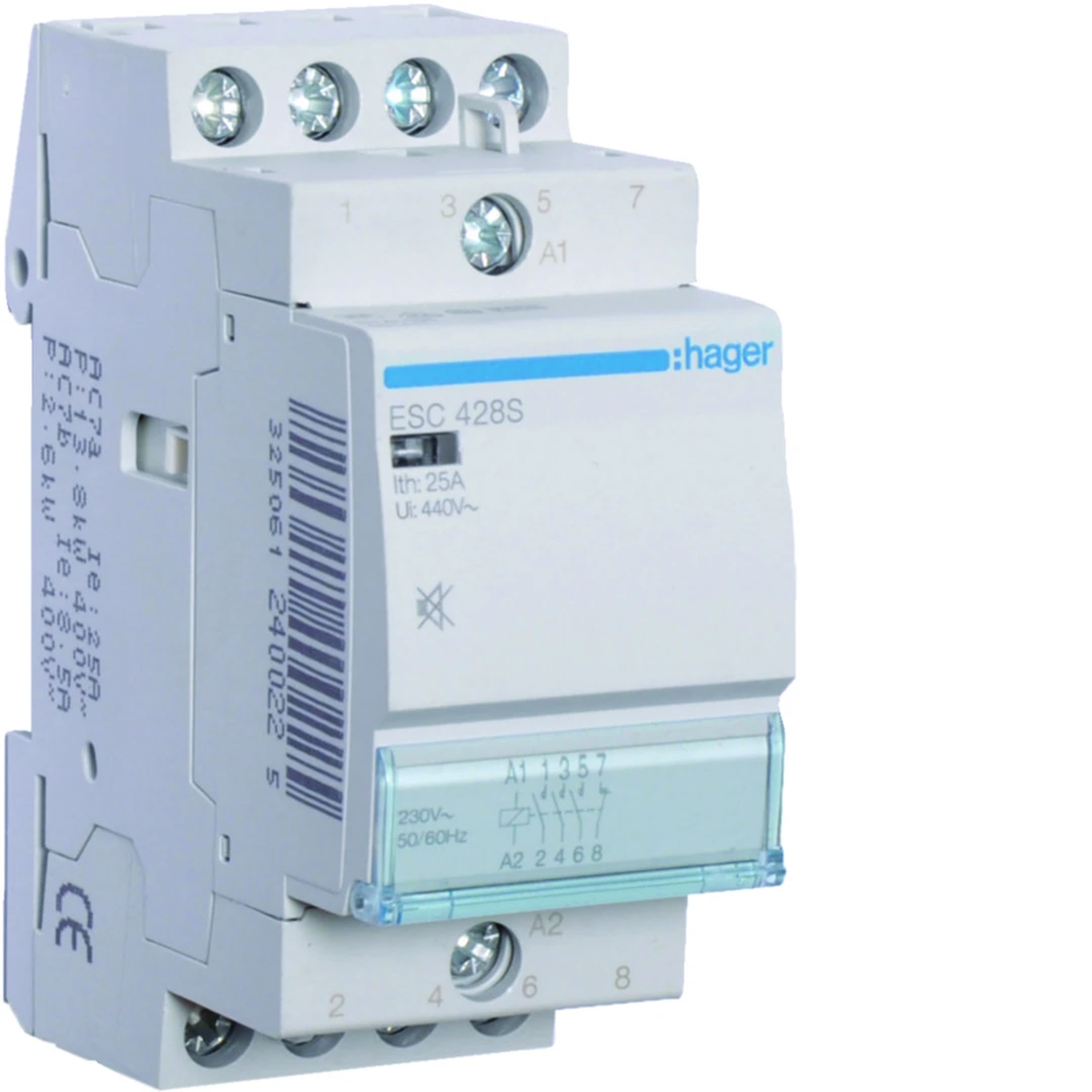

Silent contactor 230VAC 3NO+1NC 25A ESC428S

local index:
ATA007HAGE
Catalog No:
ESC428S
EAN code:
3250612400225
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 60
Number of contacts: 3NO 1NC
Price:
66,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).

Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of contacts
    3NO 1NC
  • AC control voltage [V]
    230
  • Rated current [A]
    25
  • Power dissipation [W]
    7.3
  • Working temperature [°C]
    -10 to 50
  • Electrical endurance (number of cycles)
    30000
  • Rated impulse voltage [kV]
    4
  • Number of modules
    2
  • PKWIU
    27.12.24.0
  • Depth [mm]
    60
  • Maximum input power [VA]
    2.8
  • Rated insulation voltage [V]
    440
  • Contact type
    3NO + 1NC
  • Width [mm]
    35.85
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    1000000
  • Connection type
    With a screw
  • AC rated voltage [V]
    400

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    3
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    1
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,200 0,215 13,205 339,920
Width (m) 0,036 0,080 0,315 0,800
Length (m) 0,083 0,040 0,215 1,006
Depth (m) 0,065 0,095 0,360 1,200
