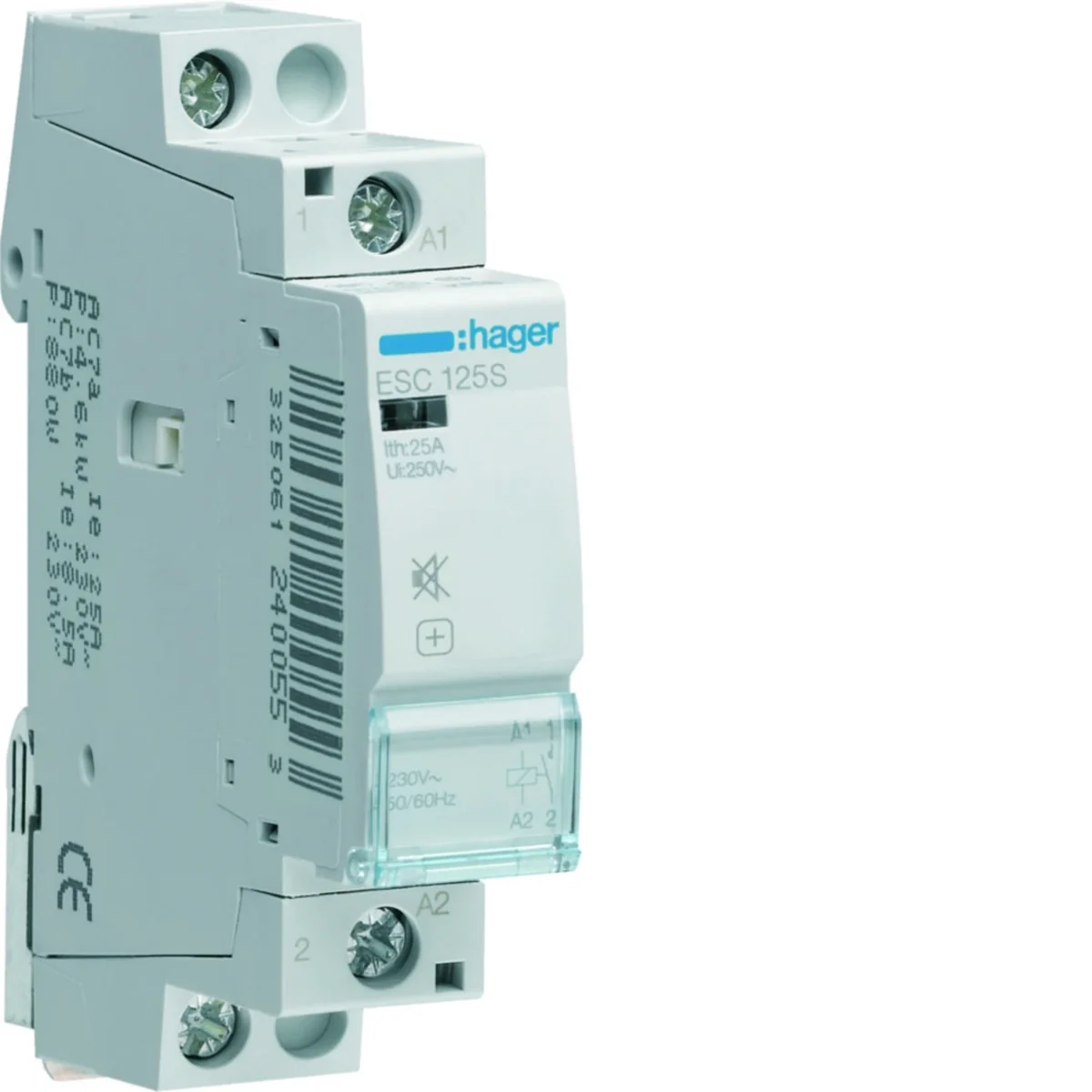

Silent contactor 230VAC 1NO 25A ESC125S

local index:
ATM107HAGE
Catalog No:
ESC125S
EAN code:
3250612230617
Manufacturer: HAGER
Rated frequency [Hz]: 60
Depth [mm]: 60
Maximum input power [VA]: 2.2
Price:
53,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactor:

  • 1NO
  • usage category: AC-7a/b

Application:

  • incandescent lamps (traditional and halogen bulbs)
  • linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic
  • discharge lamps (high pressure sodium and mercury vapor lamps, metal halide lamps, compensated or uncompensated),
  • resistive loads (category AC-7a)
  • inductive loads ( category AC-7b)

Technical data

  • Rated frequency [Hz]
    60
  • Maximum input power [VA]
    2.2
  • AC control voltage [V]
    230
  • Rated current [A]
    25
  • power loss [W]
    3.7
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    30000
  • Operating temperature range [°C]
    from -10 to 50
  • Rated impulse voltage [kV]
    4
  • Maximum bulb power [W]
    1900
  • Reaction time when opening [ms]
    15
  • Control cable cross-section [mm²]
    1 - 6
  • Power loss per contact [W]
    1.5
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    27.12.24.0
  • Depth [mm]
    60
  • Tightening torque [Nm]
    1.2
  • Rated insulation voltage [V]
    250
  • Contact type
    1 no
  • Width [mm]
    17.85
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    100000
  • Rated switching voltage [V]
    230
  • Number of modules
    1
  • Wire cross-section [mm²]
    1 to 10
  • Input power [VA]
    2.2
  • Manual control
    NO
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    1 - 10

Other technical data

  • Rated operating voltage
    230 ... 230 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    1
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    No
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,109 0,110 12,295 318,080
Width (m) 0,018 0,080 0,320 0,800
Length (m) 0,083 0,025 0,215 1,200
Depth (m) 0,065 0,095 0,360 1,200
