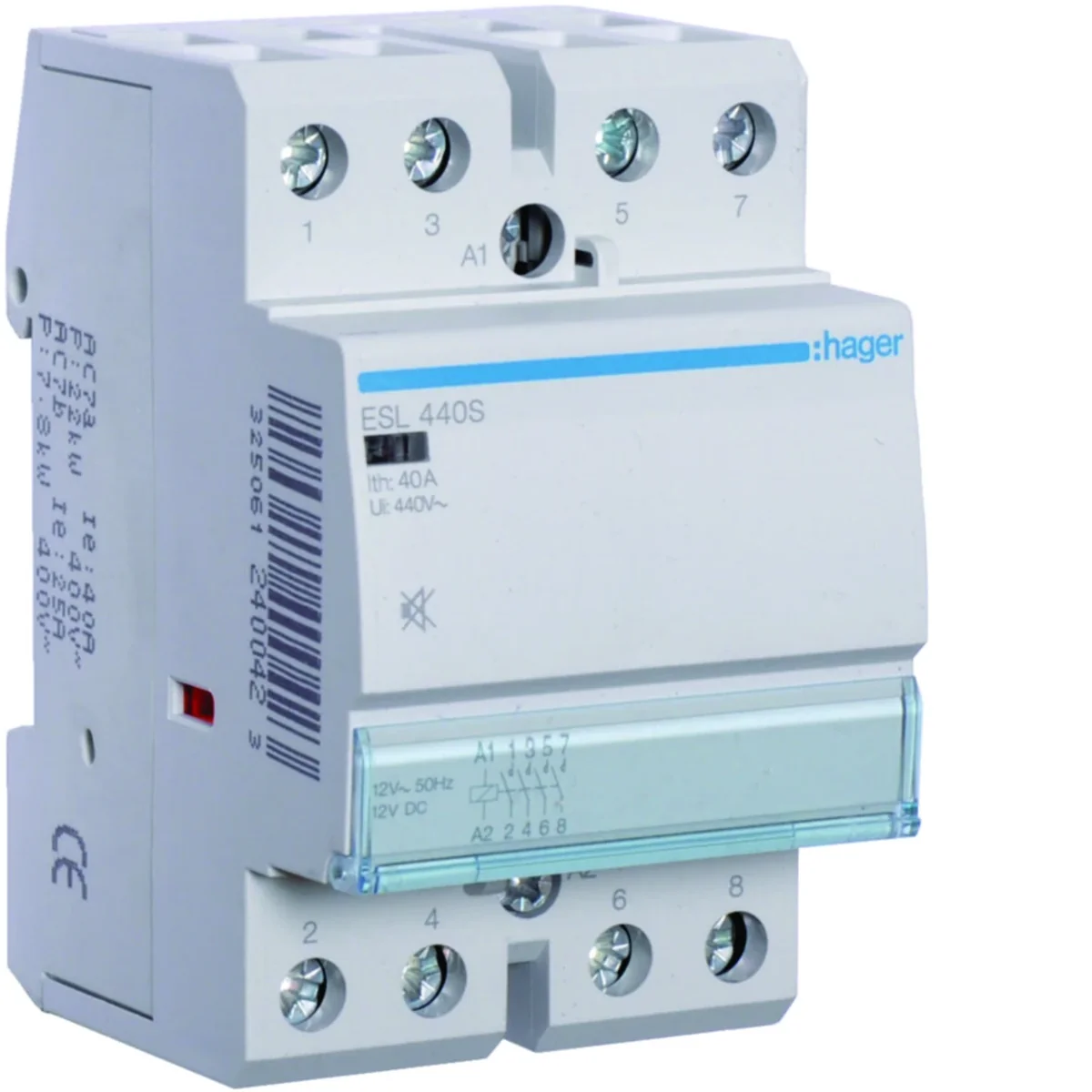

Silent contactor 12VAC/DC 4NO 40A ESL440S

local index:
ATM123HAGE
Catalog No:
ESL440S
EAN code:
3250612400423
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 60
Number of contacts: 4NO 0NC
Price:
90,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactor:

  • 4NO
  • usage category: AC-7a/b

Application:

  • incandescent lamps (traditional and halogen bulbs)
  • linear and compact fluorescent lamps (energy saving), compensated or uncompensated, with traditional or electronic
  • discharge lamps (high pressure sodium and mercury vapor lamps, metal halide lamps, compensated or uncompensated),
  • resistive loads (category AC-7a)
  • inductive loads ( category AC-7b)

Technical data

  • Rated frequency [Hz]
    50
  • Number of contacts
    4NO 0NC
  • Number of poles
    4
  • Tightening torque [Nm]
    Coil: 2.5 ; Power: 3.5
  • Rated insulation voltage [V]
    440
  • power loss [W]
    17.8
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    30000
  • Operating temperature range [°C]
    from -10 to 50
  • Rated impulse voltage [kV]
    4
  • Maximum bulb power [W]
    4000
  • Reaction time when opening [ms]
    20
  • Control cable cross-section [mm²]
    1 - 6
  • Power loss per contact [W]
    3.2
  • Wire cross-section (cord) [mm²]
    4 - 16
  • PKWIU
    27.12.24.0
  • Depth [mm]
    60
  • Protection class
    II
  • Maximum input power [W]
    5W
  • AC control voltage [V]
    12
  • Rated current [A]
    40
  • Width [mm]
    54
  • Height [mm]
    85
  • Mechanical durability (number of cycles)
    1000000
  • Rated switching voltage [V]
    400
  • Number of modules
    3
  • Wire cross-section [mm²]
    1 to 10
  • Input power [W]
    5
  • Manual control
    NO
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    4 -25

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    4000 W
  • Max. load fluorescent lamp (Duo circuit)
    3000 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    40 A
  • Rated excitation voltage
    12 ... 12 V
  • Voltage type (excitation voltage)
    AC/DC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    1900 VA
  • Max. load fluorescent lamp (parallel compensated)
    1300 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,367 0,368 18,104 459,496
Width (m) 0,054 0,080 0,315 0,800
Length (m) 0,085 0,056 0,216 1,014
Depth (m) 0,065 0,095 0,371 1,200
