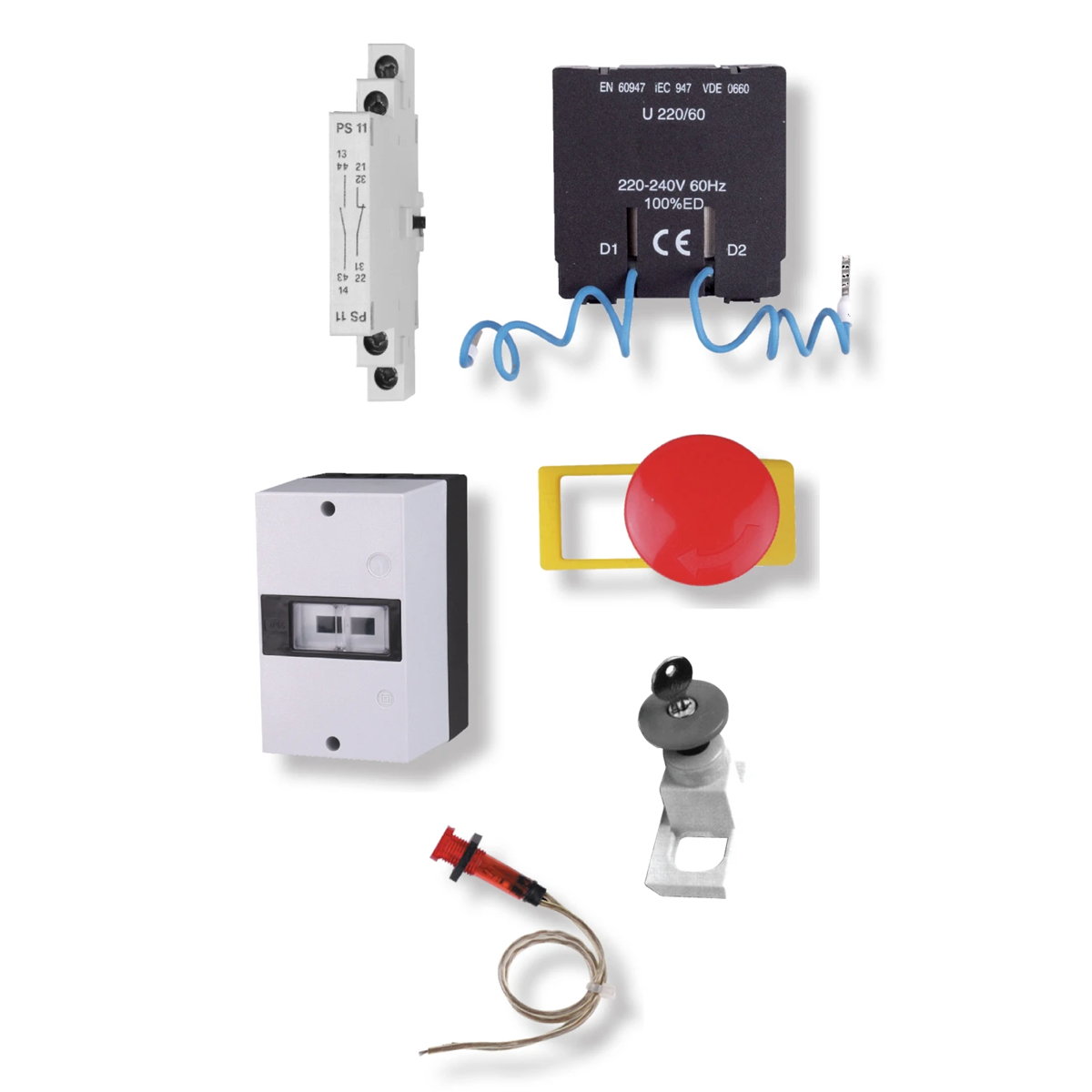

Side auxiliary contact HS11 004600173

local index:
ATC003ETIP
Catalog No:
004600173
EAN code:
3838895576174
Manufacturer: ETI POLAM
Tightening torque [Nm]: 1Nm
Terminal capacity: 0.75 - 2.5 mm2
Thermal current [A]: 5
Price:
11,46 €
gross / pcs.
(including VAT 23%)
286,50 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - HS... auxiliary contacts are used for remote signaling of circuit breaker activation, switching on the power reserve or control circuit. Auxiliary contacts are available in various contact arrangements, which are listed in the table below. They are mounted on the right side of the MS18 circuit breaker.

Technical data

  • Tightening torque [Nm]
    1Nm
  • Thermal current [A]
    5
  • Weight [g]
    40
  • Terminal capacity
    0.75 - 2.5 mm2
  • Contact
    NO+NC
  • PKWIU
    27.12.23.0

Other technical data

  • Number of contacts as normally open contact
    1
  • Rated operation current Ie at AC-15, 230 V
    1.5 A
  • Mounting method
    Side mounting
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
