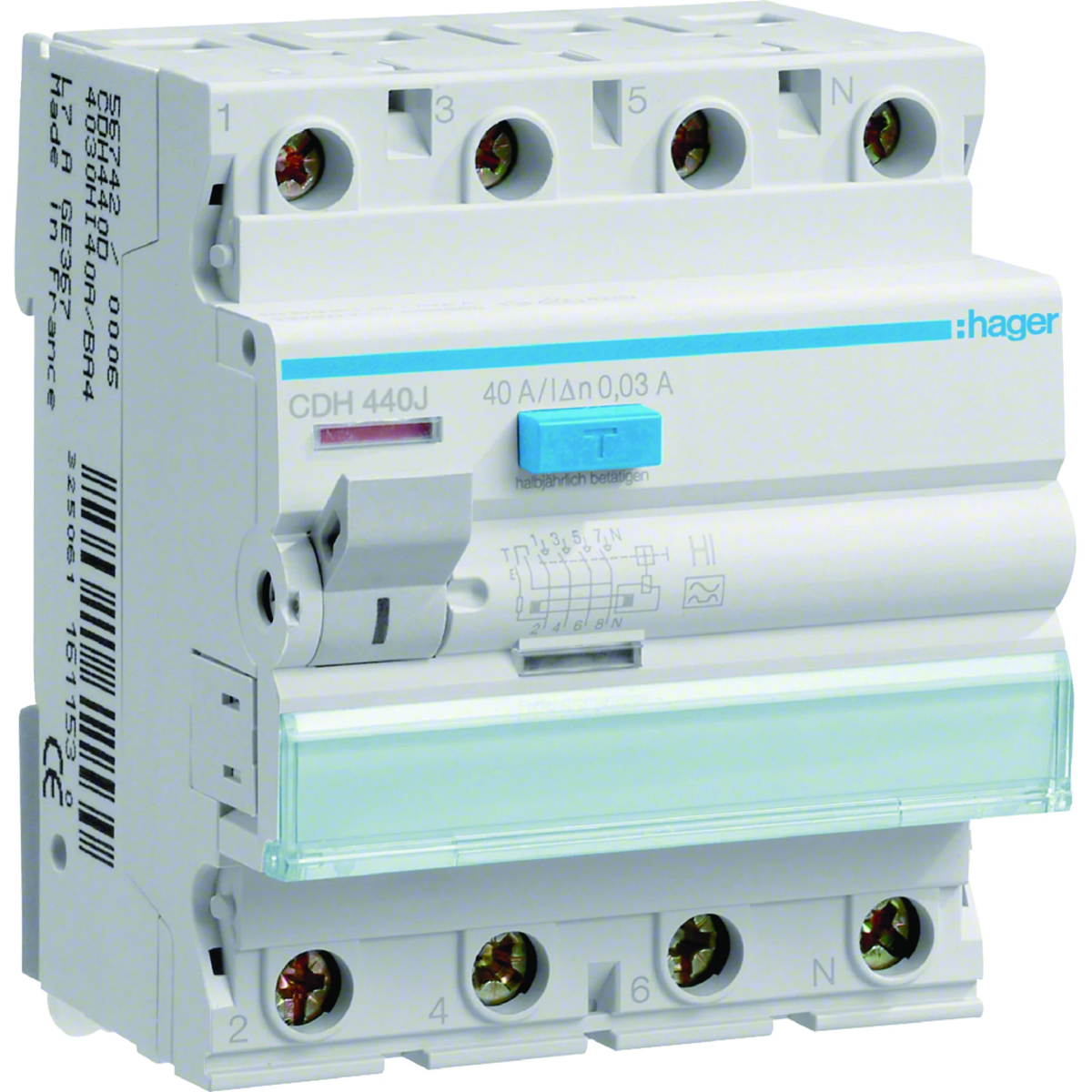

Short delay residual current circuit breaker CDH440J
local index:
ARP011HAGE
Catalog No:
CDH440J
EAN code:
3250611619789
Price:
181,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Short delay residual current circuit breaker
Technical data
-
Depth [mm]70
-
Number of poles4
-
Rated insulation voltage [V]900
-
Rated current [A]40
-
Width [mm]70
-
Height [mm]83
-
PKWIU27.12.23.0
-
Number of modules4
-
Rated voltage [V]230
-
Differential current [mA]thirty
-
Power dissipation [W]11.1
-
Trigger typeAND
-
Number of modules4
Other technical data
-
Number of poles4
-
Rated current40 A
-
Rated insulation voltage Ui500 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)6 kA
-
With interlocking deviceNo
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 40 °C
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Rated voltage400 V
-
Rated fault current30 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeOther
-
Short-time delayed trippingNo
-
Surge current capacity3 kA
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,378 | 0,379 | 13,644 | 327,456 |
| Width (m) | 0,070 | 0,080 | 0,316 | 0,800 |
| Length (m) | 0,085 | 0,074 | 0,234 | 1,110 |
| Depth (m) | 0,073 | 0,093 | 0,366 | 1,200 |
