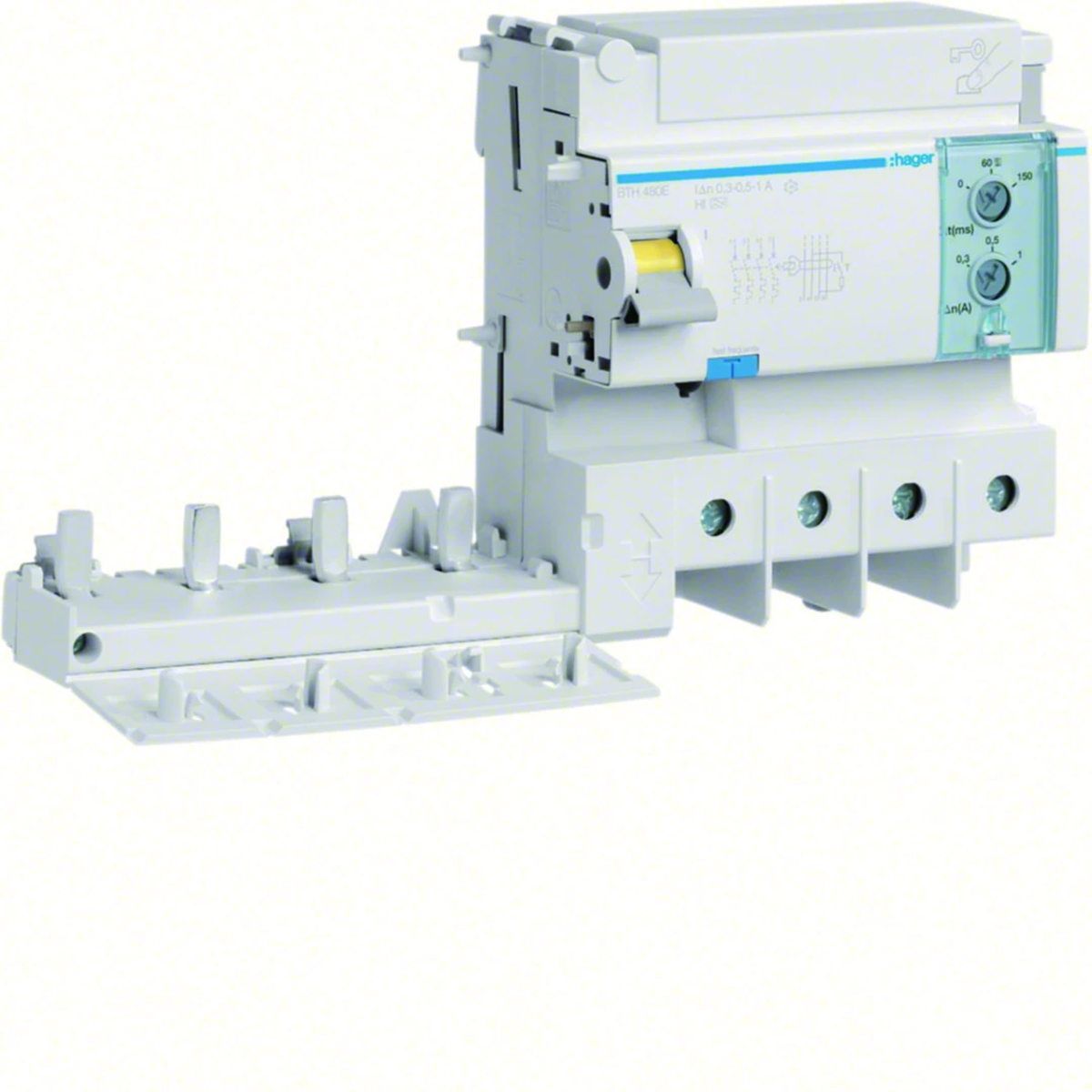

Short Delay Residual Current Block for MCB HMxxxx 3P+N 125A/0.3-1A Type A-HI BTH480E
Lokaler Index:
ARB096HAGE
Katalognummer:
BTH480E
EAN-Code:
3250611500087
Preis:
381,84 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Short delay residual current device for HMxxxx series MCBs.
- 3P+N
- 125A/0.3-1A
- type A-HI
Technische Daten
-
Rated frequency [Hz]50
-
Number of poles4
-
Rated insulation voltage [V]500
-
Rated current [A]125
-
Width [mm]213
-
Electrical endurance (number of cycles)1000
-
Operating temperature range [°C]from -25 to 60
-
Number of modules6
-
Rated current at 30°C [A]125
-
Rated current at 50°C [A]112.4
-
Rated current at 70°C [A]99.4
-
RCD typeHI
-
Wire cross-section (cord) [mm²]10 - 50
-
PKWIU27.12.23.0
-
Depth [mm]69
-
Tightening torque [Nm]3.5
-
Differential current [mA]300 500 1000
-
power loss [W]15
-
Height [mm]103
-
Mechanical durability (number of cycles)7000
-
Rated switching voltage [V]230 400
-
Rated current at 20°C [A]125
-
Rated current at 40°C [A]118.9
-
Rated current at 60°C [A]105.6
-
storage temperature [°C]from -25 to 70
-
Rated surge voltage [V]6000
-
Conductor cross-section (wire) [mm²]10 - 70
Weitere technische Daten
-
Nominal voltage240 ... 415 V
-
Rated fault current adjustableYes
-
Max. delay time150 ms
-
Number of poles4
-
Rated insulation voltage Ui500 V
-
Connectable conductor cross section solid-core10 ... 70 mm²
-
Anti-nuisance tripping versionYes
-
Pollution degree3
-
Nominal current125 A
-
Rated fault current0.3 ... 1 A
-
Delay adjustableYes
-
Frequency50 Hz
-
Rated impulse withstand voltage Uimp6 kV
-
Connectable conductor cross section multi-wired10 ... 50 mm²
-
Degree of protection (IP)IP20
-
Ambient temperature during operating-25 ... 60 °C
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 8 stk. | 192 stk. |
| Gewicht (kg) | 0,800 | 6,400 | 153,600 |
| Breite (m) | 0,130 | 0,310 | 0,800 |
| Länge (m) | 0,090 | 0,240 | 1,120 |
| Tiefe (m) | 0,230 | 0,360 | 1,200 |
