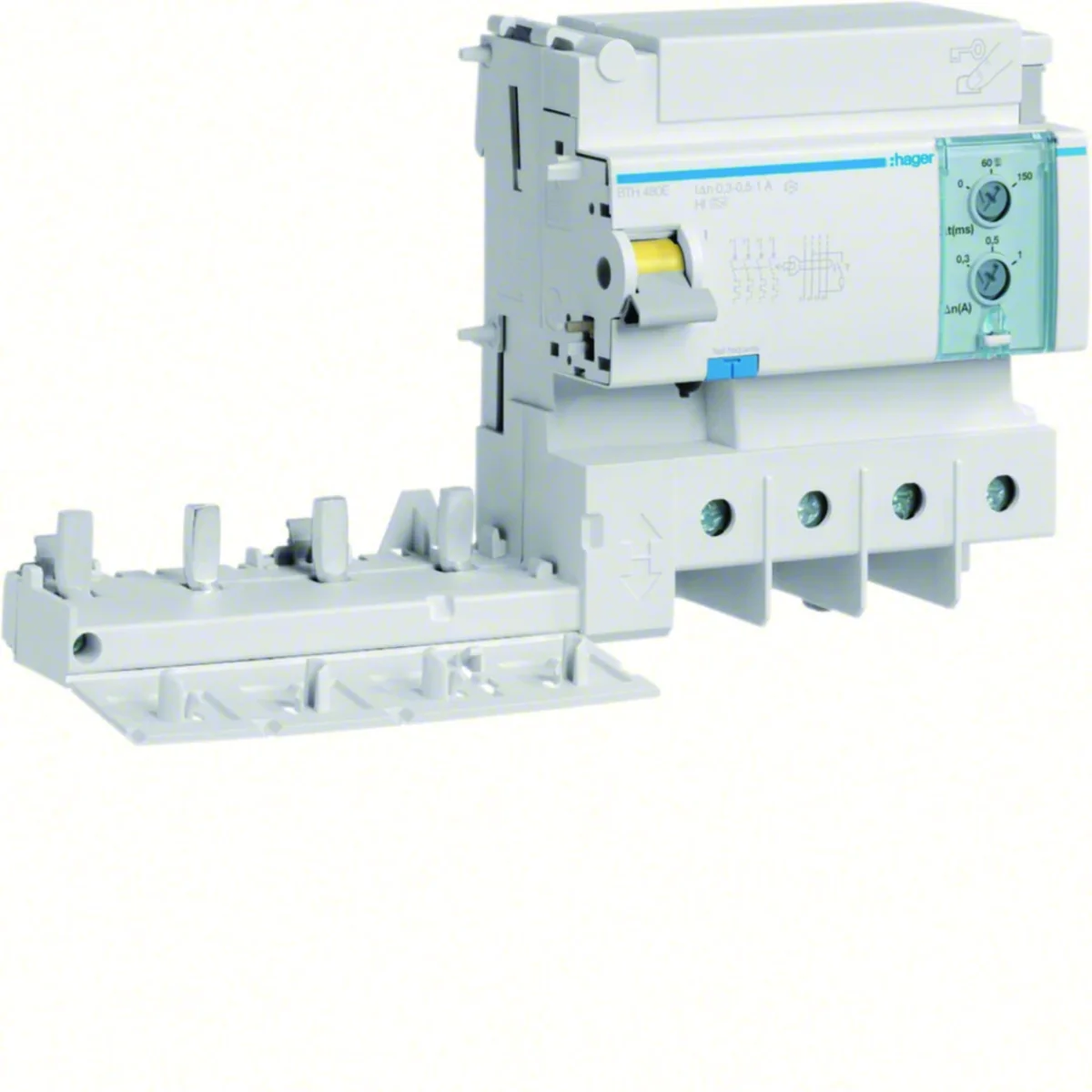

Short Delay Residual Current Block for MCB HMxxxx 3P+N 125A/0.3-1A Type A-HI BTH480E

local index:
ARB096HAGE
Catalog No:
BTH480E
EAN code:
3250611500087
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 69
Number of poles: 4
Price:
358,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

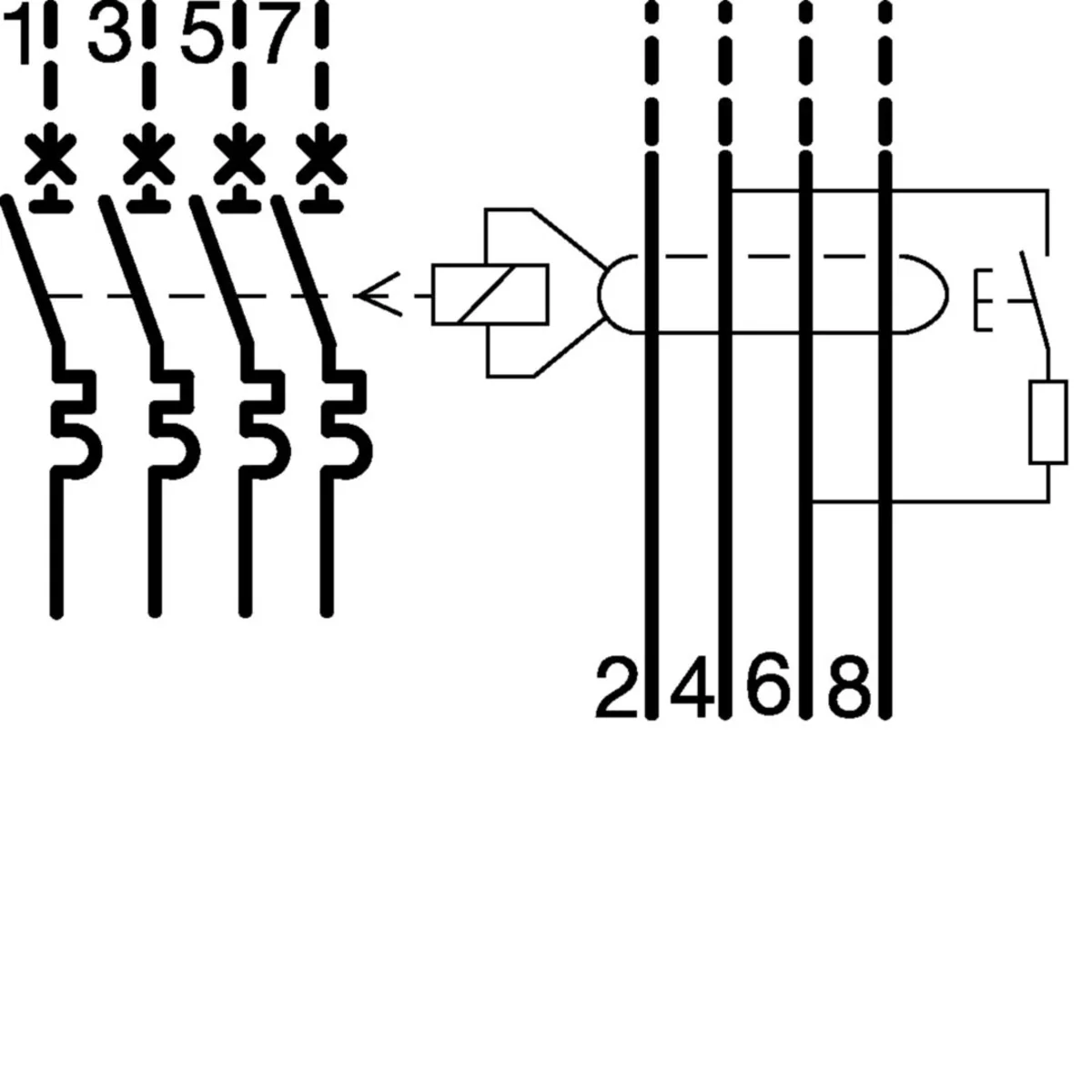

Product description

Short delay residual current device for HMxxxx series MCBs.

  • 3P+N
  • 125A/0.3-1A
  • type A-HI

Technical data

  • Rated frequency [Hz]
    50
  • Number of poles
    4
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    125
  • Width [mm]
    213
  • Electrical endurance (number of cycles)
    1000
  • Operating temperature range [°C]
    from -25 to 60
  • Number of modules
    6
  • Rated current at 30°C [A]
    125
  • Rated current at 50°C [A]
    112.4
  • Rated current at 70°C [A]
    99.4
  • RCD type
    HI
  • Wire cross-section (cord) [mm²]
    10 - 50
  • PKWIU
    27.12.23.0
  • Depth [mm]
    69
  • Tightening torque [Nm]
    3.5
  • Differential current [mA]
    300 500 1000
  • power loss [W]
    15
  • Height [mm]
    103
  • Mechanical durability (number of cycles)
    7000
  • Rated switching voltage [V]
    230 400
  • Rated current at 20°C [A]
    125
  • Rated current at 40°C [A]
    118.9
  • Rated current at 60°C [A]
    105.6
  • storage temperature [°C]
    from -25 to 70
  • Rated surge voltage [V]
    6000
  • Conductor cross-section (wire) [mm²]
    10 - 70

Other technical data

  • Nominal voltage
    240 ... 415 V
  • Rated fault current adjustable
    Yes
  • Max. delay time
    150 ms
  • Number of poles
    4
  • Rated insulation voltage Ui
    500 V
  • Connectable conductor cross section solid-core
    10 ... 70 mm²
  • Anti-nuisance tripping version
    Yes
  • Pollution degree
    3
  • Nominal current
    125 A
  • Rated fault current
    0.3 ... 1 A
  • Delay adjustable
    Yes
  • Frequency
    50 Hz
  • Rated impulse withstand voltage Uimp
    6 kV
  • Connectable conductor cross section multi-wired
    10 ... 50 mm²
  • Degree of protection (IP)
    IP20
  • Ambient temperature during operating
    -25 ... 60 °C

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 8 pcs. 192 pcs.
Weight (kg) 0,800 0,890 7,495 202,880
Width (m) 0,213 0,135 0,310 0,800
Length (m) 0,103 0,090 0,240 1,126
Depth (m) 0,075 0,235 0,365 1,200
