SERIES 22 63A 4 pole modular contactor 226402304310PAS

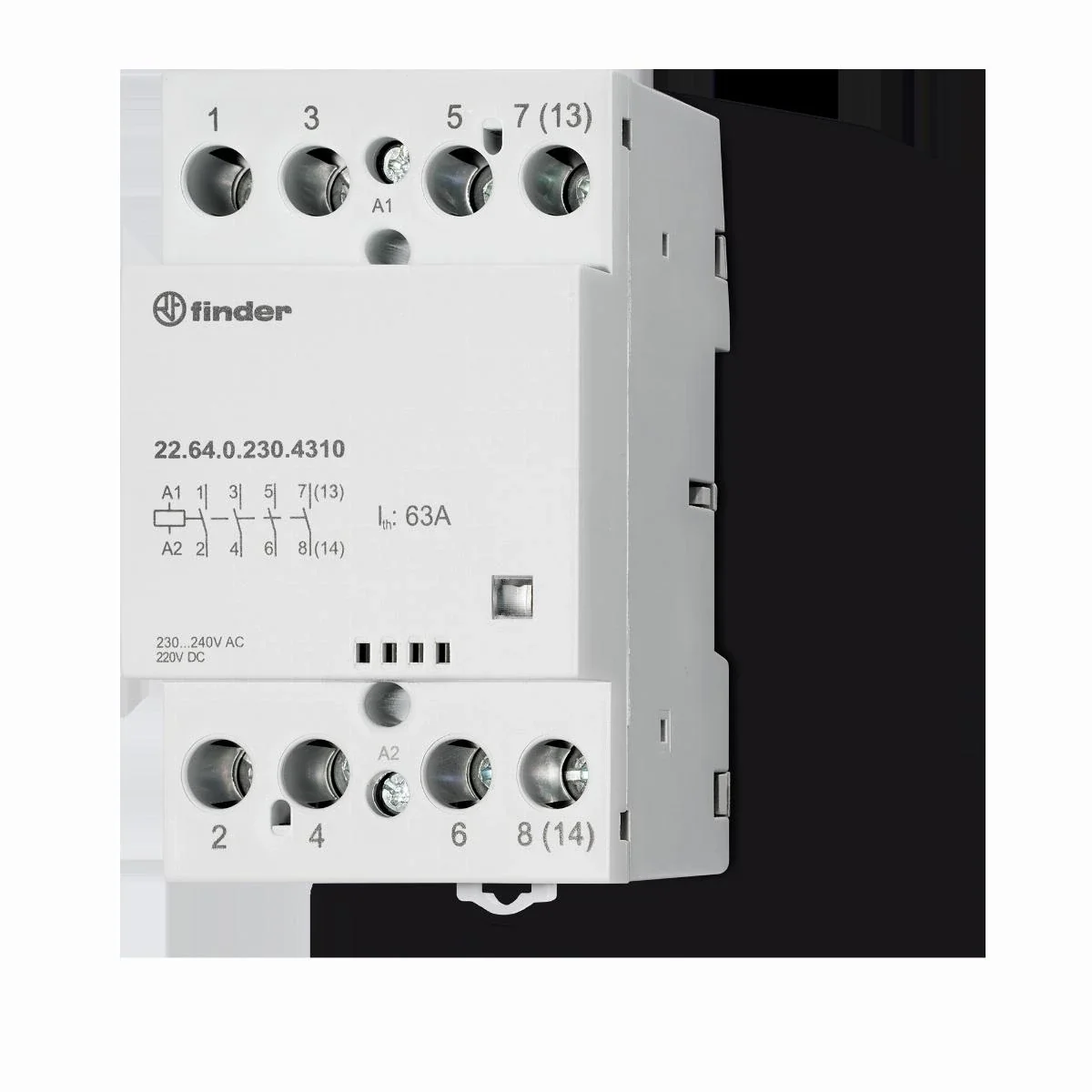

Modular contactor 63 A - 4 poles of the 22 series, from the manufacturer FINDER. Product part number is 22.64.0.230.4310PAS.

• Z and R contact with 3 mm gap, double contact gap.
• Continuous operation possible for coil and contacts.
• AC/DC power supply (with protective varistor).
• Safe separation (increased insulation) between coil and contacts.
• Mechanical indicator as standard.
• Auxiliary contacts according to EN 60947-5-1 (mechanically coupled contacts).
• Contact material AgSnO2.
< li>Compliant with EN 61095: 2009.
• For mounting on 35mm DIN rail (EN 60715).
• Particularly designed for high currentsó 240A switching capacity.
• Number of contacts: 4 CO, (or 3 NO + 1 CO or 2 NO + 2 CO) ≥ 3 mm.
• Max. switching capacity for AC1 / AC-7a (for 1 contact at 400 V): 24000 VA.
• Rated current for AC3 / AC-7b (400 V): 30 A.
• 3-phase motor load. (400 - 440 V AC): 15 kW.
• Rated current for AC-5a (for 1 contact at 250 V): 32 A.
• Permissible load :
  • 230V incandescent/halogen [W]: 5000.
  • fluorescent lamps with stat. electronic [W]: 1500.
  • fluorescent lamps with stat. electromechanical [W]: 2000.
  • CFL [W]: 1500.
  • 230V LED [W]: 1500.
  • NN halogen or LED with stat. electron. [W]: 1500.
  • NN halogen or LED with stat. electromechanical [W]: 2000.
• Coil data:
  • Rated voltage (UN): 12 - 24 - 110…120 (110V DC) - 230…240 (220 V DC).
  • AC/DC power consumption: 6VA (50 Hz)/W.
  • Supply voltage range: (0.85… 1.1)UN DC/AC (50/60 Hz).
  • Backup voltage: 0.85 UN DC/AC (50/60 Hz).
  • Drop-out voltage: 0.2 UN DC/AC (50/60 Hz).
• Coil-contact insulation strength (1.2/50 µs) : 6 kV.
