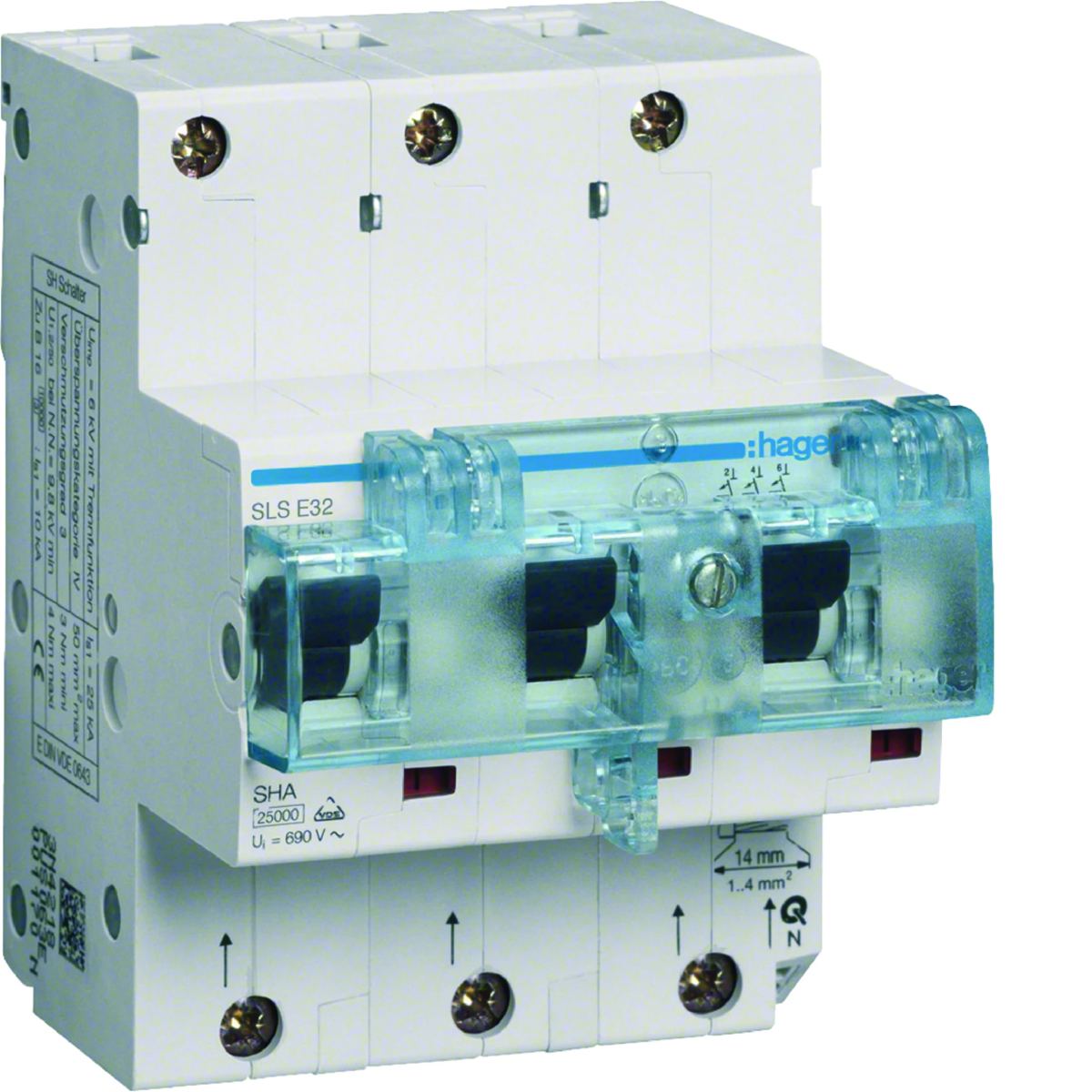

Selector switch SLS 32A 3pole fuse E HTN332E

local index:
ABS049HAGE
Catalog No:
HTN332E
EAN code:
3250613303327
Manufacturer: HAGER
Characteristic: E
Depth [mm]: 85
Number of modules: 4.5
Price:
268,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Selector switch SLS 32A 3pole fuse E

Technical data

  • Characteristic
    E
  • Number of modules
    4.5
  • Rated insulation voltage [V]
    690
  • Power dissipation [W]
    13.8
  • Height [mm]
    110
  • Number of modules
    4.5
  • Depth [mm]
    85
  • Number of poles
    3
  • Rated current [A]
    32
  • Width [mm]
    81
  • Rated short-circuit breaking capacity [kA]
    25
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    E
  • Rated current
    32 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    3
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    DIN rail

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 8 pcs. 192 pcs.
Weight (kg) 0,940 1,005 8,464 226,136
Width (m) 0,081 0,153 0,318 0,800
Length (m) 0,110 0,084 0,216 1,014
Depth (m) 0,089 0,124 0,379 1,200
