Selector switch SLS 25A 3pole fuse E HTN325E
local index:
ABS054HAGE
Catalog No:
HTN325E
EAN code:
3250613303310
Price:
262,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

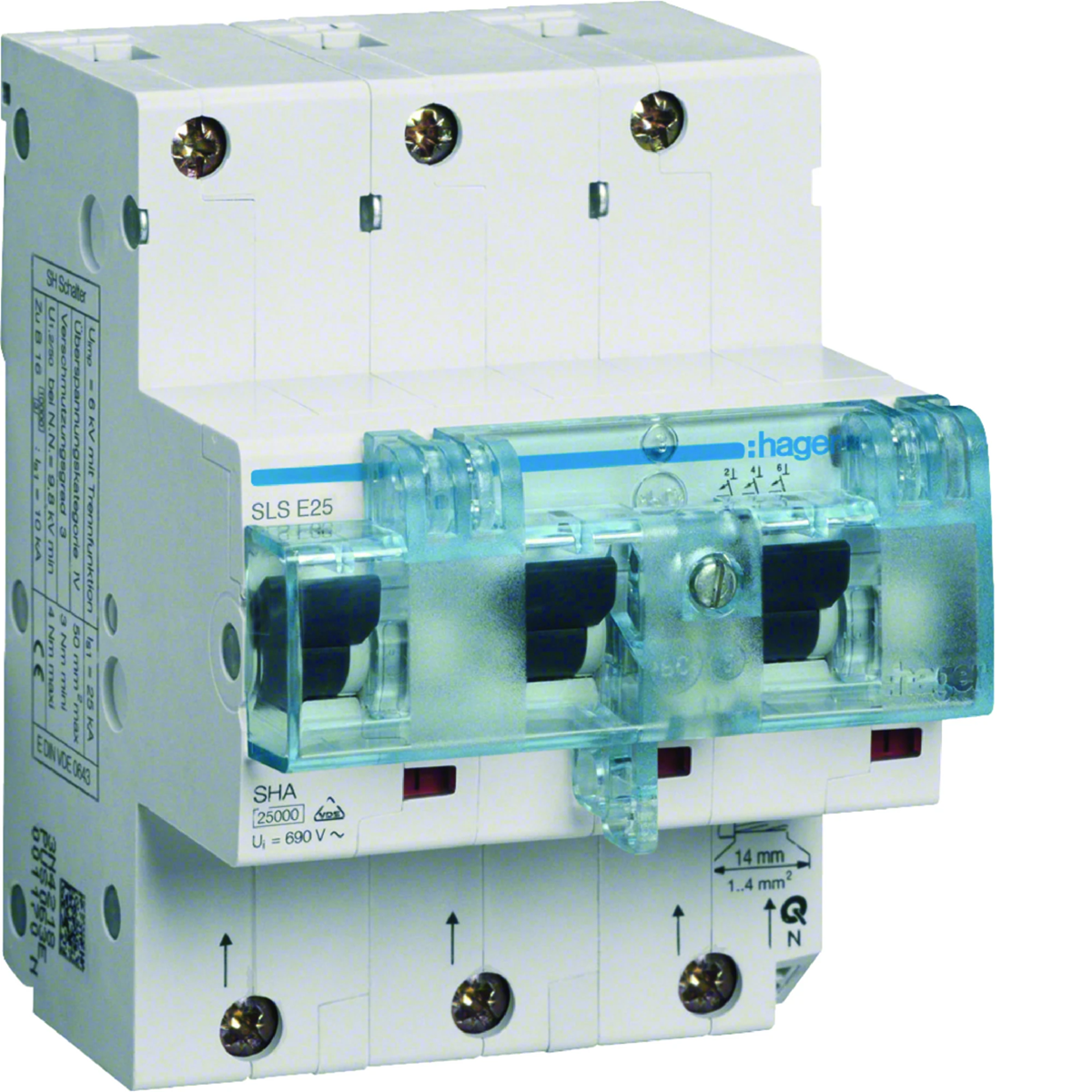

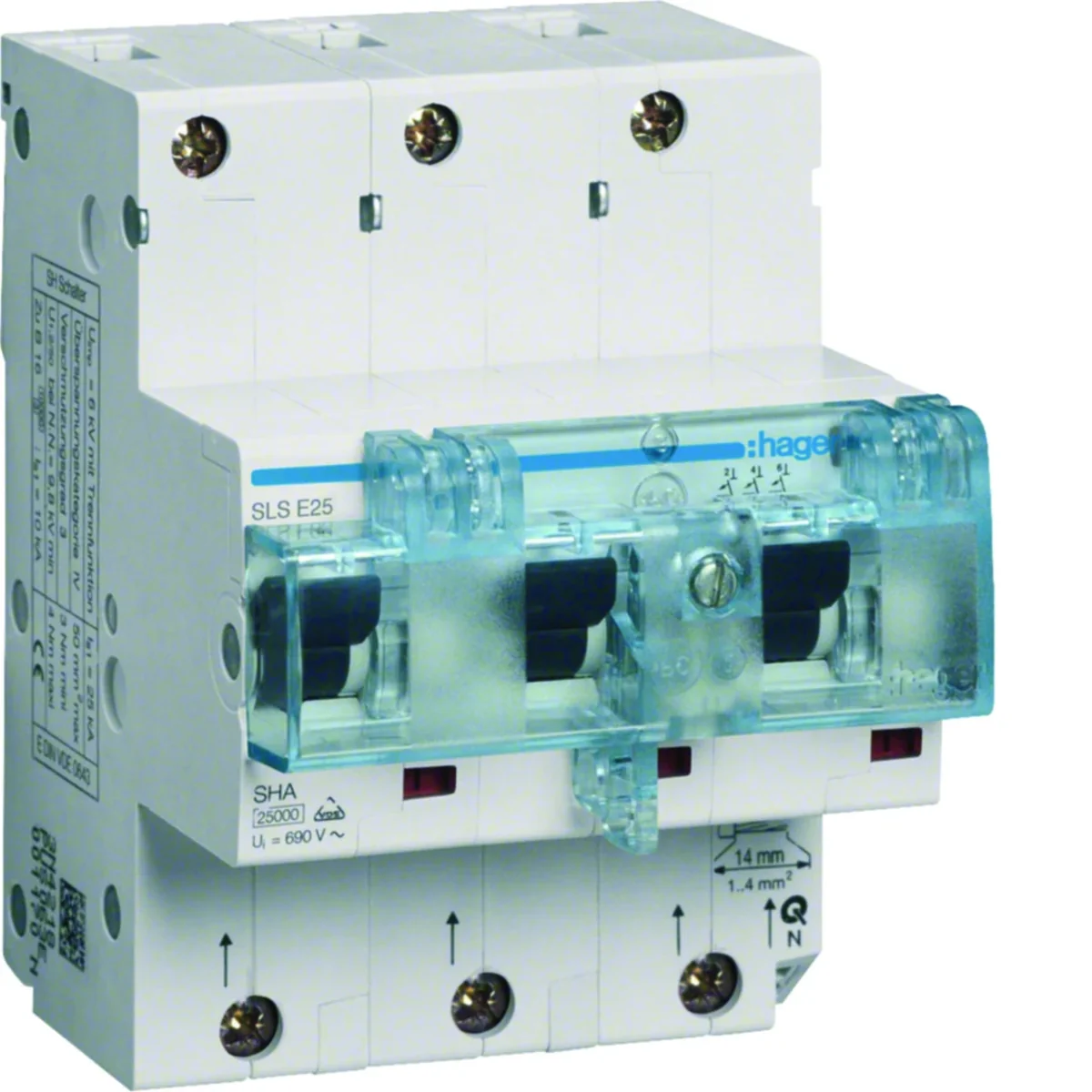

Selector switch SLS 25A 3pole fuse E
Technical data
-
CharacteristicE
-
Number of modules4.5
-
Rated insulation voltage [V]690
-
Power dissipation [W]9
-
Height [mm]110
-
Number of modules4.5
-
Depth [mm]85
-
Number of poles3
-
Rated current [A]25
-
Width [mm]81
-
Rated short-circuit breaking capacity [kA]25
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicE
-
Rated current25 A
-
Rated insulation voltage Ui690 V
-
Concurrently switching neutral conductorNo
-
Over voltage category4
-
Rated surge voltage invariability6 kV
-
Degree of protection (IP)IP20
-
Number of poles3
-
Rated voltage400 V
-
Rated switching capacity25 kA
-
Frequency50 Hz
-
Pollution degree3
-
Mounting methodDIN rail
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 8 pcs. | 192 pcs. |
| Weight (kg) | 0,940 | 1,013 | 8,475 | 226,400 |
| Width (m) | 0,081 | 0,120 | 0,316 | 0,800 |
| Length (m) | 0,110 | 0,084 | 0,211 | 0,994 |
| Depth (m) | 0,089 | 0,149 | 0,370 | 1,200 |
