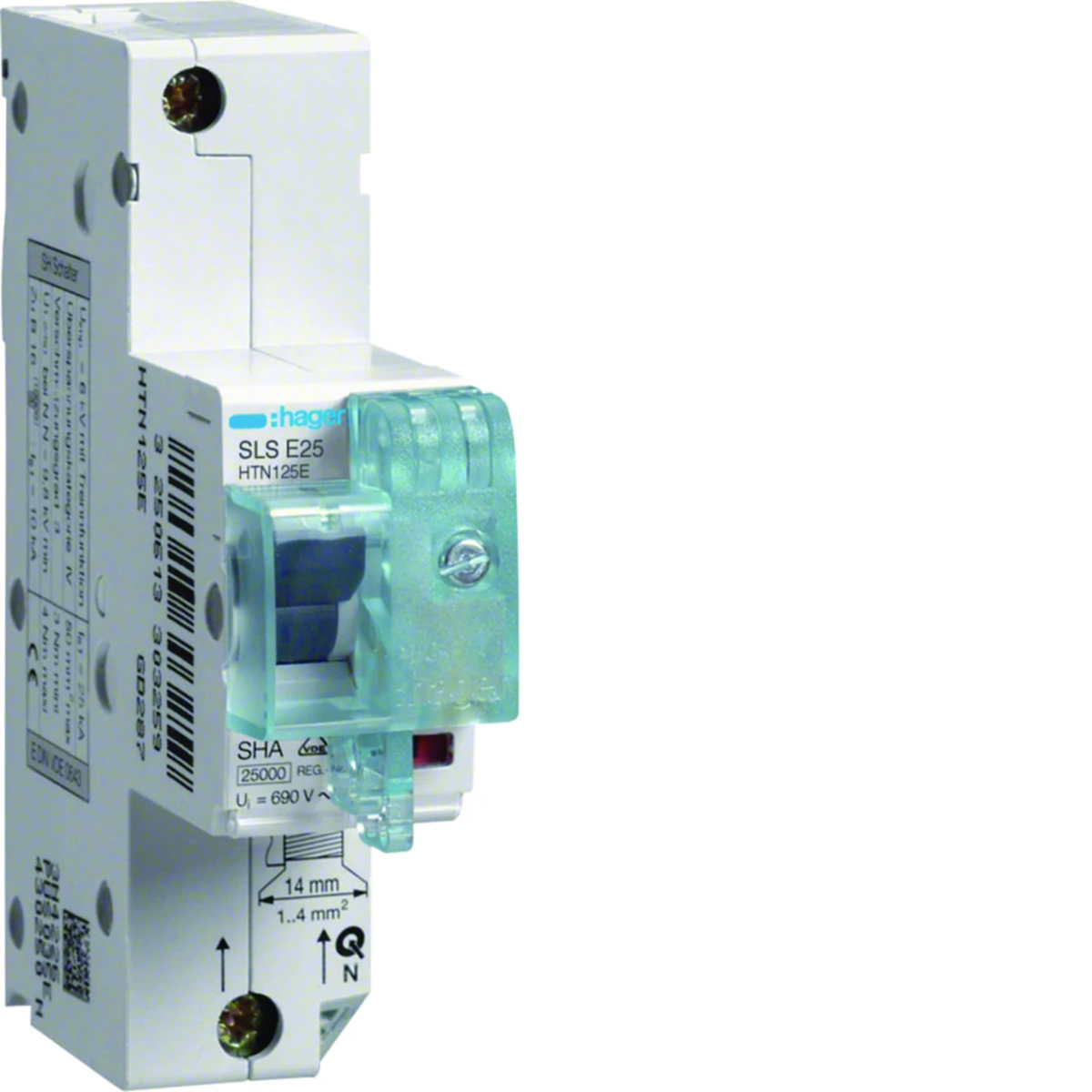

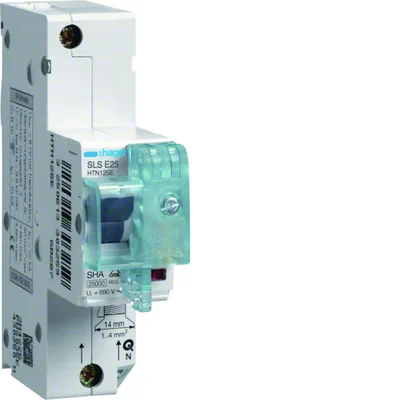

Selective overcurrent circuit breaker MCB SLS 1P E 25A TS35 HTN125E

local index:
ABS004HAGE
Catalog No:
HTN125E
EAN code:
3250613303235
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 85
Number of poles: 1
Price:
87,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse links with their advantages (speed of operation, large current range, price) have operational disadvantages that are difficult to accept: manual replacement when tripped, tripping characteristics not adapted to new automatic circuit breakers, impermanence of protective properties due to aging of elements

The selective circuit breaker meets these disadvantages by offering ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the needs of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allow for full use of the protection capabilities of the entire system.

SLS circuit breakers - selective overcurrent circuit breakers
for rail mounting TS35:
• SLS circuit breakers can be mounted on a TS35 mounting rail or using an adapter on busbars (spacing
40 mm)
• VDE mark, production control expertise
• tested and certified according to E DIN VDE 0643:2003-09, DIN VDE 0641-21
• main application: pre-meter protection
• in accordance with EN 60898
• tripping characteristics E -
- thermal release
1.05 to 1.20 x IN
electromagnetic release
5 x 6.25 IN
• rated voltage:
230/400V~
• short-circuit breaking capacity
25 kA
• can be closed and locked as standard
• L1, L2, L3 switched separately
• contact position status indicatorów
• cage clamps:
- wire up to 50 mm²
- strand up to 35 mm²

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    1
  • Rated insulation voltage [V]
    690
  • power loss [W]
    3.5
  • Type
    E
  • Electrical endurance (number of cycles)
    1500
  • Rated short-circuit breaking capacity [kA]
    25
  • Number of modules
    1.5
  • Depth [mm]
    85
  • Installation
    DIN rail
  • Rated current [A]
    25
  • Width [mm]
    27
  • Height [mm]
    110
  • Mechanical durability (number of cycles)
    10000
  • Rated switching voltage [V]
    230/400
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    E
  • Rated current
    25 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    1
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    DIN rail

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,320 1,050 8,807 234,368
Width (m) 0,027 0,120 0,318 0,800
Length (m) 0,110 0,084 0,211 0,994
Depth (m) 0,089 0,149 0,364 1,200
