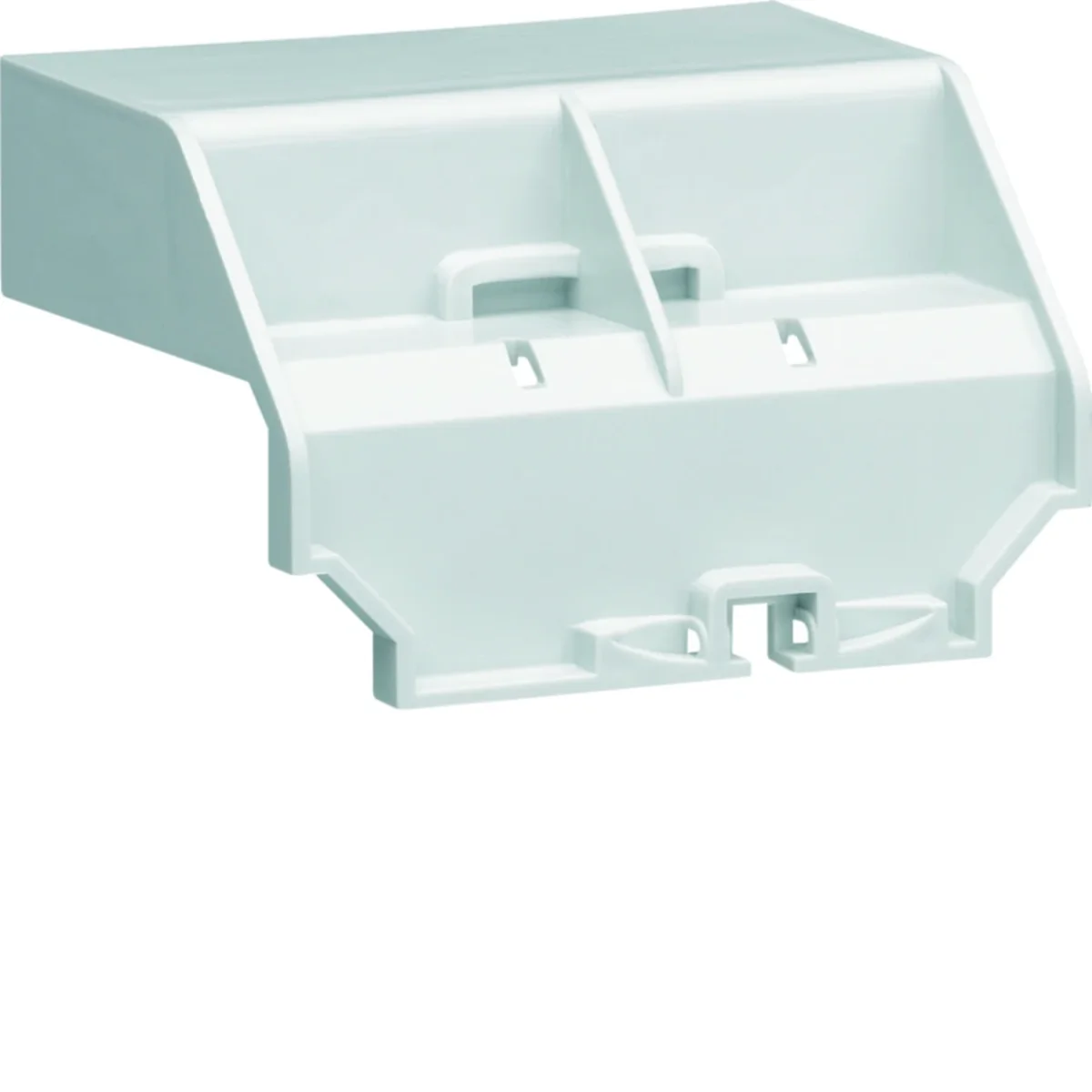

Sealable cover for contactors with a width of 3 modules ESC003

local index:
ATC005HAGE
Catalog No:
ESC003
EAN code:
3250612401925
Manufacturer: HAGER
Depth [mm]: 60
Number of contacts: 1NO 1NC
Rated insulation voltage [V]: 250
Price:
5,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Sealable cover for contactors with a width of 3 modules.

Technical data

  • Depth [mm]
    60
  • Rated insulation voltage [V]
    250
  • power loss [W]
    0.4
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -10 to 50
  • Number of modules
    0.5
  • storage temperature [°C]
    from -25 to 80
  • Conductor cross-section (wire) [mm²]
    1.5 - 10
  • Number of contacts
    1NO 1NC
  • Rated current [A]
    5
  • Width [mm]
    9
  • Height [mm]
    83
  • Rated switching voltage [V]
    250
  • Setting [A]
    5
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    27.12.40.0

Other technical data

  • Type of accessory/spare part
    Cover

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 240 pcs. 5760 pcs.
Weight (kg) 0,007 0,085 2,420 83,080
Width (m) 0,012 0,095 0,315 0,800
Length (m) 0,099 0,080 0,215 1,050
Depth (m) 0,085 0,120 0,360 1,200
