Safety button complete (contact 1 normally closed) SP22-B-01\.

local index:
AKS102SPAM
Catalog No:
SP22-B-01\.
EAN code:
5907723054479
Manufacturer: SPAMEL
Color: Red
Shape: Round
Housing material: Plastic
Price:
12,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

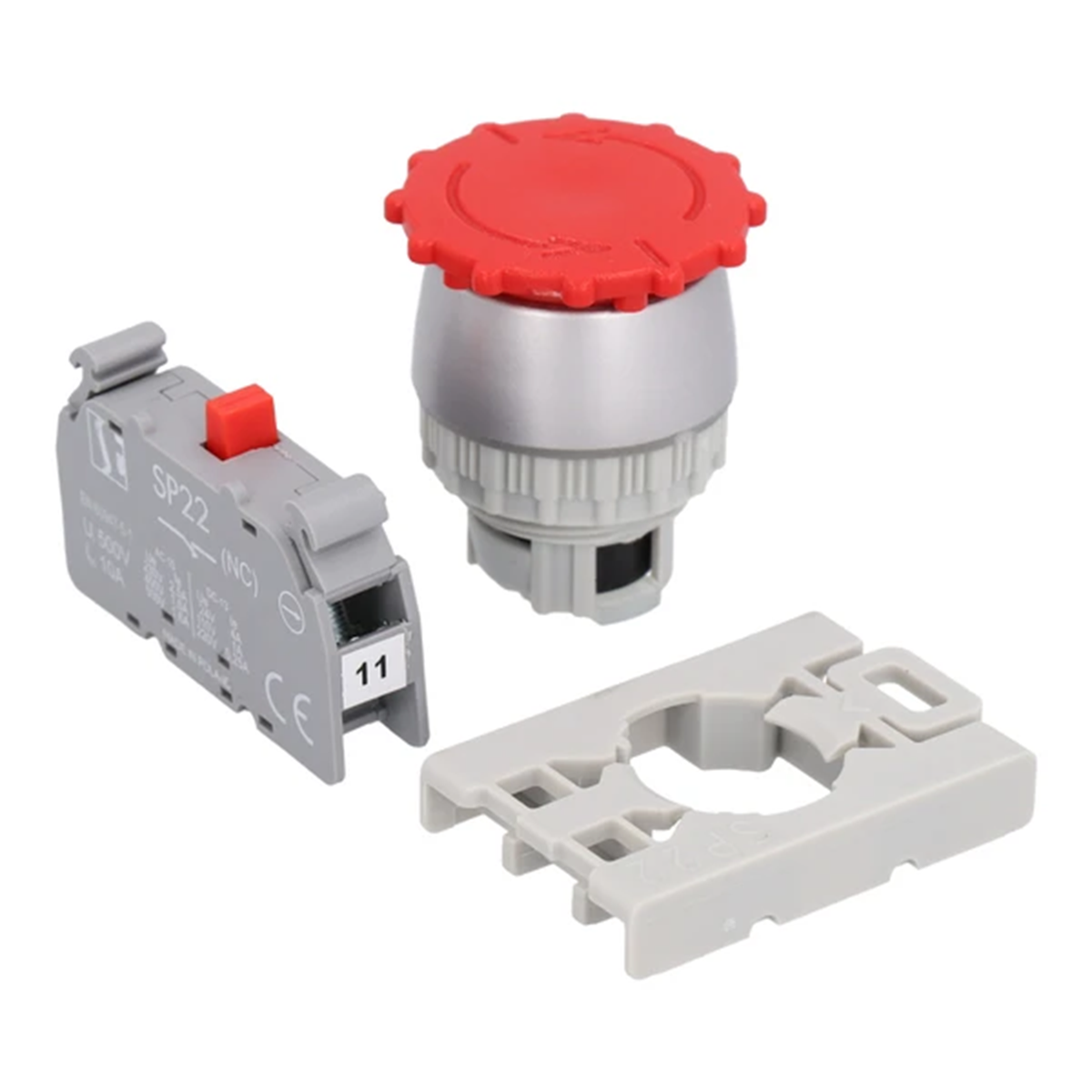

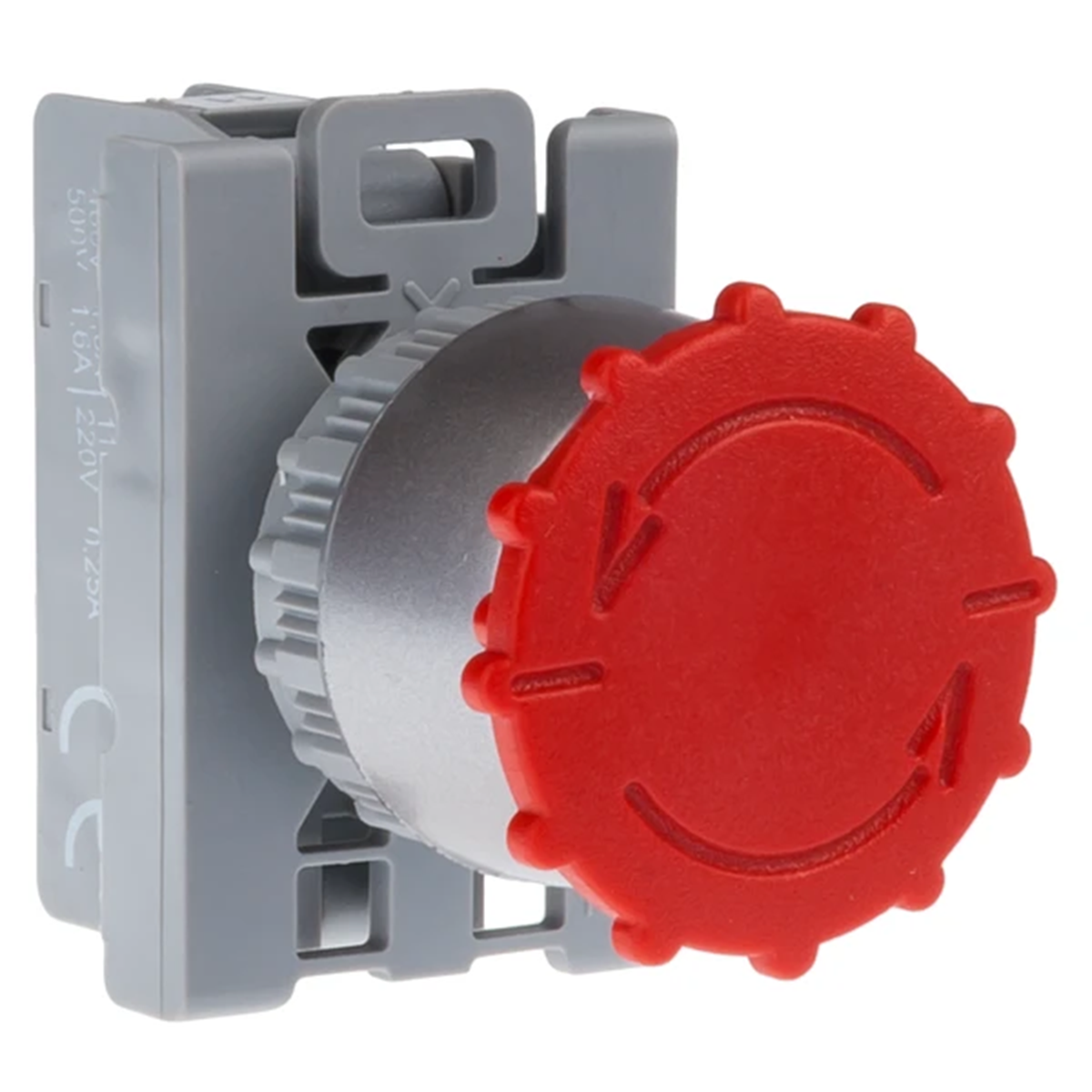

Safety button complete (contact 1 normally closed)

Technical data

  • Color
    Red
  • Housing material
    Plastic
  • Diameter [mm]
    22
  • Shape
    Round
  • Level of security
    IP65
  • Accurate color
    Red

Other technical data

  • Number of command positions
    1
  • Colour button
    Red
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    Yes
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Type of button
    Mushroom
  • Construction type lens
    Round
  • Width opening
    22 mm
  • Suitable for illumination
    No
  • Spring-return
    No
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
