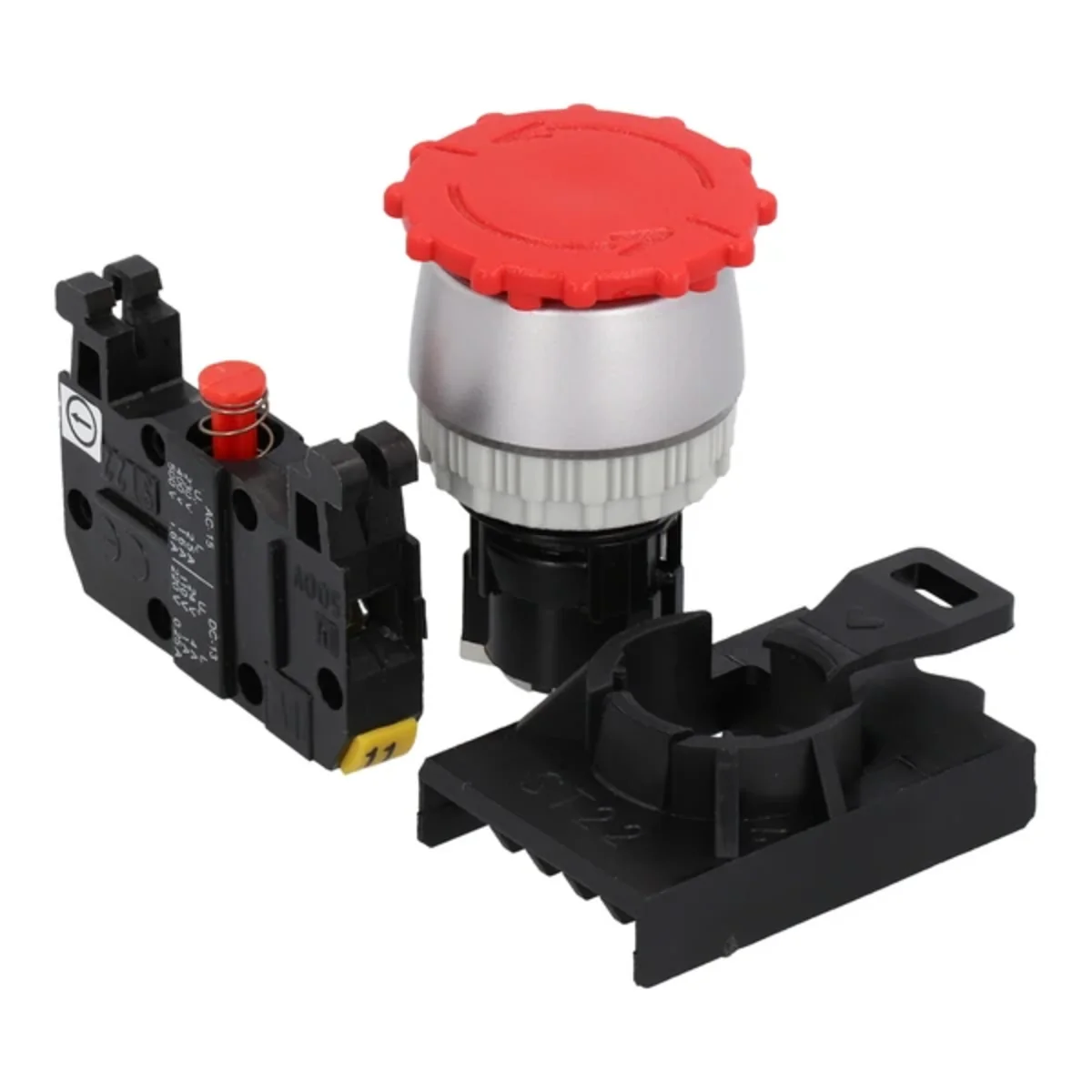

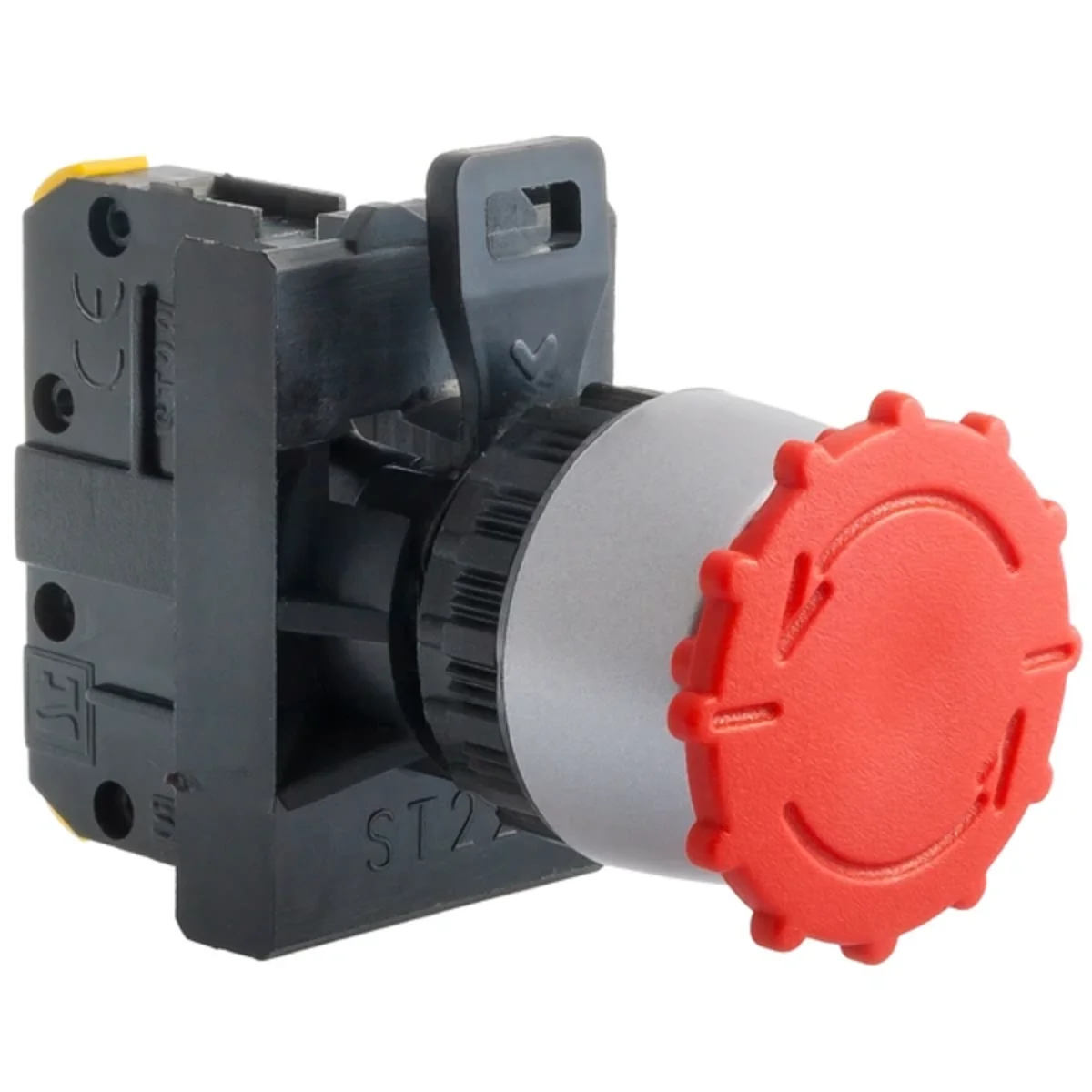

Safety button 22mm 1 NC contact IP65 by turning black ring ST22-B-01\.
local index:
AKS319SPAM
Catalog number:
ST22-B-01\.
EAN code:
5907723008397
Price:
62,91 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Safety button 22mm 1 NC contact IP65 by turning black ring
Technical data
-
ColorRed
-
Face ring materialPlastic
-
Hole diameter [mm]22
-
Lens shapeRound
-
Level of securityIP65
-
Accurate colorRed
Other technical data
-
Number of command positions1
-
Colour buttonWhite
-
Hole diameter22 mm
-
Height opening22 mm
-
Switching function latchingYes
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact0
-
With front ringYes
-
Colour front ringGrey
-
Type of buttonMushroom
-
Construction type lensRound
-
Width opening22 mm
-
Suitable for illuminationNo
-
Spring-returnNo
-
Number of contacts as normally closed contact1
-
Type of electric connectionScrew connection
-
Material front ringPlastic
-
Degree of protection (IP)IP65
Manufacturer details
-
ManufacturerS.I. Spamel
-
Address56- 416 Twardogóra Wojska Polskiego 3 Polska
-
