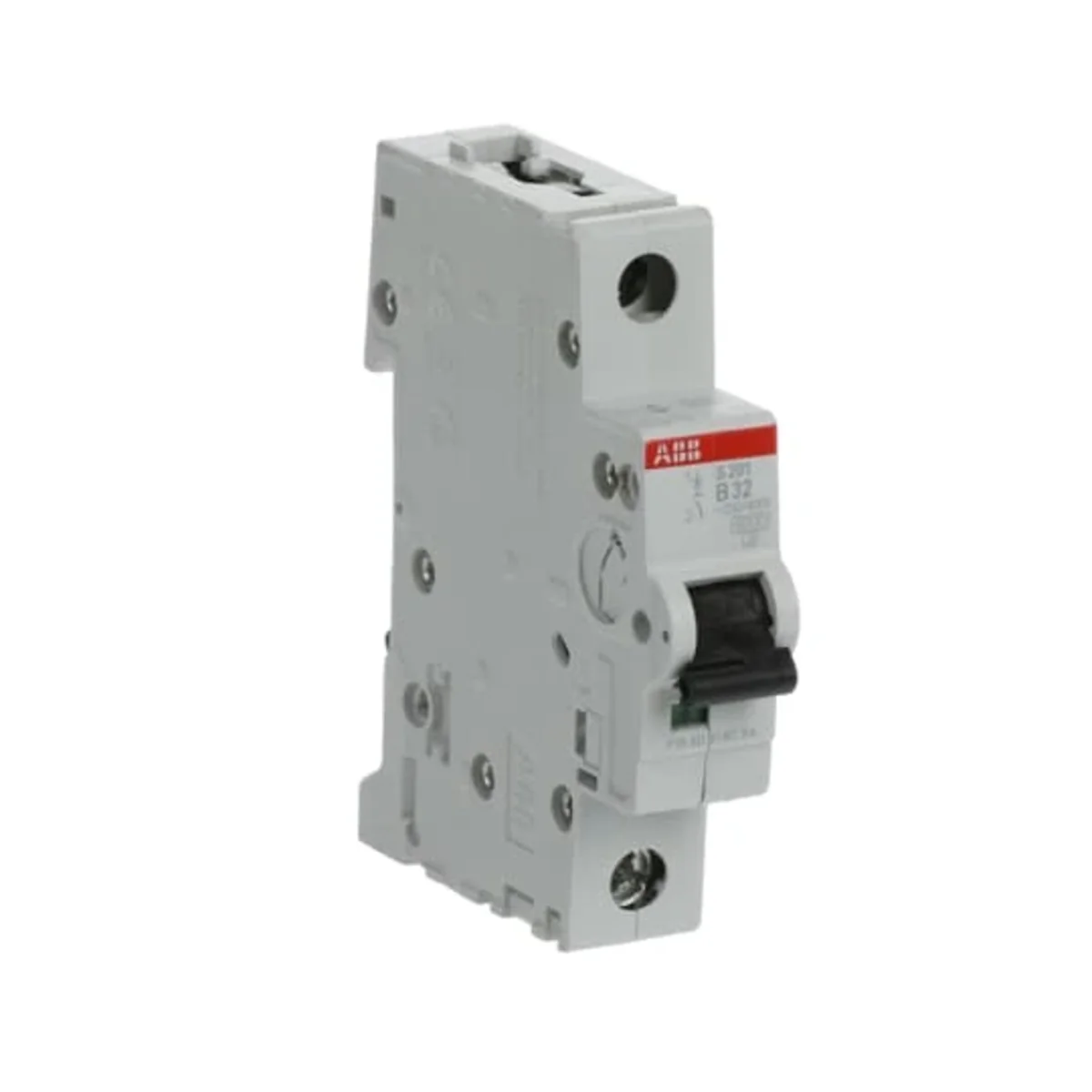

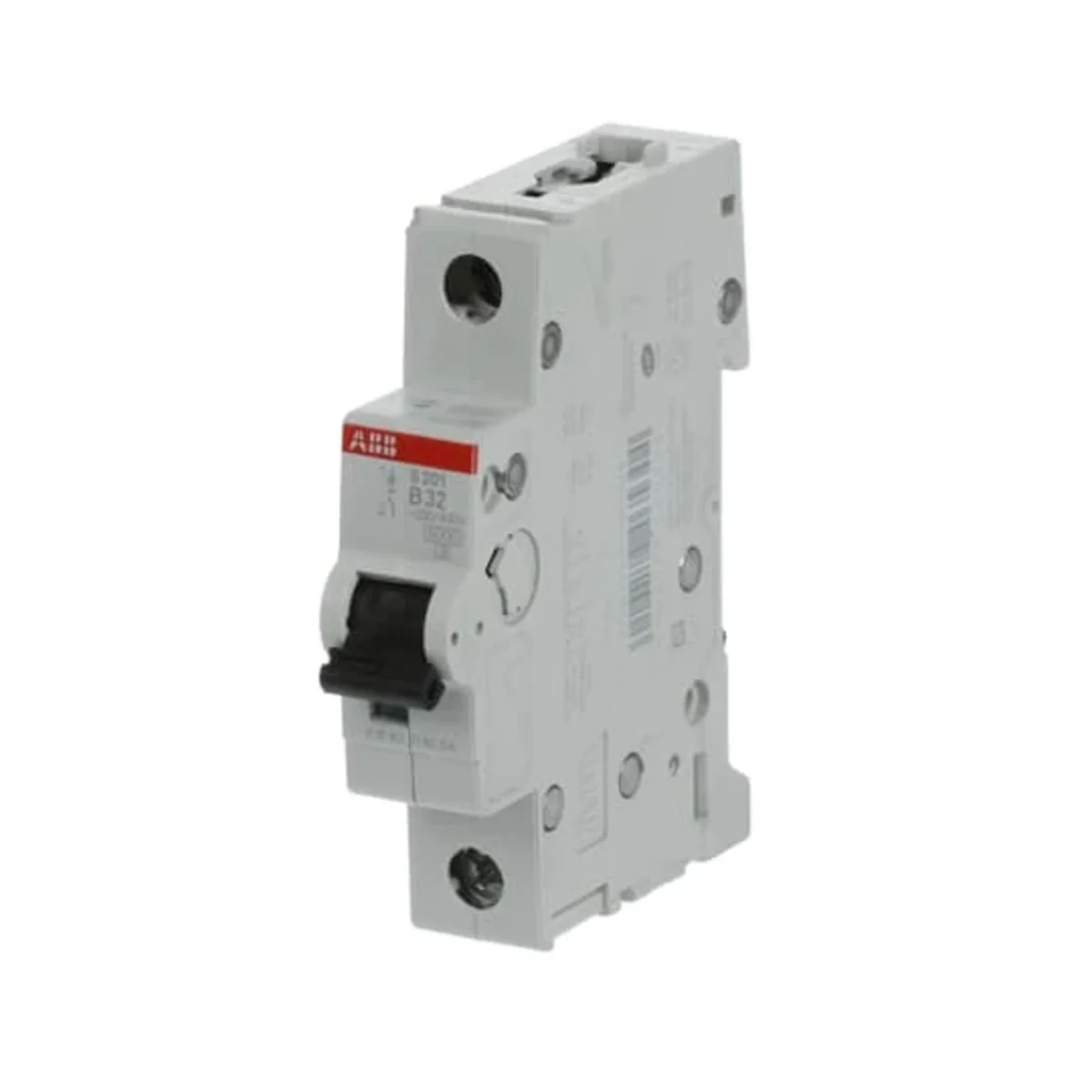

S201-B32 circuit breaker | 1P | character B | 32A | 6kA | AC | 2CDS251001R0325
local index:
ARP019ABBQ
Catalog number:
2CDS251001R0325
EAN code:
4016779465304
Manufacturer:
ABB
Price:
33,25 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Built-in depth69 mm
-
Number of poles (total)1
-
Rated current32 A
-
Rated insulation voltage Ui440 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Power loss3.7 W
-
Flush-mounted installationNo
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired0.75 ... 25 mm²
-
Explosion-proofNo
-
Release characteristicB
-
Number of protected poles1
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeOther
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
-
Frequency50 ... 60 Hz
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core0.75 ... 35 mm²
Manufacturer details
-
ManufacturerABB Sp. z o.o.
-
Address04-713 Warszawa Żegańska 1 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka | piece |
| Quantity | 10 pcs. | 120 pcs. |
| Weight (kg) | 1,295 | 14,800 |
| Width (m) | 0,092 | 0,275 |
| Length (m) | 0,183 | 0,395 |
| Depth (m) | 0,080 | 0,210 |
