ROP B NC-NO WP-1 IP65 manual call point 921406

local index:
AKS008ELDZ
Catalog No:
921406
EAN code:
5906197485062
Manufacturer: ELEKTROMET
Depth [mm]: 66
Installation: Surface-mounted
Rated current [A]: 12
Price:
28,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

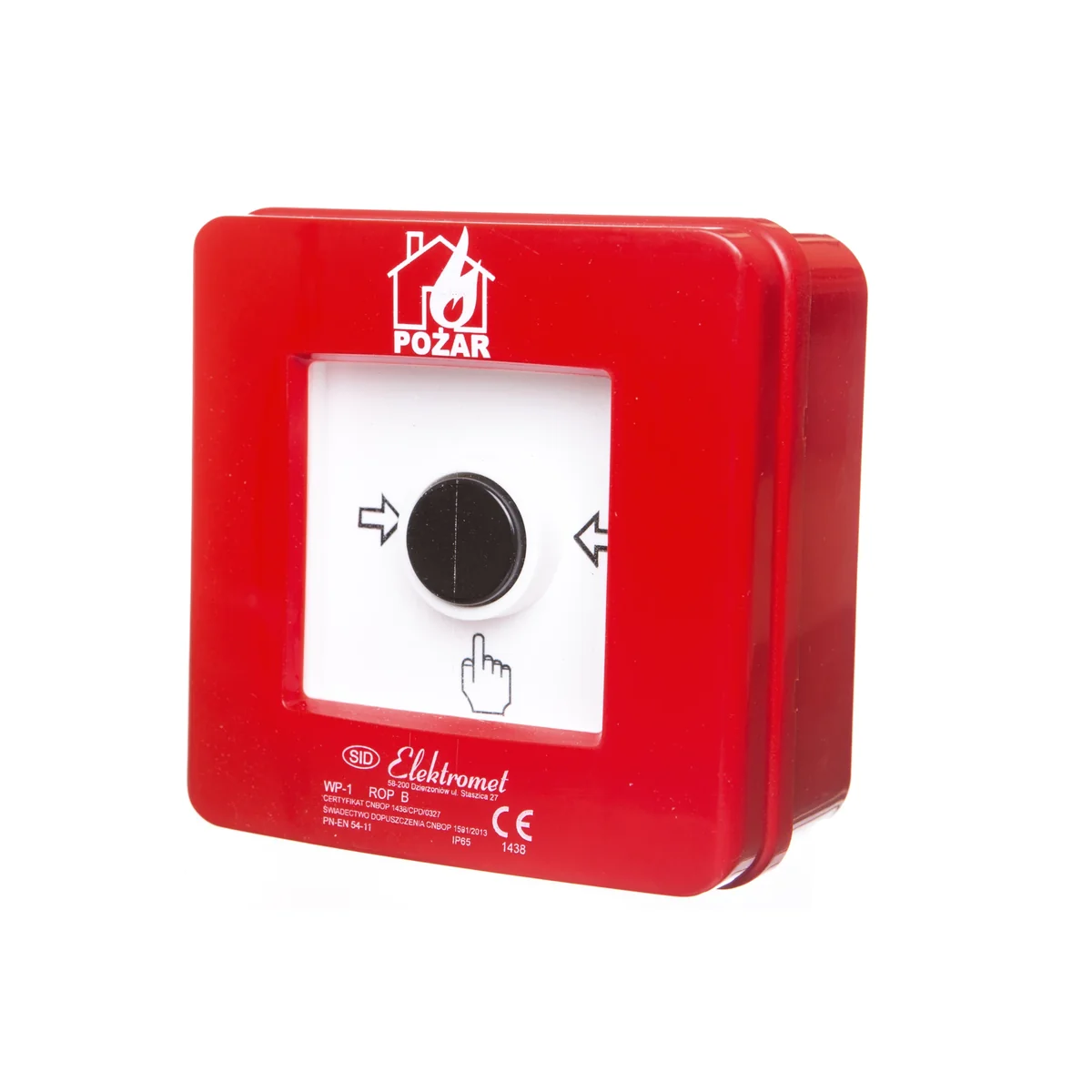

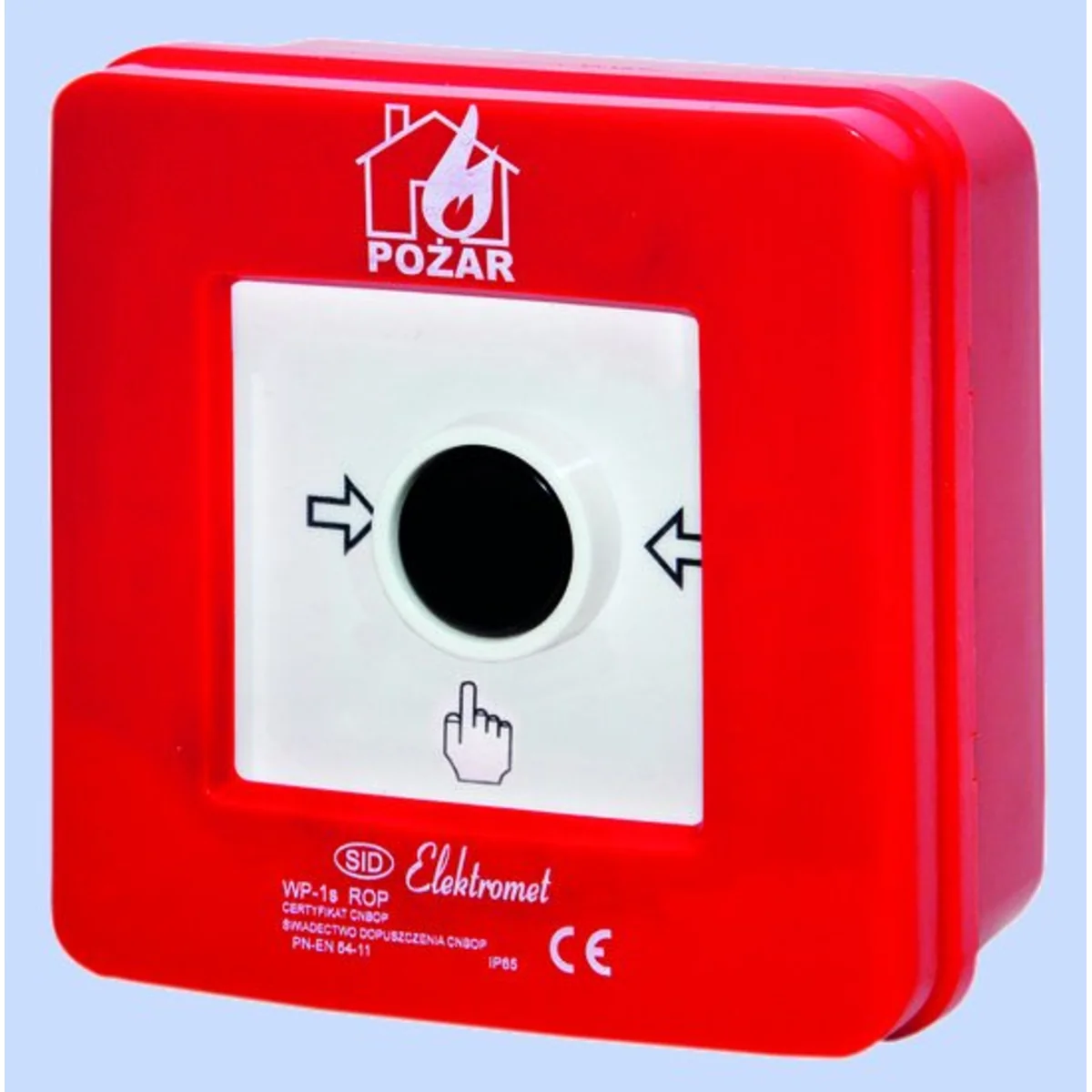

Manual call point ROP B NC-NO WP-1 IP65 surface-mounted. Rated switching current: in AC-15 utilization category Ie = 10A / Ue =230V~; in utilization category AC-22A Ie = 12A/Ue = 400V~

Technical data

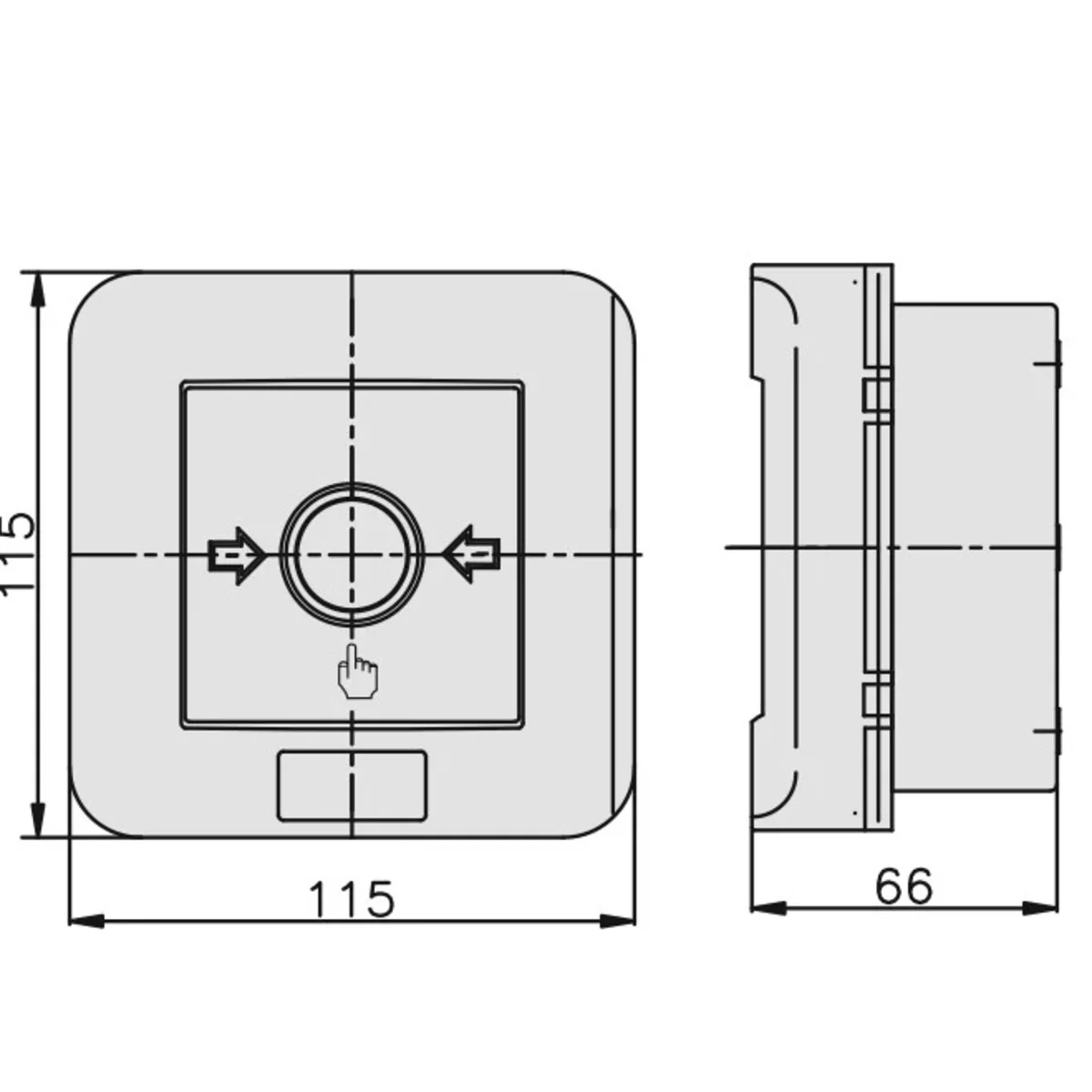

  • Depth [mm]
    66
  • Rated current [A]
    12
  • Width [mm]
    115
  • Insulation voltage [V]
    690
  • Installation
    Surface-mounted
  • Level of security
    IP65
  • Height [mm]
    115
  • PKWIU
    27.33.11.0

Other technical data

  • Type of messaging
    Fire brigade alarm (red)
  • Width
    115 mm
  • With glass disc
    Yes
  • Number of poles
    2
  • Degree of protection (IP)
    IP65
  • Height
    115 mm
  • Depth
    66 mm
  • Colour
    Red
  • Material
    Plastic

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,285
Width (m) 0,117
Length (m) 0,117
Depth (m) 0,070
