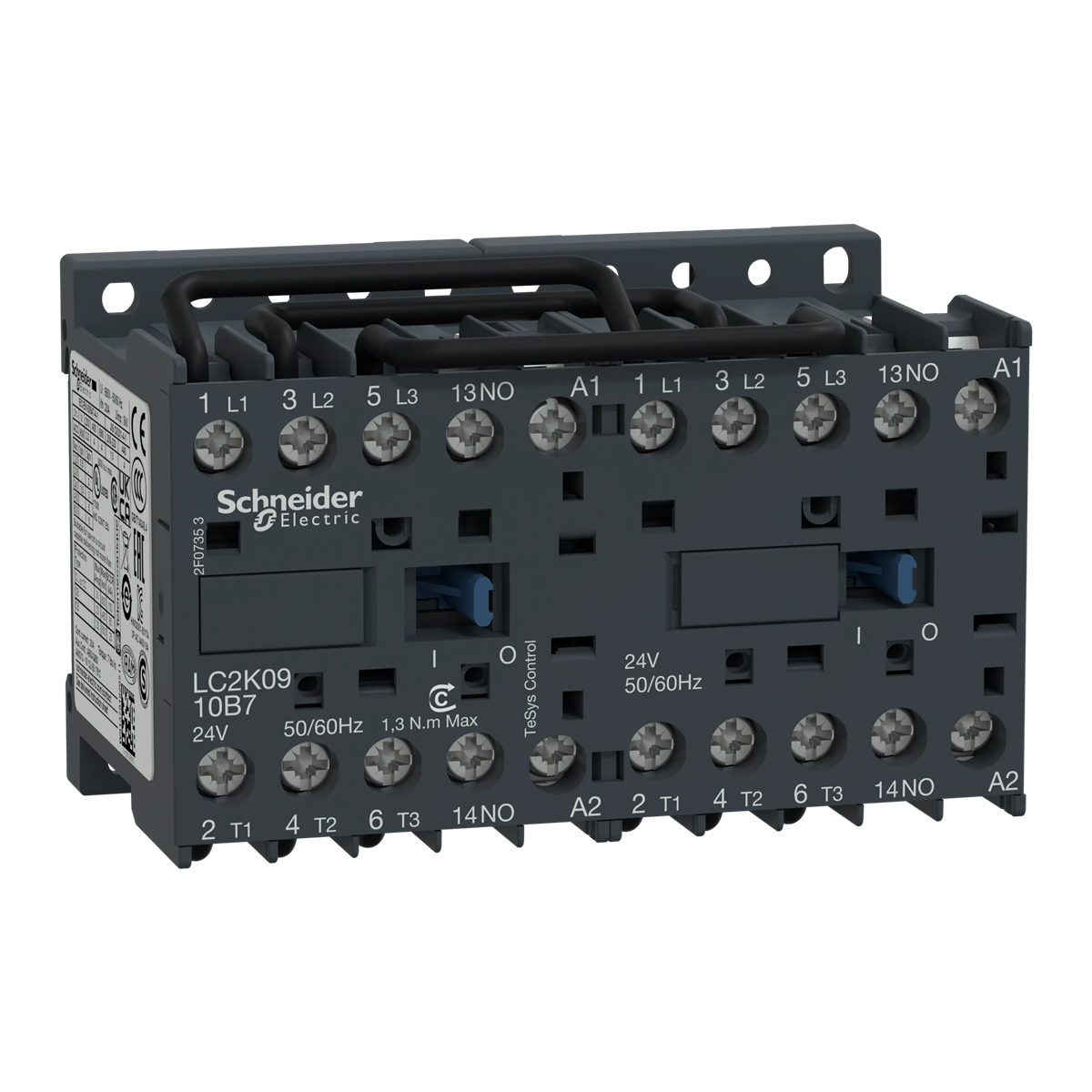

Reversing unit TeSys K AC3 9A 3P 1NO coil 42VAC box terminals
Technical data
-
Number of poles3
-
Contact1NO
-
PKWIU27.12.24.0
-
Control circuit voltage [V]42
-
Rated operational current [A]9
Other technical data
-
FunctionReversing contactor
-
Rated control supply voltage AC 60 Hz42 ... 42 V
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation power NEMA3.73 kW
-
Degree of protection (IP)IP20
-
Rated control supply voltage AC 50 Hz42 ... 42 V
-
Voltage type for actuatingAC
-
Rated operation power at AC-3, 400 V4 kW
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
