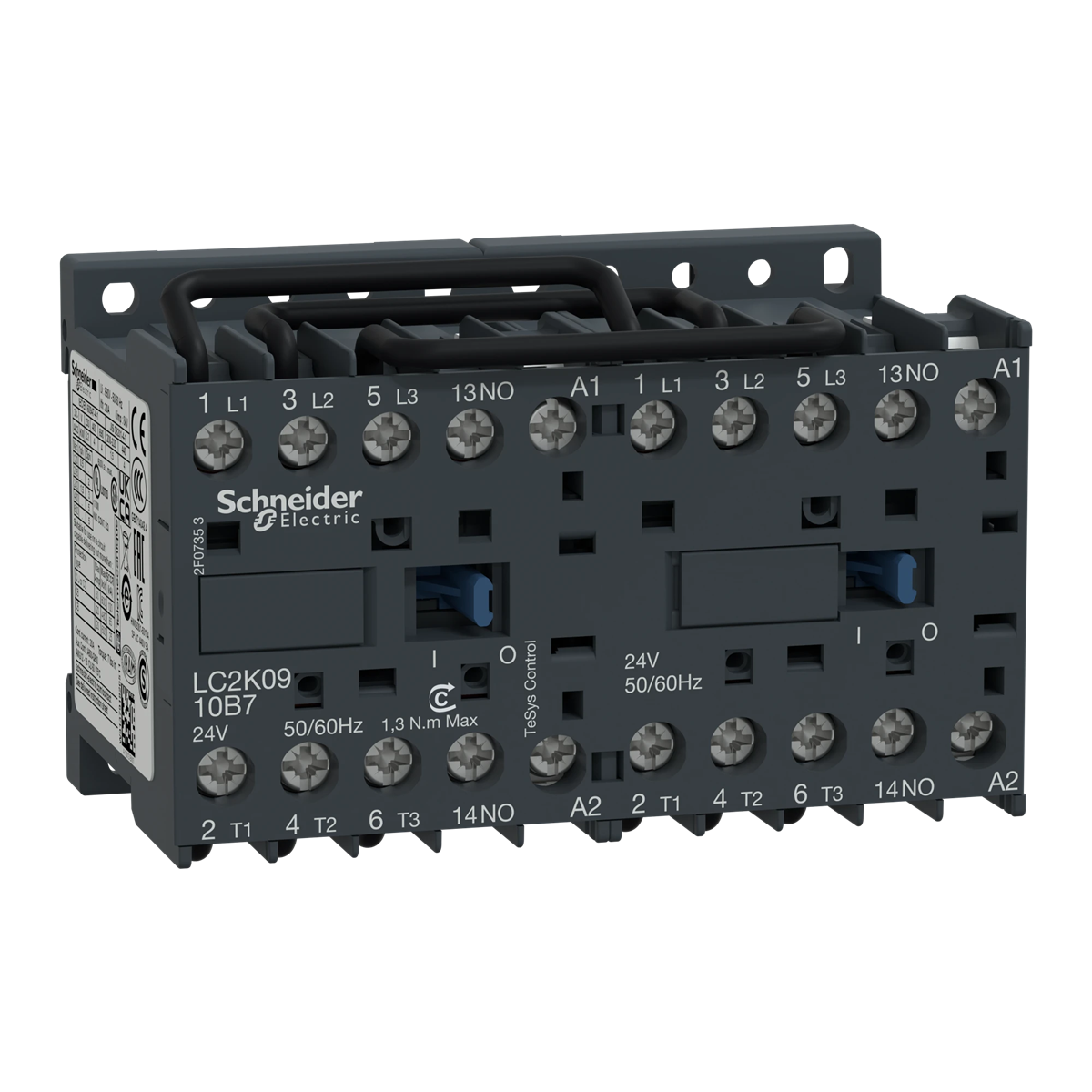

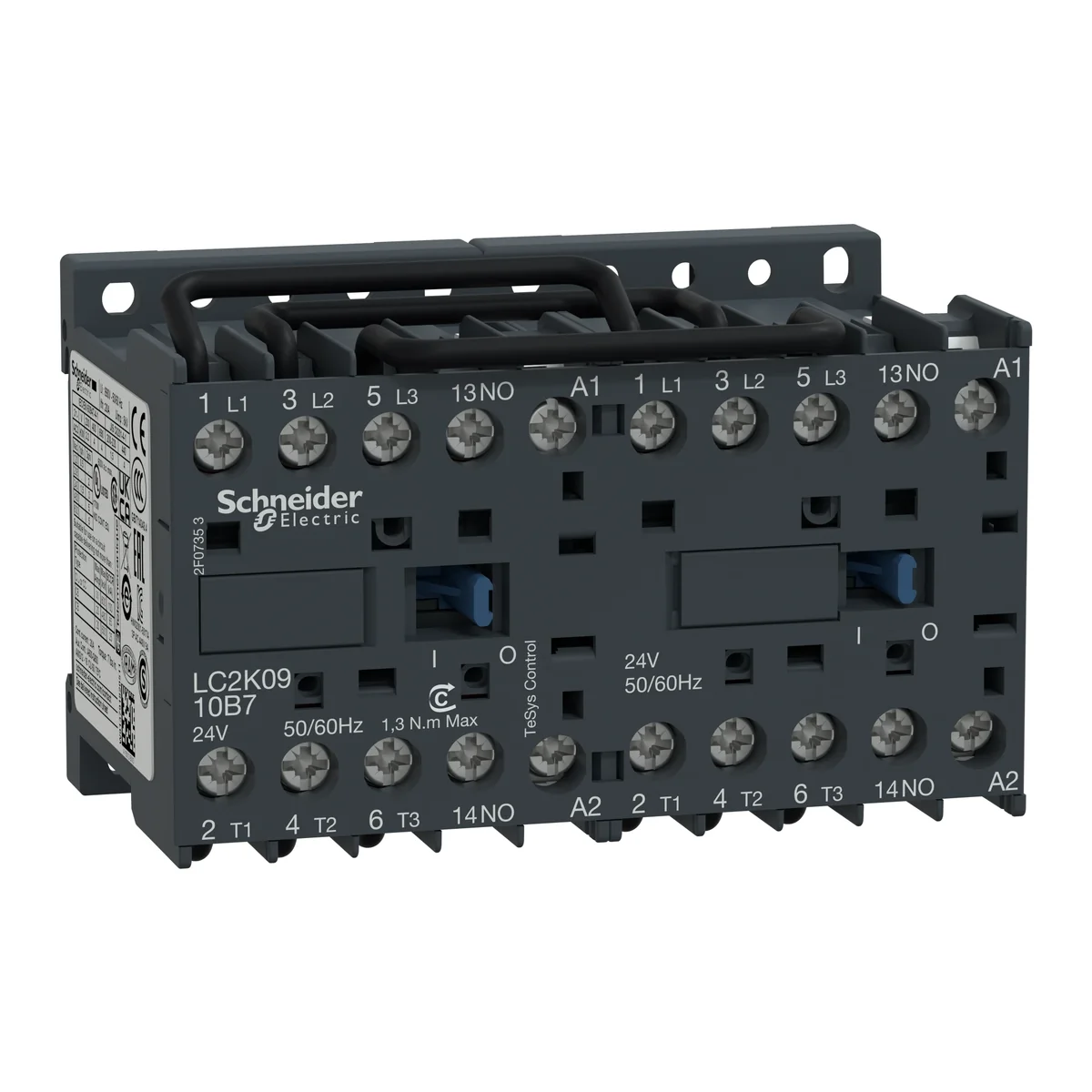

Reversing unit TeSys K AC3 9A 3P 1NO coil 24VAC box terminals LC2K0910B7

local index:
ATA189SCHN
Catalog No:
LC2K0910B7
EAN code:
3389110492286
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 3
Price:
123,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Reversing unit TeSys K AC3 9A 3P 1NO coil 24VAC box terminals

Technical data

  • Number of poles
    3
  • PKWIU
    27.12.24.0

Other technical data

  • Function
    Reversing contactor
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Rated operation current Ie at AC-3, 400 V
    9 A
  • Rated operation power NEMA
    3.73 kW
  • Degree of protection (IP)
    IP20
  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    4 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other
