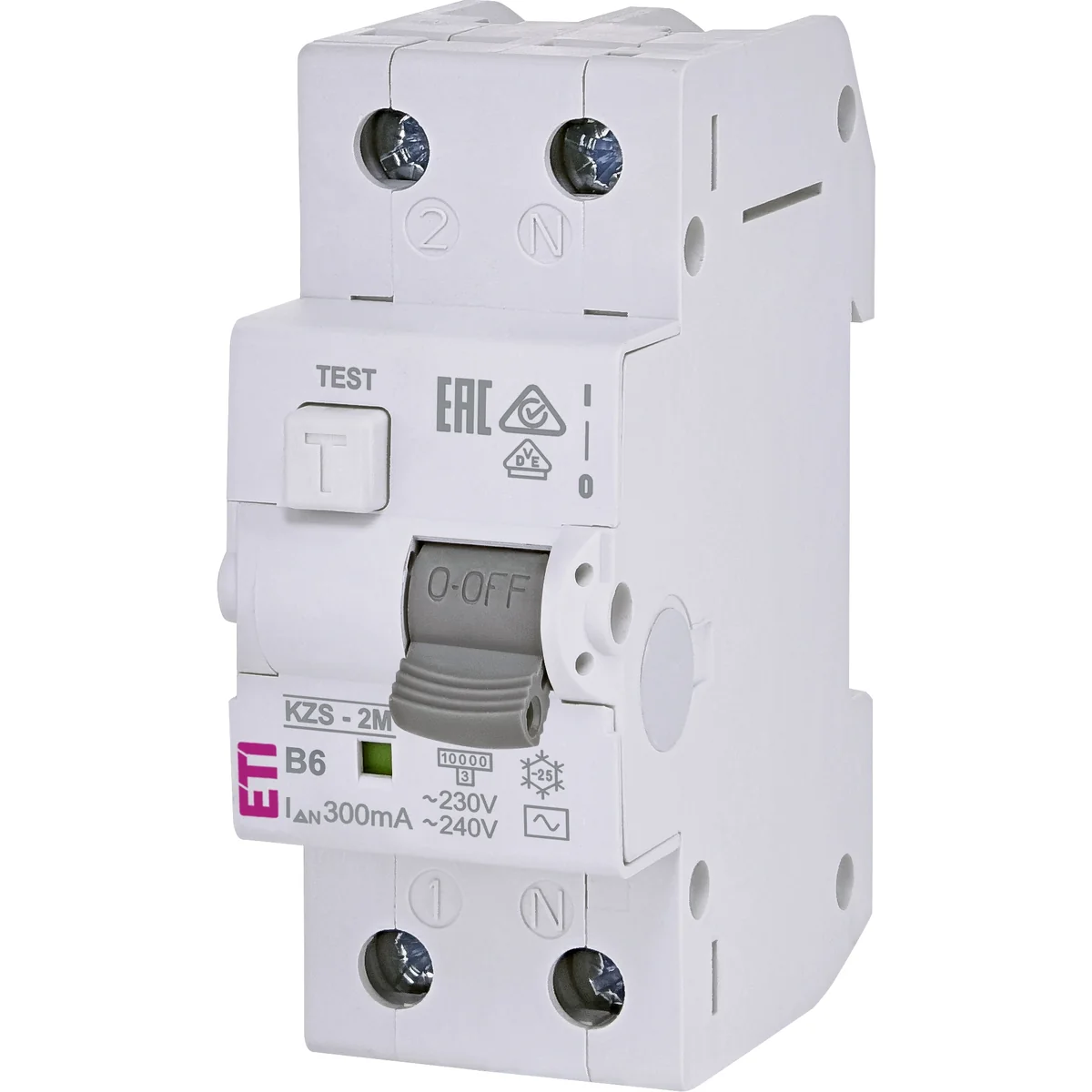

Residual current device with overcurrent module - KZS-2M B 6/0.3A, AC 002173301

local index:
ARB013ETIP
Catalog No:
002173301
EAN code:
3838895375562
Manufacturer: ETI POLAM
Characteristic: b
Differential current [mA]: 300
Rated current [A]: 6
Price:
43,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current device with overcurrent module - KZS-2M B 6/0.3A, AC

Technical data

  • Characteristic
    b
  • Rated current [A]
    6
  • PKWIU
    27.12.22.0
  • Differential current [mA]
    300
  • Trigger type
    AC

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated current
    6 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to EN 61009
    10 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Built-in depth
    69 mm
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated fault current
    0.3 A
  • Current limiting class
    3
  • Voltage type
    AC
  • Release characteristic
    B
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
