Residual current device with overcurrent element 1P+N 6kA B 10A/30m ADA910D

Name: Residual current device with overcurrent element 1P+N 6kA B 10A/30m
Brand: HAGER
SKU: ARP071HAGE
Price: 382.38 PLN
Availability: BackOrder

Внутрішній артикул:

ARP071HAGE

№ каталоговий:

ADA910D

Код EAN:

3250611010623

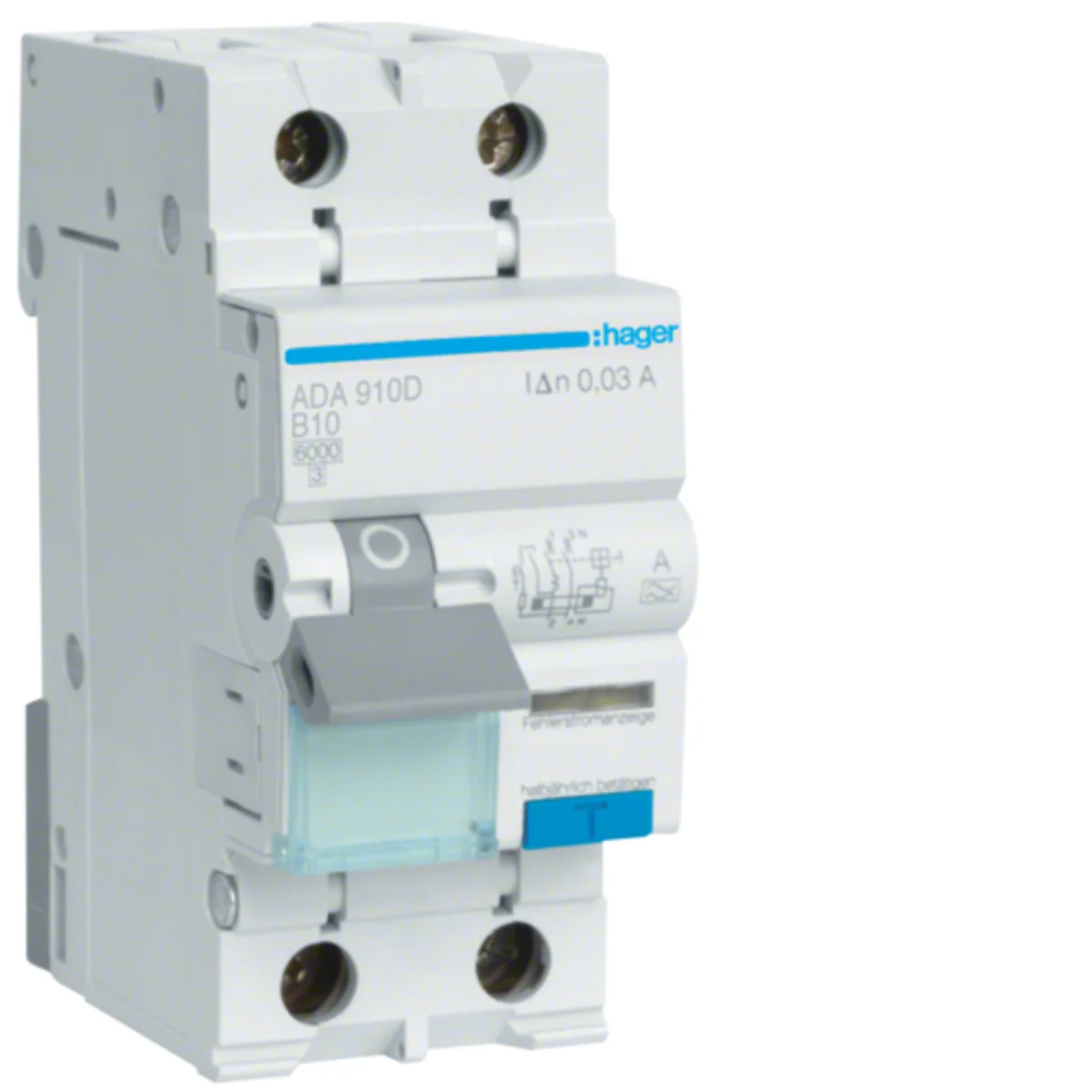

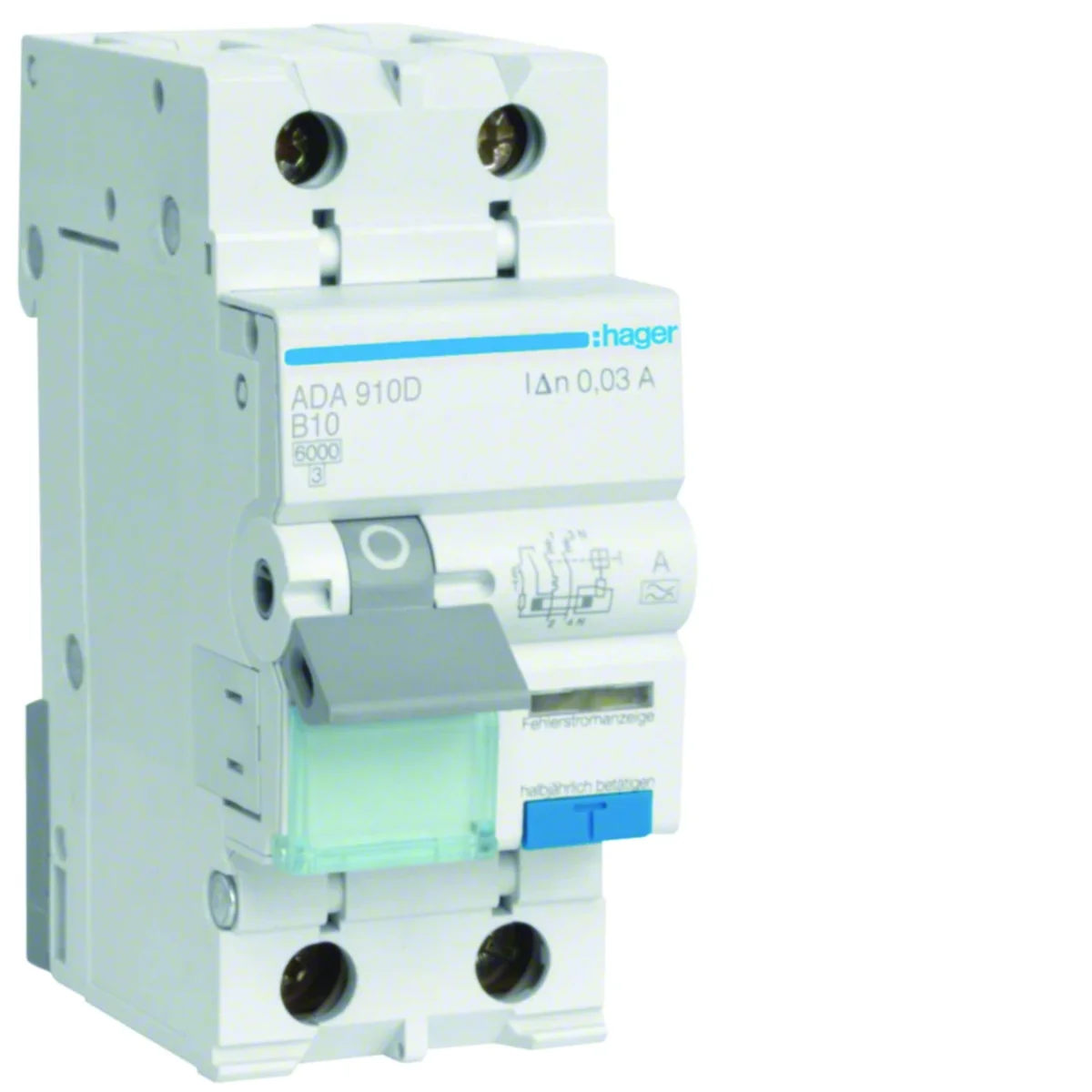

Residual current device with overcurrent element 1P+N 6kA B 10A/30m

Натисни на фото щоб збільшити

Виробник: HAGER

Characteristic: b

Rated frequency [Hz]: 50

Depth [mm]: 68

Дивіться повний опис

Ціна:

382,38 zł

gross / шт.

(з ПДВ 23%)

до 2 тижнів

На замовлення

Кількість шт.

(багаторазовий:

)

Додати до запиту на пропозицію

Додати в буфер обміну

Роздрукувати

Запитайте про товар

Опис товару Технічні дані Інформація про виробника Об'ємна упаковка Файли для завантаження

Опис товару

Residual current circuit breakers with overcurrent element

Residual current circuit breakers with overcurrent element (RCBO) of high and medium sensitivity, 2-pole (1P+N),
sensitive to sinusoidal alternating (AC) or sinusoidal alternating and pulsating currents with a DC component (A),
rated operational voltage: 230 V AC,
rated operating differential current: 10, 30 or 300 mA,
short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
tripping characteristic for the overcurrent element: B or C,
optical residual current trip indicator,
optical indicator of the position of the main contacts,
descriptive field with a safety flap,
wide range of accessories
possibility of connection using horizontal comb busbars,
cage terminals: (wire up to 25 mm2, strand up to 16 mm2),
degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Технічні дані

Characteristic

b
Depth [mm]

68
Number of poles

2
Rated voltage [V]

230
Differential current [mA]

thirty
Power dissipation [W]

3.4
Working temperature [°C]

-25 to 40
Height

83
Electrical endurance (number of cycles)

2000
Rated short-circuit breaking capacity [kA]

6
Connection type

With a screw
AC rated voltage [V]

240

Rated frequency [Hz]

50
Number of modules

2
Tightening torque [Nm]

2.1
Rated insulation voltage [V]

500
Rated current [A]

10
Width [mm]

35
Trigger type

b
Height [mm]

83
Mechanical durability (number of cycles)

2000
Rated impulse voltage [kV]

4
Number of modules

2
PKWIU

27.12.23.0

Інші технічні дані

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

2
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

10 A
Leakage current type

A
Power loss

3.4 W
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Degree of protection (IP)

IP2X
Connectable conductor cross section multi-wired

1 ... 16 mm²
