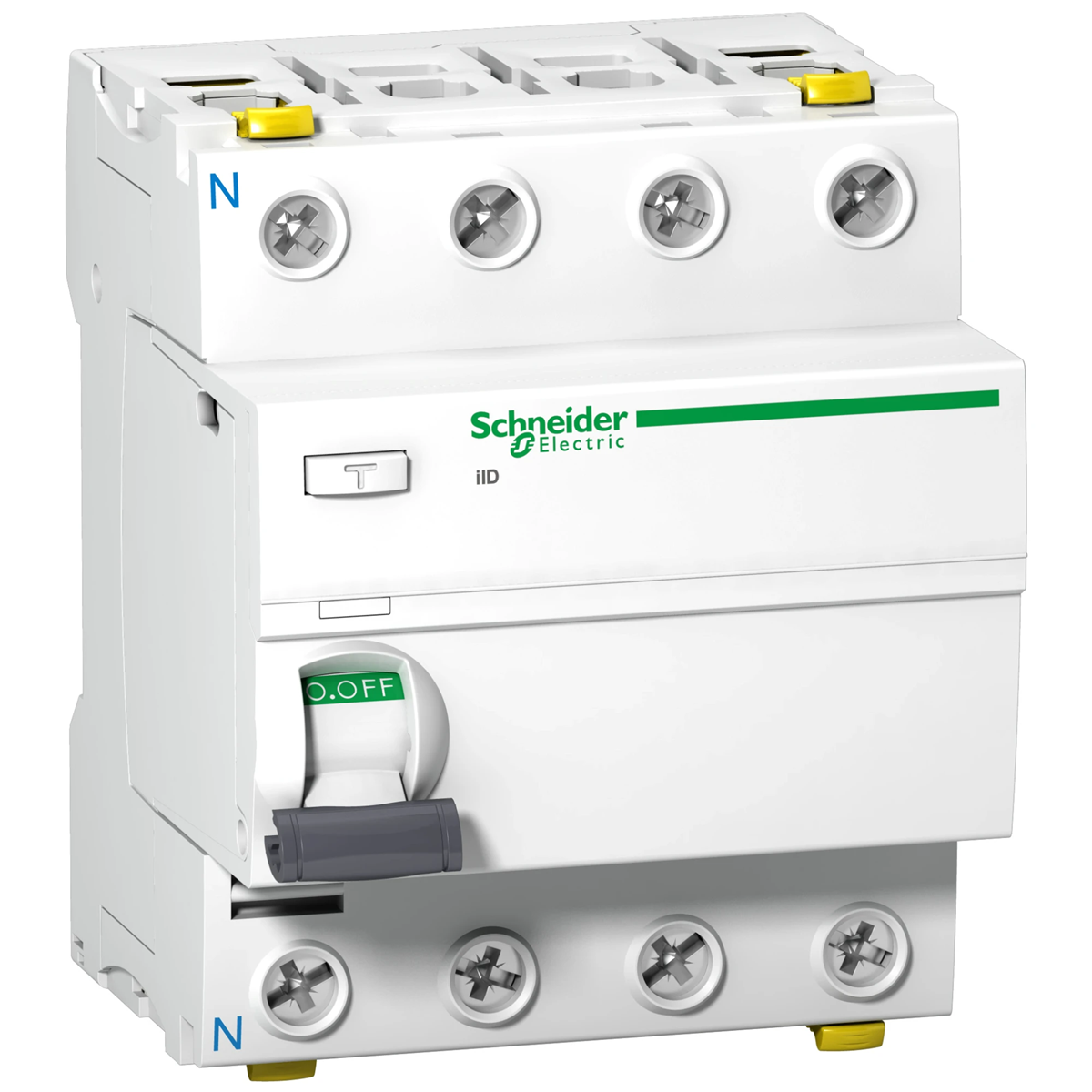

Residual current device iID, 4P, 25A, 30mA A9Z21425

local index:
ARB009SCHN
Catalog No:
A9Z21425
EAN code:
3606480443176
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 4
Differential current [mA]: thirty
Rated current [A]: 25
Price:
85,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current device iID, 4P, 25A, 30mA

Technical data

  • Number of poles
    4
  • Rated current [A]
    25
  • PKWIU
    27.12.23.0
  • Differential current [mA]
    thirty
  • Trigger type
    AND

Other technical data

  • Number of poles
    4
  • Rated current
    25 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Rated voltage
    400 V
  • Rated fault current
    0.03 mA
  • Rated impulse withstand voltage Uimp
    6 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    3
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
