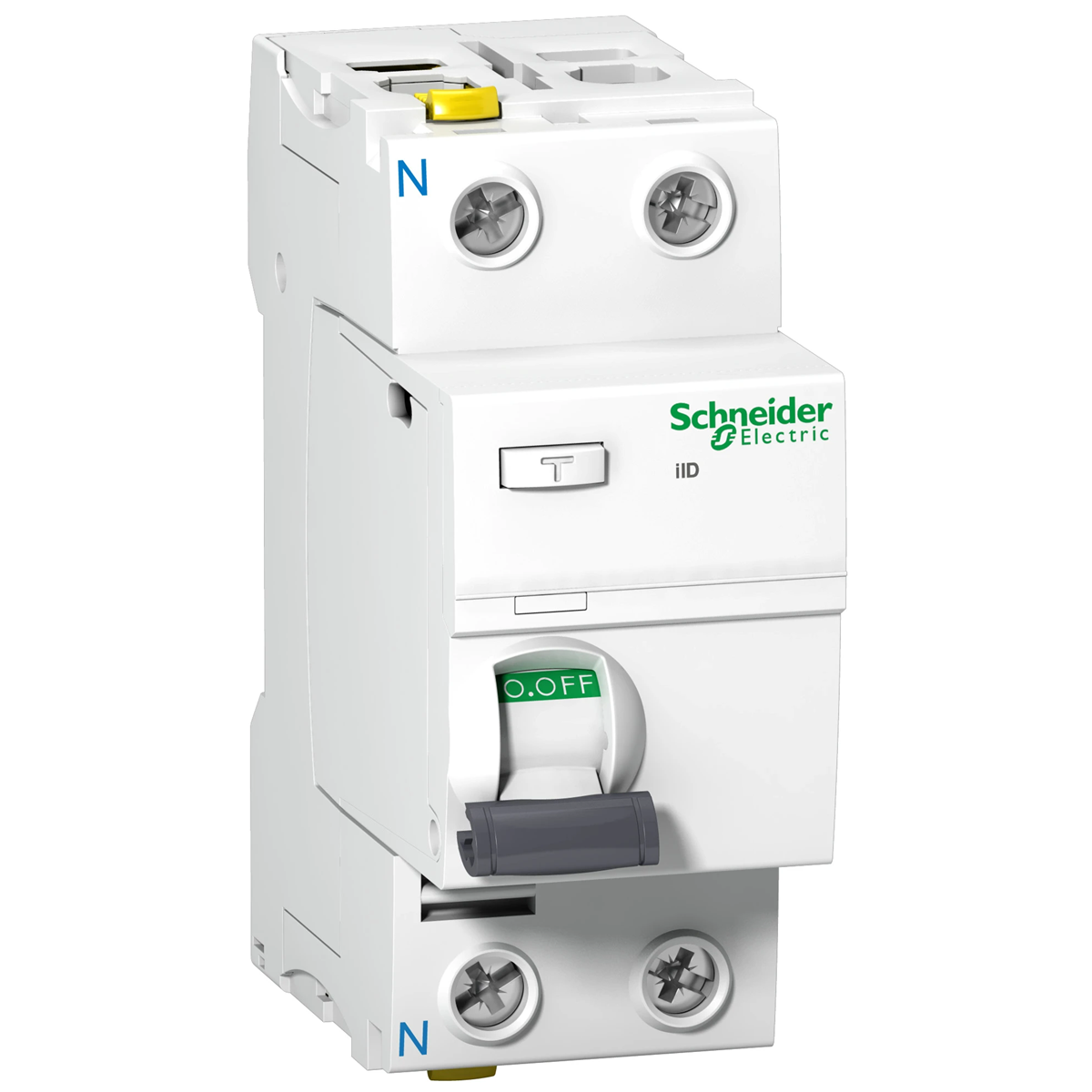

Residual current device iID, 2P, 25A, 30mA A9Z11225

Lokaler Index:
ARP008SCHN
Katalognummer:
A9Z11225
EAN-Code:
3606480442186
Number of poles: 2
Differential current [mA]: thirty
Rated current [A]: 25
Preis:
42,35 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 18 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Schneider Electric iID series residual current circuit breakers allow for the implementation of protection against electric shock, while providing facilities for installation in the switchgear (tool-free installation on a DIN rail, double terminals up / down), safety of operation (possibility to check with the "T" button only once a year, terminal plugs when tightening the wires) as well as the ability to communicate via the Smartlink system using an auxiliary contact confirming the status of the circuit breaker and the cause of tripping.

Technische Daten

  • Number of poles
    2
  • Rated current [A]
    25
  • PKWIU
    27.12.23.0
  • Differential current [mA]
    thirty
  • Trigger type
    AC

Weitere technische Daten

  • Number of poles
    2
  • Rated current
    25 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    No
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -5 ... 60 °C
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Rated voltage
    230 V
  • Rated fault current
    0.03 mA
  • Rated impulse withstand voltage Uimp
    6 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    3
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
