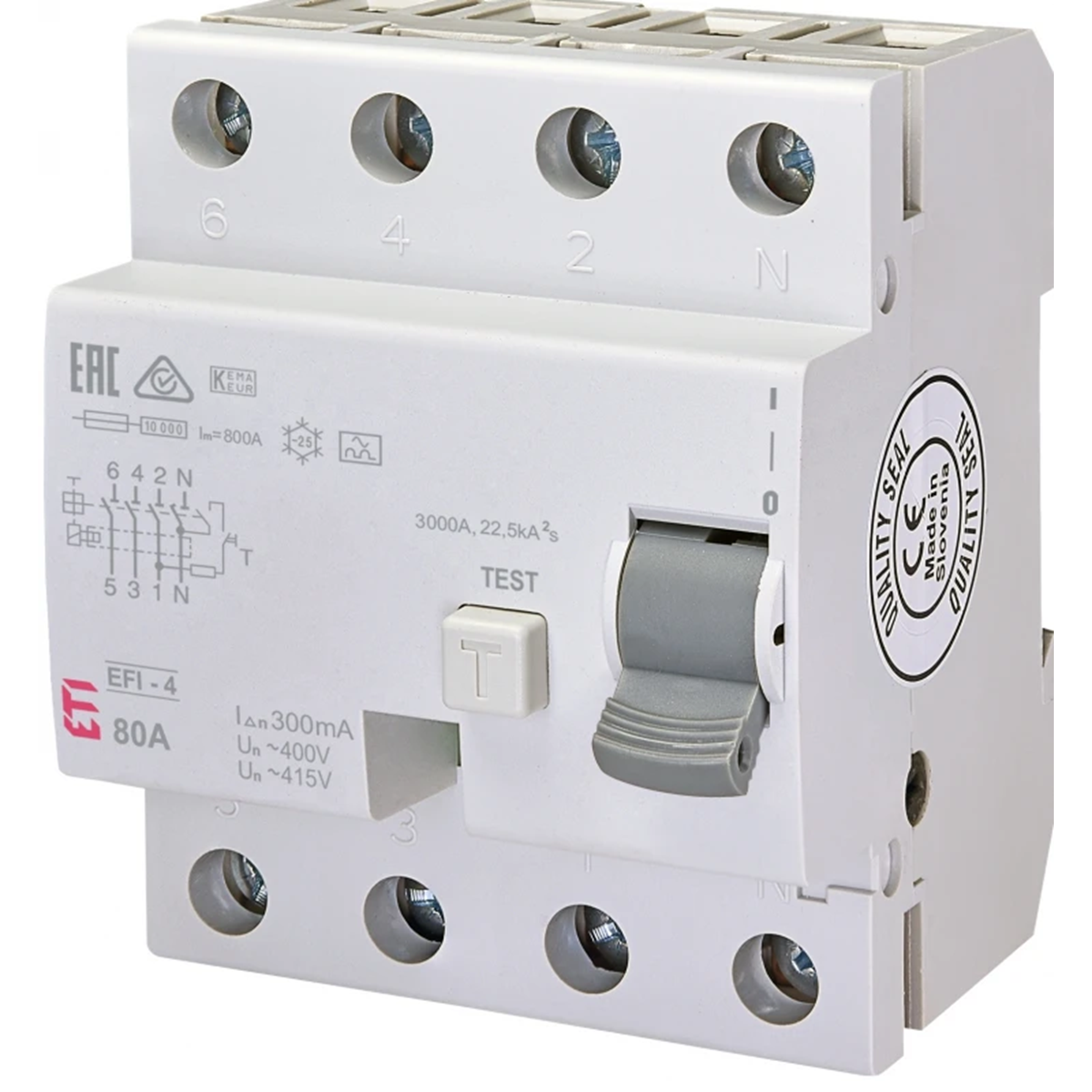

Residual current device EFI-4 80/0.3A, A 002064545
local index:
ARP008ETIP
Catalog No:
002064545
EAN code:
3838895129127
Price:
102,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
EFI residual current circuit breakers are manufactured in the following versions: two-pole - EFI-2 and four-pole EFI-4 as instantaneous AC and A trip type, short-time trip type - G/KV, accidental surge proof (discharge) 3 kA (8/20 μs) trip type UT, selective - EFI-4S AC trigger type.
Advantages:
→ the possibility of railing the clamps from the bottom and from above,
→ any power connection (bottom or top),
→ wide range of rated currents,
→ easy mounting of the auxiliary contact,
→ solid mechanical construction.
Advantages:
→ the possibility of railing the clamps from the bottom and from above,
→ any power connection (bottom or top),
→ wide range of rated currents,
→ easy mounting of the auxiliary contact,
→ solid mechanical construction.
Technical data
-
Number of poles4
-
Rated current [A]80
-
PKWIU27.12.22.0
-
Differential current [mA]300
-
Trigger typeAND
Other technical data
-
Number of poles4
-
Rated fault current300 A
-
Leakage current typeA
-
Frequency50/60 Hz
-
Degree of protection (IP)IP20
-
Built-in depth68 mm
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Rated current80 A
-
Mounting methodDIN rail
-
Short-circuit breaking capacity (Icw)10 kA
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
