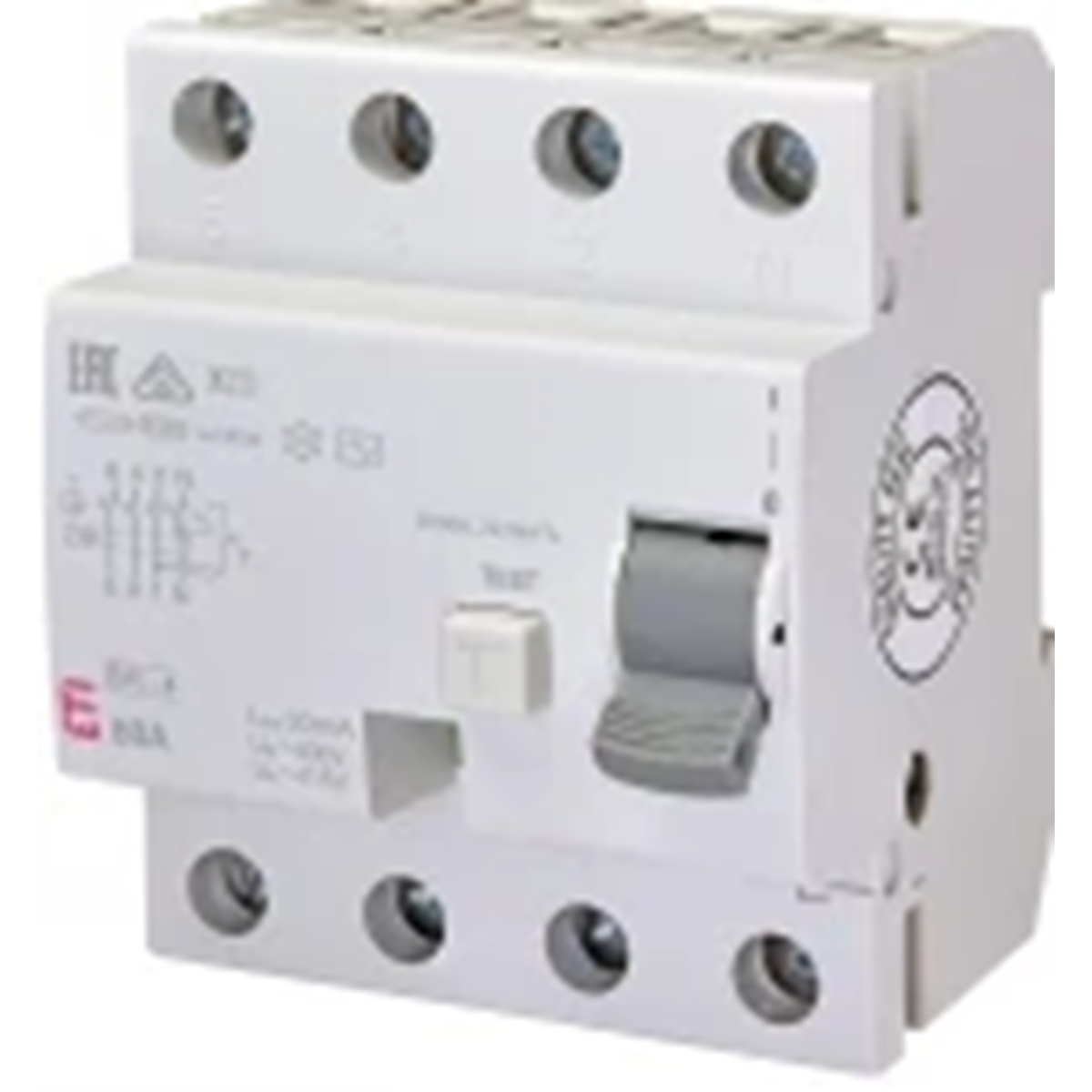

Residual current device EFI-4 80/0.03A, AC 002062145

local index:
ARP004ETIP
Catalog No:
002062145
EAN code:
3838895128823
Manufacturer: ETI POLAM
Rated current [A]: 80
Trigger type: AC
Weight [g]: 407
Price:
108,08 €
gross / pcs.
(including VAT 23%)
265,55 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

EFI residual current circuit breakers are produced in the following versions: two-pole - EFI-2 and four-pole EFI-4 as instantaneous trip type AC, A, B short-time trip type. G/KV, accidental surge proof (discharge) 3 kA (8/20 μs) trip type UT, selective - EFI-4S type of AC release.

Róresidual current devices, anti-shock, are used to implement additional anti-shock protection - preventing the maintenance of voltages dangerous for humans on the metal enclosures of protection class I devices. In addition, they complement the basic protection by excluding the currents flowing through the human body with direct contact – only circuit breakers with a residual current not greater than 30mA. Circuit breakers with 300mA differential current are used as fire protection devices.

Advantages:

  • possibility of railing terminals from the bottom and top
  • power connection any (from below or above)
  • wide range of rated currents
  •  easy assembly of auxiliary contact
  • solid mechanical construction

Technical data

  • Rated current [A]
    80
  • Weight [g]
    407
  • PKWIU
    27.12.22.0
  • Trigger type
    AC
  • Rated short-circuit capacity [kA]
    10

Other technical data

  • Number of poles
    4
  • Rated fault current
    30 A
  • Leakage current type
    AC
  • Frequency
    50/60 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    68 mm
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Rated current
    80 A
  • Mounting method
    DIN rail
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
