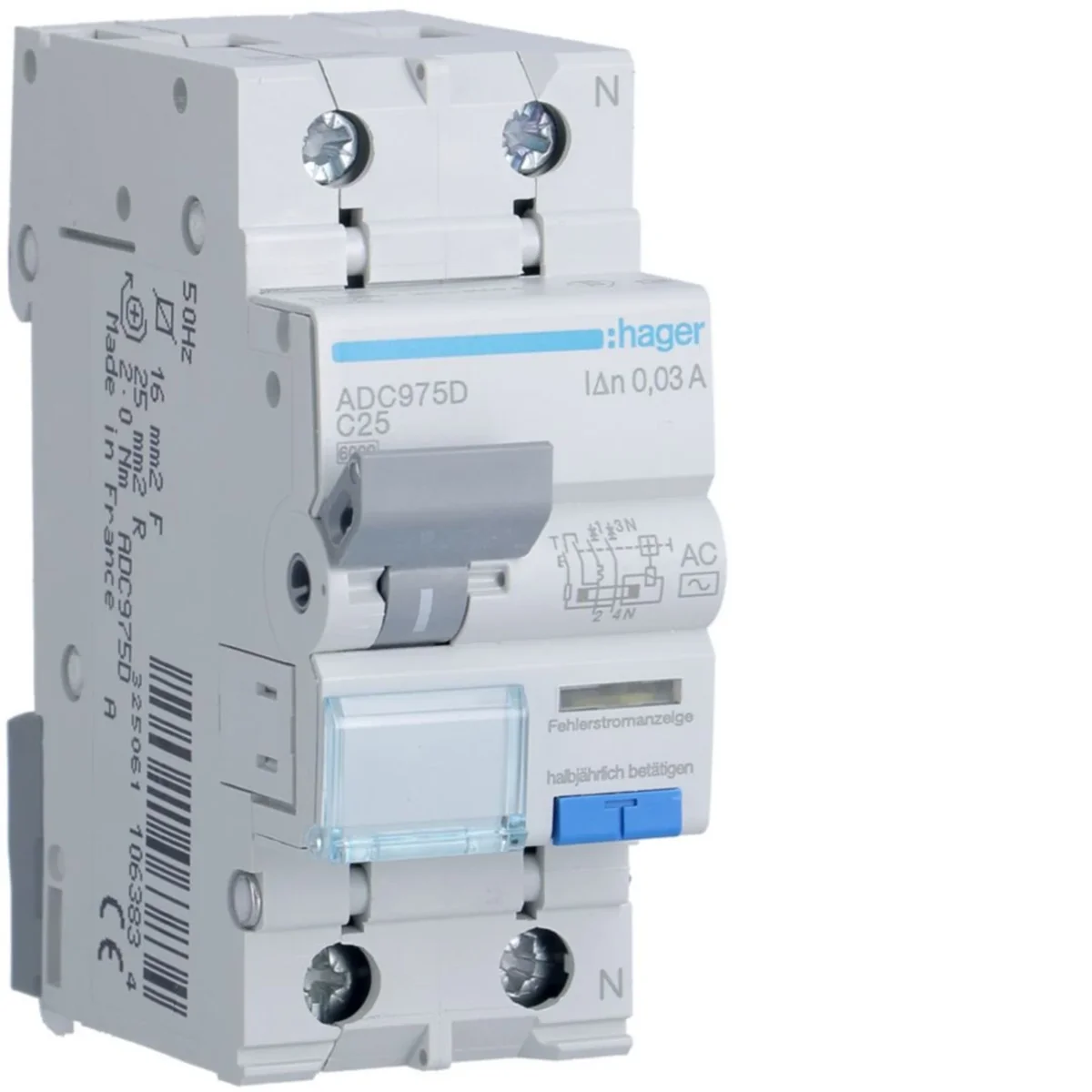

Residual current circuit breaker with overcurrent. W/6kA 25A 30mA 2pole AC type ADC975D

local index:
ARB018HAGE
Catalog No:
ADC975D
EAN code:
3250611063834
Manufacturer: HAGER
Characteristic: c
Depth [mm]: 68
Number of modules: 2
Price:
90,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current circuit breakers with overcurrent element Icn = 6000 A, type AC
• residual current circuit breakers with a highly sensitive overcurrent element, AC residual currents (sinusoidal alternating current),
• rated operational voltage 230 V AC,
• rated operating differential current: 30 mA,
• rated short-circuit breaking capacity: 6000 A,
• tripping characteristic for the overcurrent element: B or C,
• optical actuation indicator,
• description field with a safety flap,
• wide range of accessories,
• can be connected using horizontal comb busbars,
• cage terminals wire up to 25 mm2, stranded wire up to 16 mm2,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

  • Characteristic
    c
  • Number of modules
    2
  • Surge voltage [kV]
    6
  • Differential current [mA]
    thirty
  • Power dissipation [W]
    12.8
  • Trigger type
    AC
  • Rated short-circuit breaking capacity [kA]
    6
  • PKWIU
    27.12.22.0
  • Depth [mm]
    68
  • Number of poles
    2
  • Rated voltage [V]
    230
  • Rated current [A]
    25
  • Width [mm]
    35
  • Height [mm]
    83
  • Number of modules
    2

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    68 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    25 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to IEC 60947-2
    6 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,212 0,225 13,880 356,120
Width (m) 0,035 0,080 0,310 0,800
Length (m) 0,085 0,040 0,215 1,050
Depth (m) 0,071 0,100 0,360 1,200
