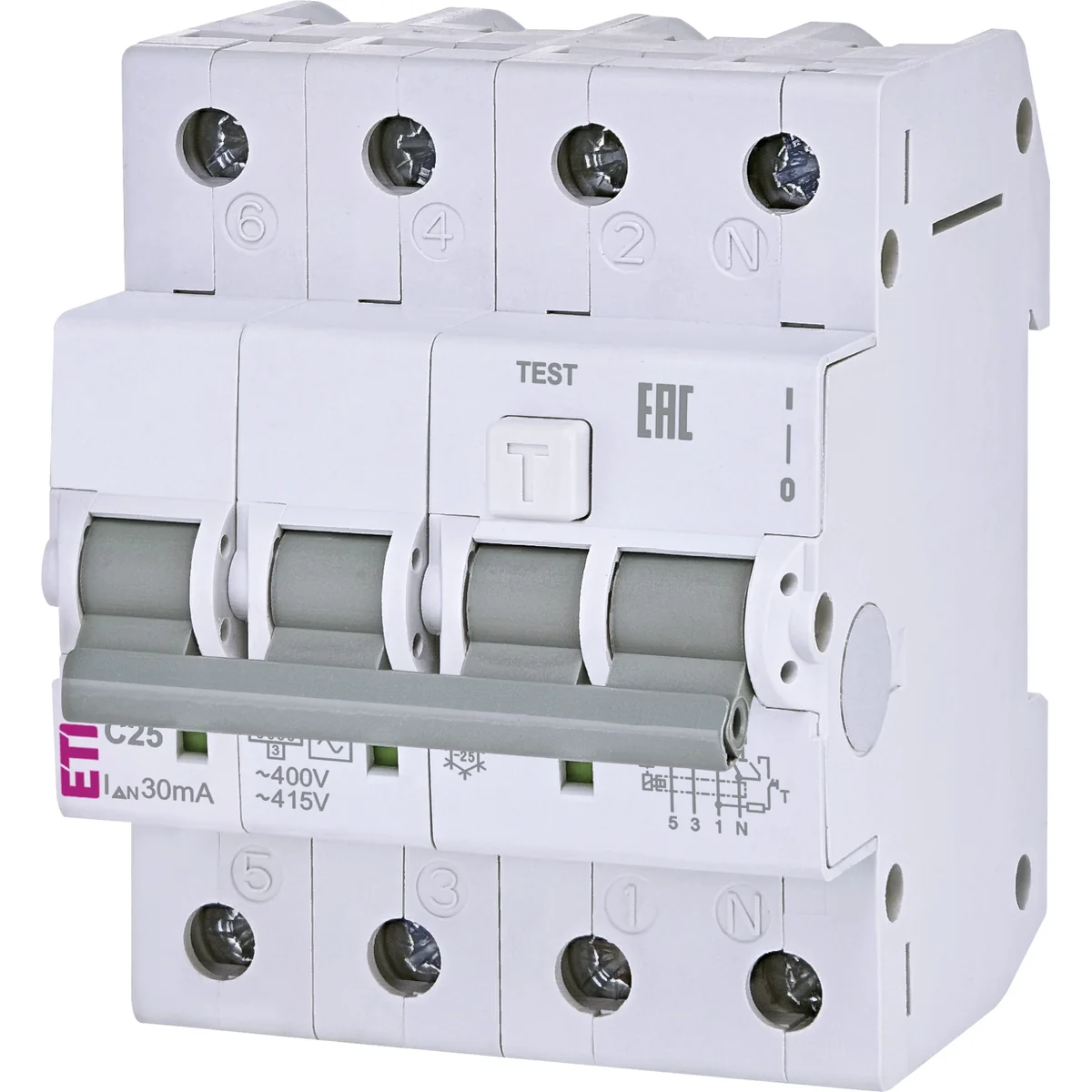

Residual current circuit breaker with overcurrent element KZS-4M C 25/0.03A, AC 002174026
local index:
ARB001ETIP
Catalog No:
002174026
EAN code:
3838895552192
Manufacturer:
ETI POLAM
Rated voltage [V]: 400
Differential current [mA]: thirty
Rated current [A]: 25
Price:
100,76 €
gross / pcs.
(including VAT 23%)
210,79 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Advantages:
→ short shutdown time.
→ complete protection of the operator against indirect contact.
→ disables only faulty electrical circuits.
→ operation of the circuit breaker independent of the mains voltage.
Technical data
-
Rated voltage [V]400
-
Rated current [A]25
-
Weight [g]478
-
PKWIU27.12.22.0
-
Differential current [mA]thirty
-
Trigger typeAC
-
Rated short-circuit capacity [kA]10
Other technical data
-
Number of poles (total)4
-
Rated voltage400 V
-
Rated fault current0.03 A
-
Current limiting class3
-
Frequency50/60 Hz
-
Concurrently switching neutral conductorYes
-
Built-in depth69 mm
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles3
-
Rated current25 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Release characteristicC
-
Width in number of modular spacings4
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 35 mm²
