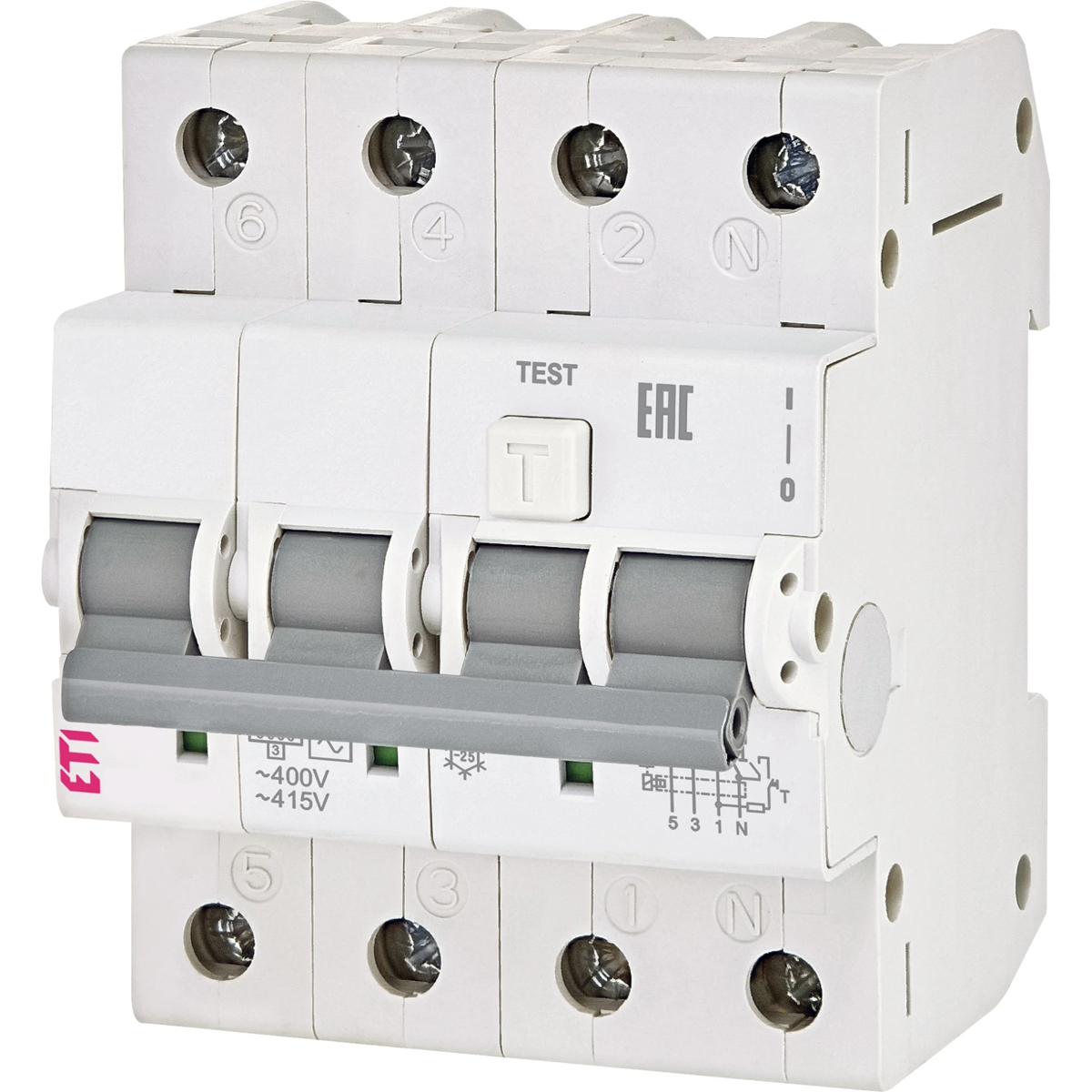

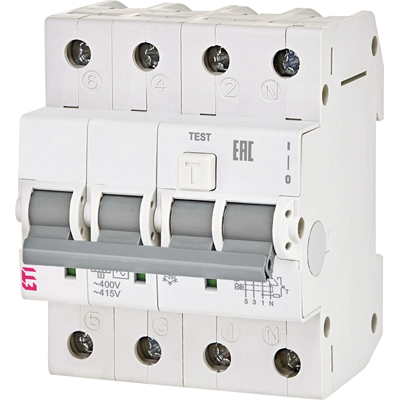

Residual current circuit breaker with overcurrent element KZS-4M B 16/0.03A, AC 002174004

local index:
ARP006ETIP
Catalog No:
002174004
EAN code:
3838895551997
Manufacturer: ETI POLAM
Rated voltage [V]: 400
Differential current [mA]: thirty
Rated current [A]: 16
Price:
100,76 €
gross / pcs.
(including VAT 23%)
210,79 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Advantages:
→ short shutdown time.
→ complete protection of the operator against indirect contact.
→ disables only faulty electrical circuits.
→ operation of the circuit breaker independent of the mains voltage.

Technical data

  • Rated voltage [V]
    400
  • Rated current [A]
    16
  • Weight [g]
    478
  • PKWIU
    27.12.22.0
  • Differential current [mA]
    thirty
  • Trigger type
    AC
  • Rated short-circuit capacity [kA]
    10

Other technical data

  • Number of poles (total)
    4
  • Rated voltage
    400 V
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Frequency
    50/60 Hz
  • Concurrently switching neutral conductor
    Yes
  • Built-in depth
    69 mm
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of protected poles
    3
  • Rated current
    16 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to EN 61009
    6 kA
  • Release characteristic
    B
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 35 mm²
