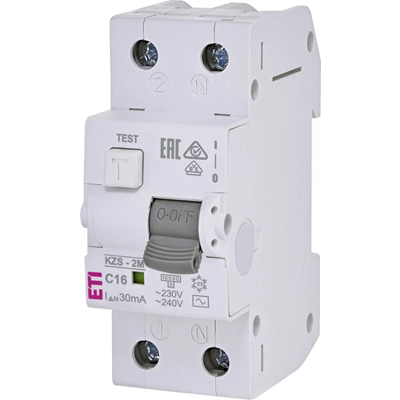

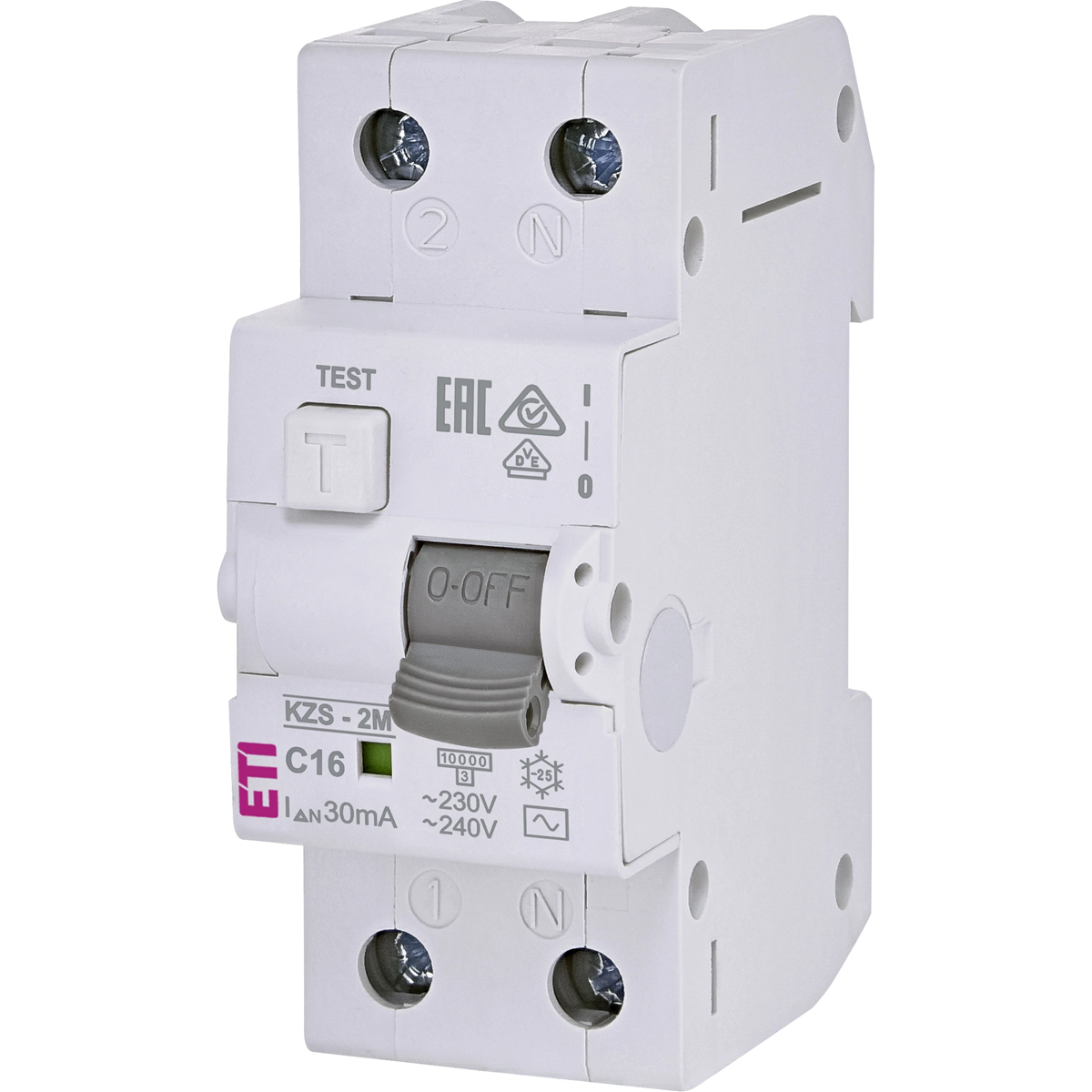

Residual current circuit breaker with overcurrent element KZS-2M C 16/0.03A, AC 002173124
local index:
ARB007ETIP
Catalog No:
002173124
EAN code:
3838895400714
Price:
45,93 €
gross / pcs.
(including VAT 23%)
219,76 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
This circuit breaker is a combination of an electric shock and overcurrent circuit breaker.
It is manufactured in a two-pole version, with both poles switching off each time.
Technical data
-
Differential current [mA]thirty
-
Trigger typeAC
-
Short-circuit breaking capacity [kA]10
-
PKWIU27.12.22.0
-
Rated current [A]16
-
Weight [g]209
-
AC rated voltage [V]230
Other technical data
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated current16 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to EN 6100910 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Built-in depth69 mm
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated fault current0.03 A
-
Current limiting class3
-
Voltage typeAC
-
Release characteristicC
-
Width in number of modular spacings2
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
