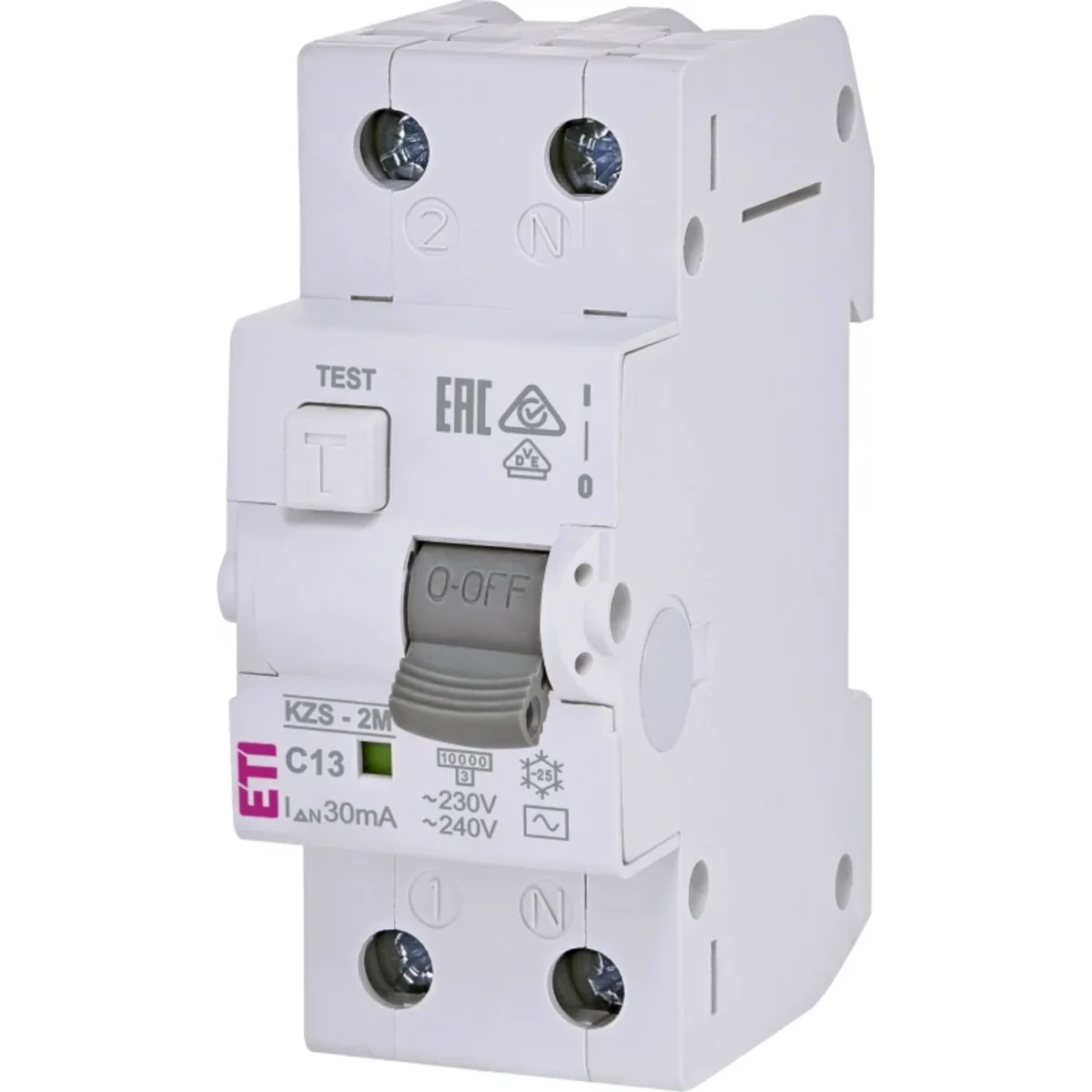

Residual current circuit breaker with overcurrent element KZS-2M C 13/0.03A, AC 002173123

local index:
ARB002ETIP
Catalog No:
002173123
EAN code:
3838895400691
Manufacturer: ETI POLAM
Rated voltage [V]: 230
Rated current [A]: 13
Working temperature [°C]: From -25 to +40
Price:
47,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

This switch is a combination of an anti-shock switch and an overcurrent switch.
It is manufactured in a two-pole version, with both poles switching off each time.

Advantages:

  • short switch-off time,
  • total protection of personnel against indirect contact,
  • switches off only faulty electrical circuits.

Technical data

  • Rated voltage [V]
    230
  • Working temperature [°C]
    From -25 to +40
  • Rated short-circuit capacity [kA]
    10
  • Rated current [A]
    13
  • Trigger type
    AC
  • PKWIU
    27.12.22.0

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated current
    13 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to EN 61009
    10 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Built-in depth
    69 mm
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Voltage type
    AC
  • Release characteristic
    C
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
