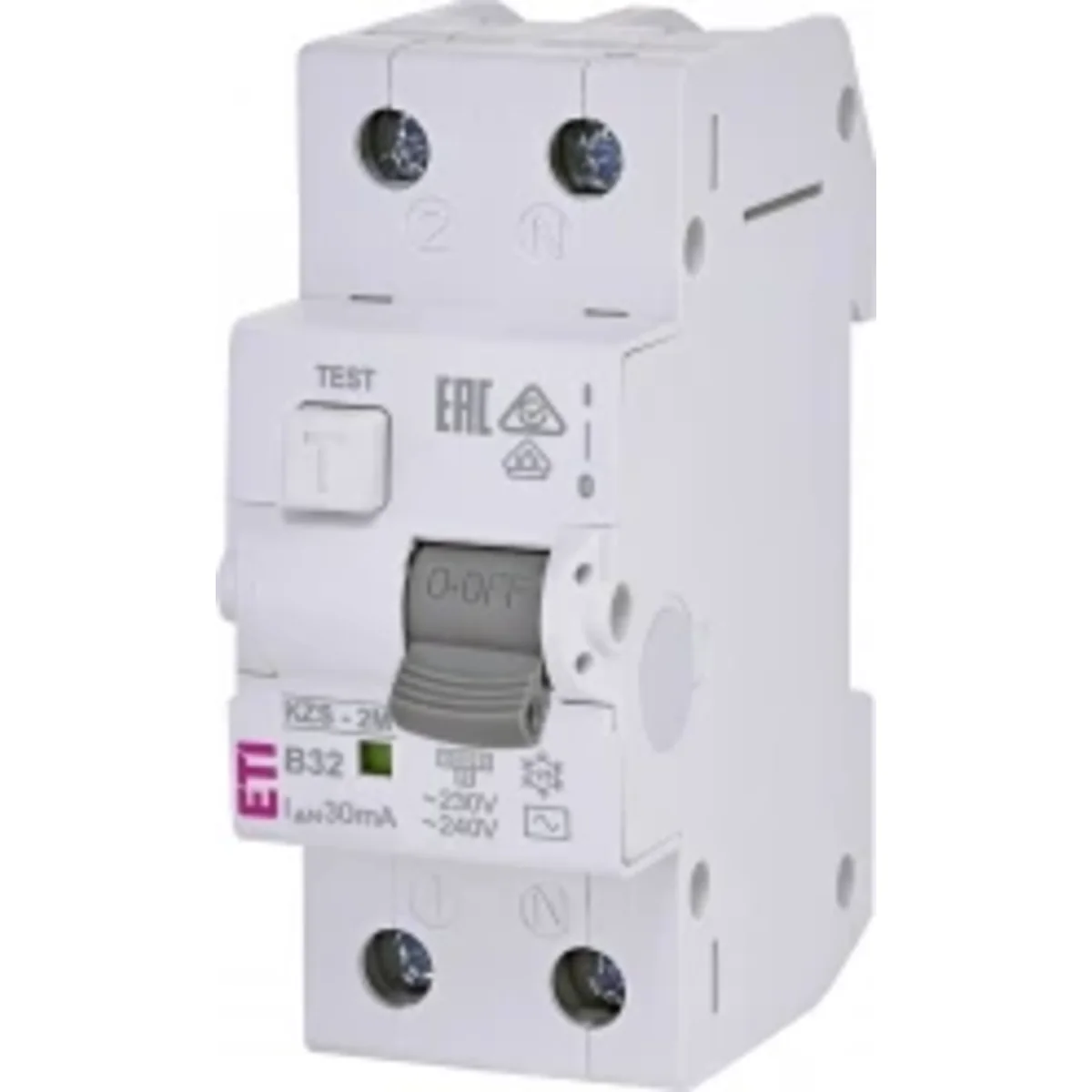

Residual current circuit breaker with overcurrent element KZS-2M B 32/0.03A, AC 002173107

local index:
ARB223ETIP
Catalog No:
002173107
EAN code:
3838895400912
Manufacturer: ETI POLAM
Rated voltage [V]: 230
Terminal capacity: 1-25mm2 (max. 3Nm)
Rated current [A]: 32
Price:
42,53 €
gross / pcs.
(including VAT 23%)
203,49 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

This circuit breaker is a combination of an electric shock and overcurrent circuit breaker. It is manufactured in a two-pole version, with both poles switching off each time.

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    32
  • Working temperature [°C]
    From -25 to +40
  • Weight [g]
    209
  • PKWIU
    27.12.22.0
  • Terminal capacity
    1-25mm2 (max. 3Nm)
  • Level of security
    IP20/40
  • Trigger type
    AC
  • Rated short-circuit capacity [kA]
    10

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated current
    32 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to EN 61009
    10 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Built-in depth
    69 mm
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Voltage type
    AC
  • Release characteristic
    B
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
