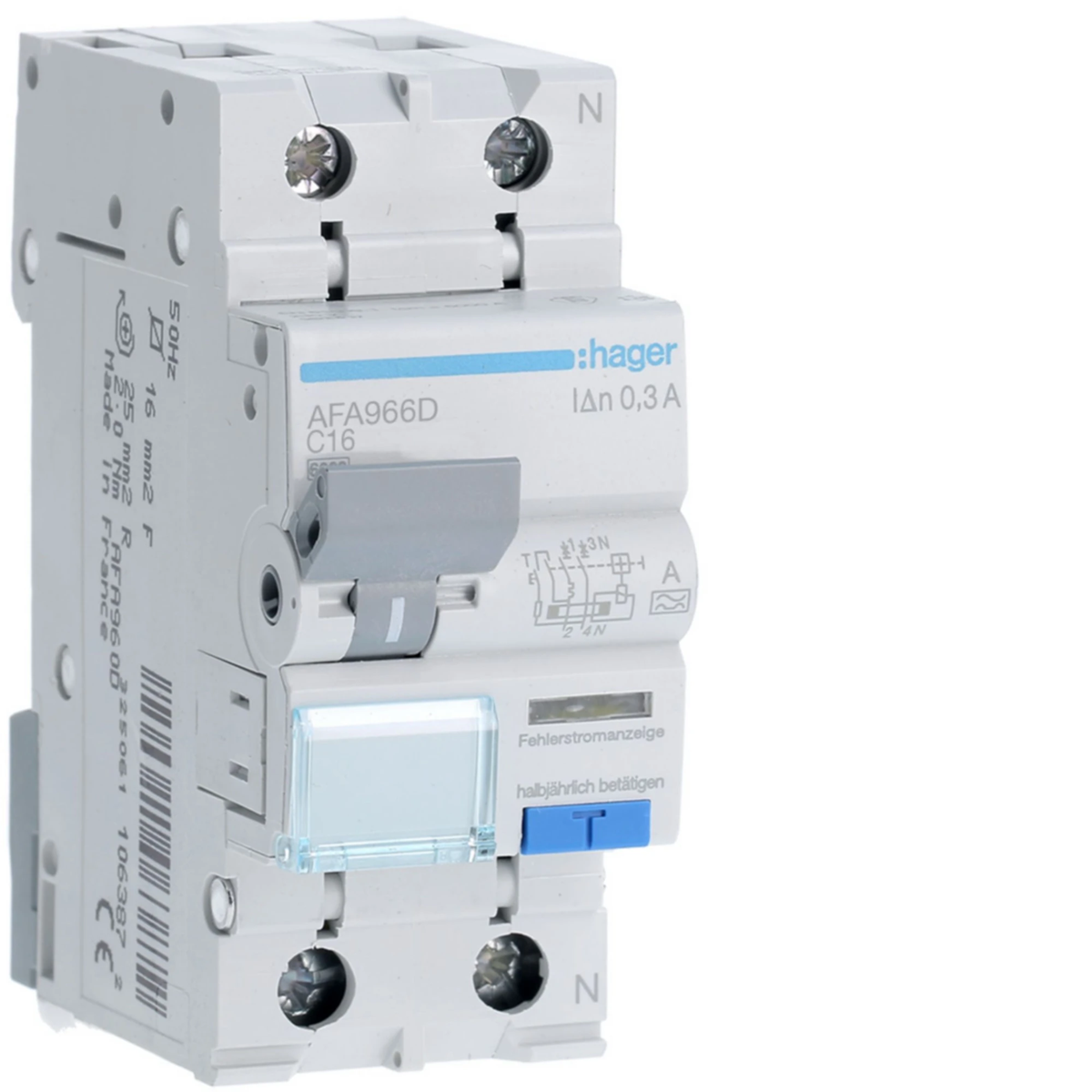

Residual current circuit breaker with overcurrent. C/6kA,16A,300mA,2pole type A AFA966D

local index:
ARB010HAGE
Catalog No:
AFA966D
EAN code:
3250611063889
Manufacturer: HAGER
Characteristic: c
Depth [mm]: 68
Number of modules: 2
Price:
100,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current circuit breaker with overcurrent. C/6kA,16A,300mA,2pole type A

Technical data

  • Characteristic
    c
  • Number of modules
    2
  • Surge voltage [kV]
    6000
  • Rated insulation voltage [V]
    2000
  • Rated current [A]
    16
  • Width [mm]
    35
  • Height [mm]
    83
  • Number of modules
    2
  • Depth [mm]
    68
  • Number of poles
    2
  • Rated voltage [V]
    230
  • Differential current [mA]
    300
  • power loss [W]
    4
  • Trigger type
    AND
  • Rated short-circuit breaking capacity [kA]
    6
  • PKWIU
    27.12.22.0

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.3 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    68 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    16 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to IEC 60947-2
    6 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,221 0,222 13,760 353,240
Width (m) 0,035 0,080 0,315 0,800
Length (m) 0,094 0,038 0,215 1,010
Depth (m) 0,070 0,098 0,360 1,200
