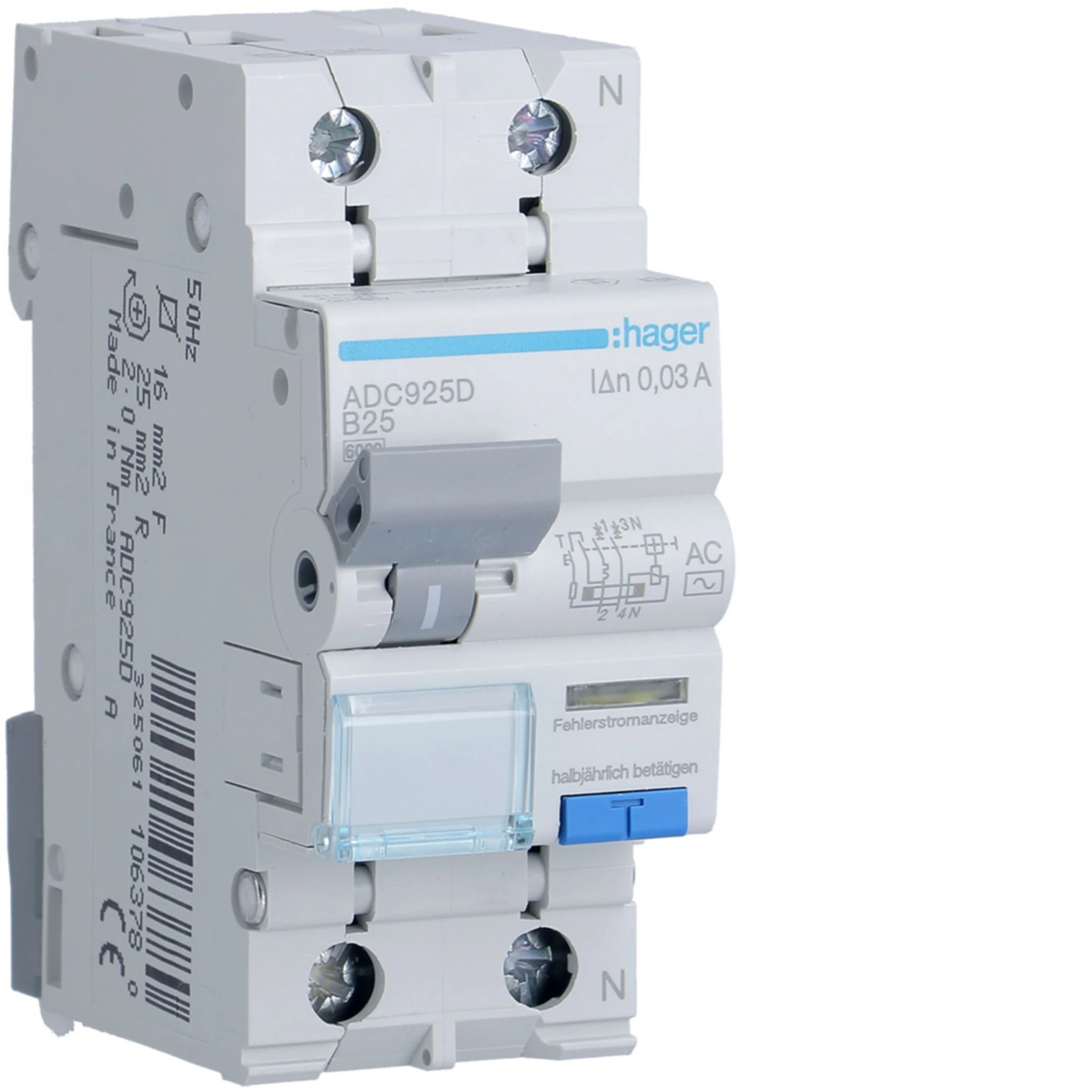

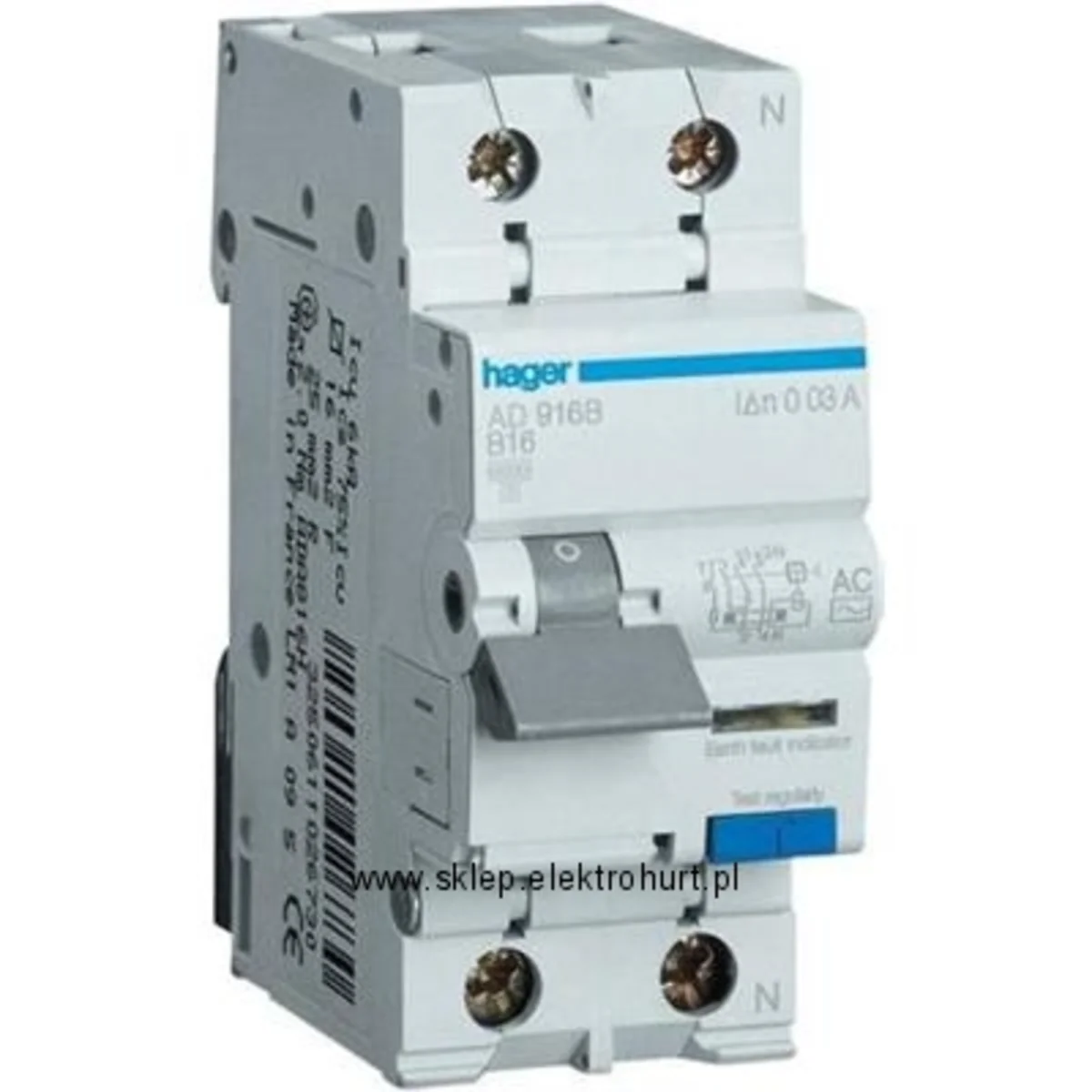

Residual current circuit breakers with overcurrent element Icn = 6000 A, type AC
• residual current circuit breakers with a highly sensitive overcurrent element, AC residual currents (sinusoidal alternating current),
• rated operational voltage 230 V AC,
• rated operating differential current: 30 mA,
• rated short-circuit breaking capacity: 6000 A,
• tripping characteristic for the overcurrent element: B or C,
• optical actuation indicator,
• description field with a safety flap,
• wide range of accessories,
• can be connected using horizontal comb busbars,
• cage terminals wire up to 25 mm2, stranded wire up to 16 mm2,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Depth [mm]

68
Number of poles

2
Rated voltage [V]

230
Differential current [mA]

thirty
Width [mm]

35
Height [mm]

83
Number of modules

2

Number of modules

2
Surge voltage [kV]

6000
Rated insulation voltage [V]

2000
Rated current [A]

25
Trigger type

AC
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Other technical data

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

25 A
Leakage current type

AC
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,220	0,225	13,890	356,360
Width (m)	0,035	0,080	0,315	0,800
Length (m)	0,085	0,040	0,215	1,006
Depth (m)	0,071	0,095	0,360	1,200
