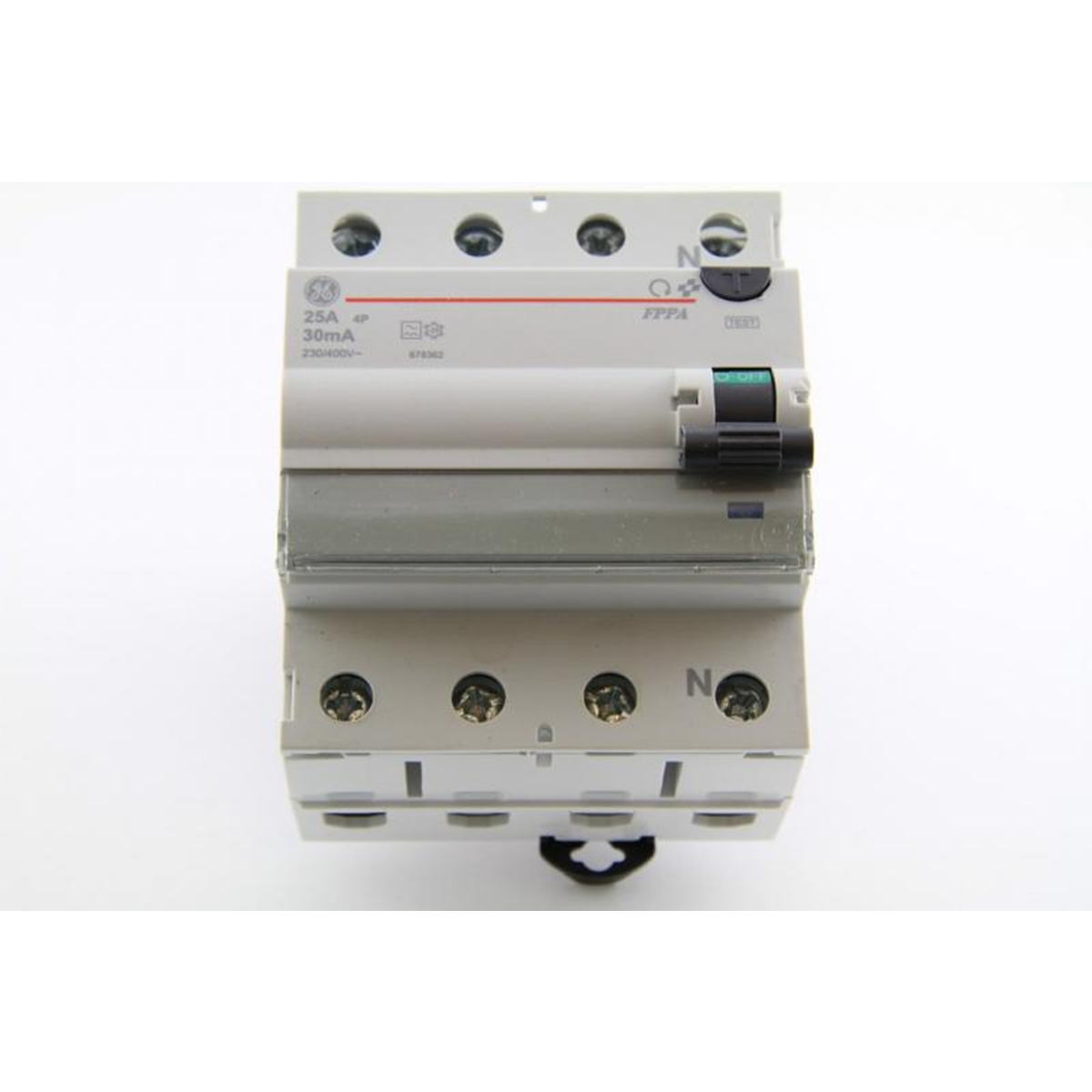

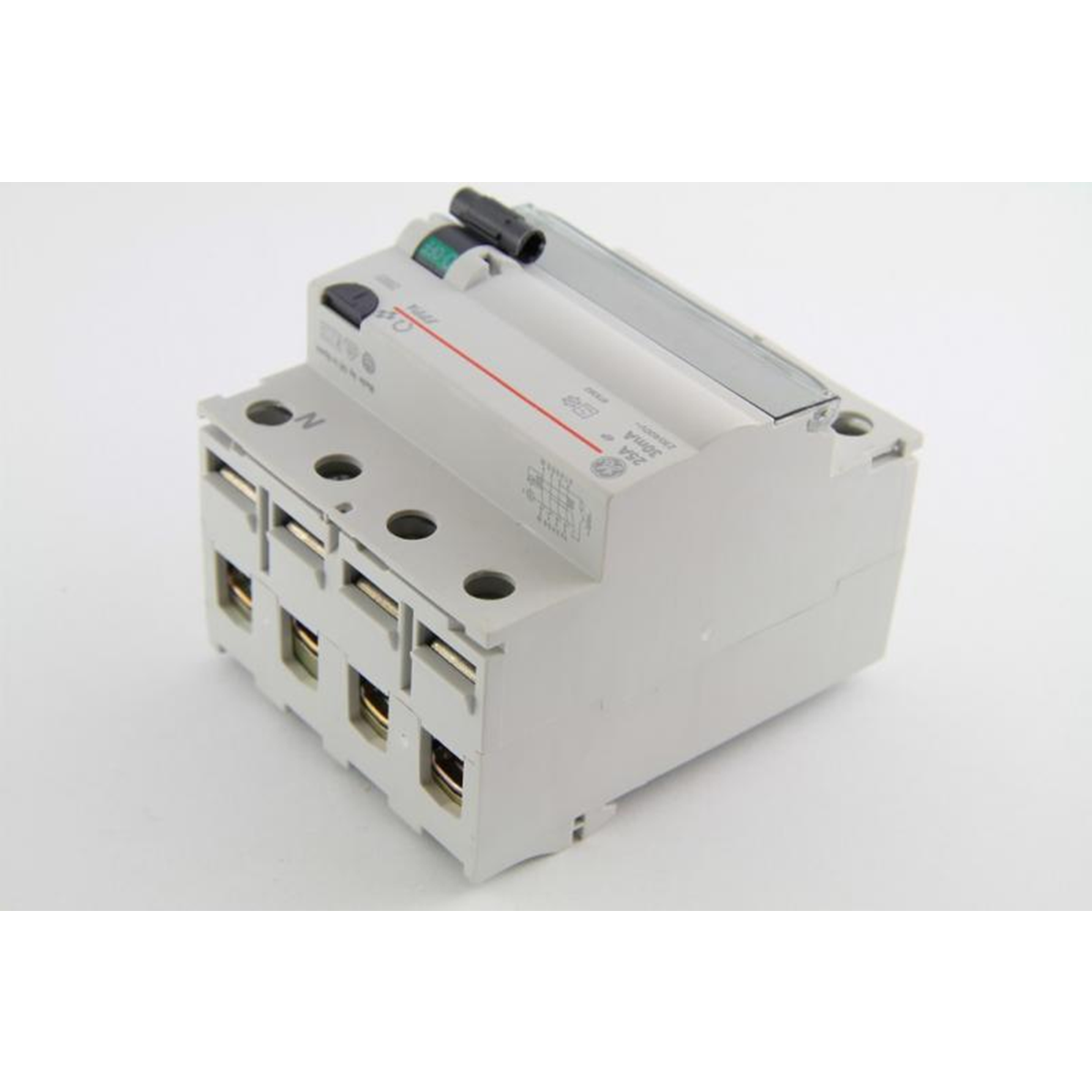

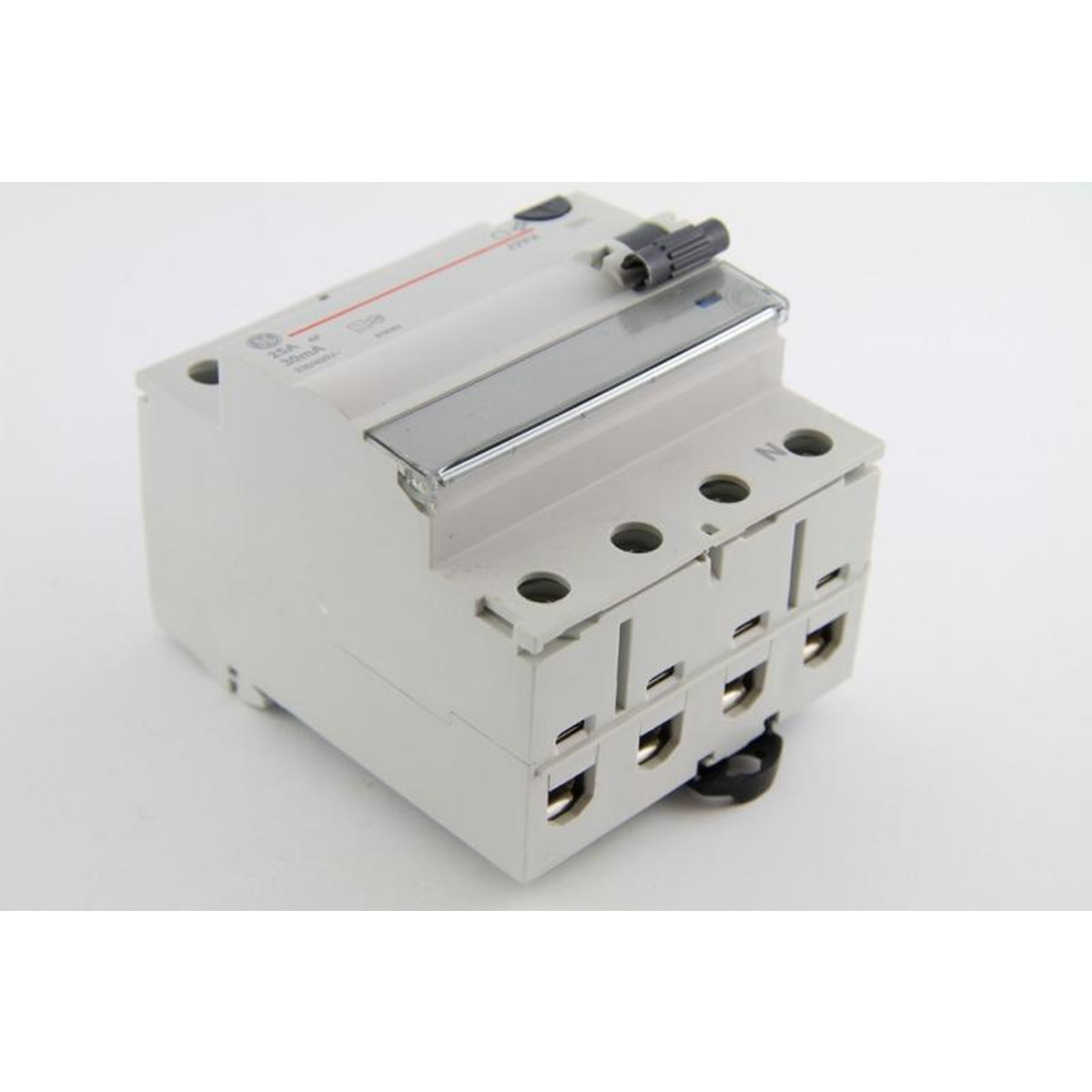

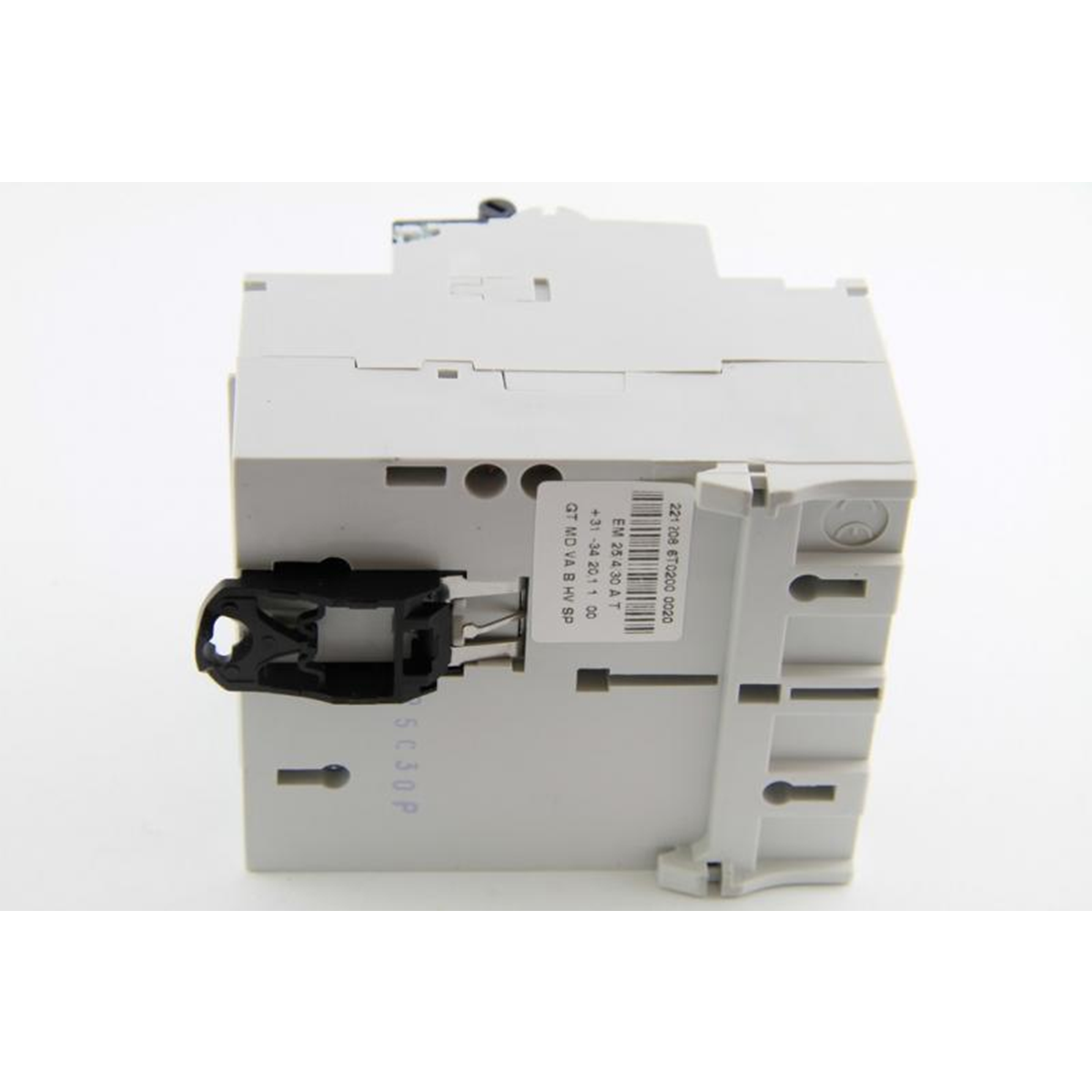

Residual current circuit breaker type A, plug-in terminals FPPA 425/030 678362
local index:
ARP024ABBQ
Catalog No:
678362
EAN code:
5413656783626
Price:
33,32 €
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
106,65 € gross
-73,33 €
Price history for this product
1. 33,32 € gross / pcs.
2. The lowest price from 30 days before the reduction:
106,65 €
-73,33 €
3. Base price:
106,65 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Base price:
106,65 € gross
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Fixwell type overcurrent and residual current circuit breakers are part of the Redline series.
Designed to keep installation time to an absolute minimum.
Tool-free installation with guaranteed reliability from the very first moment thanks to plug & play technology.
100% compatibility with Redline accessories and aids is the key to the success of this innovative series.
Technical data of FPP residual current devices:
ATTENTION! Limited quantity.< /font>
Designed to keep installation time to an absolute minimum.
Tool-free installation with guaranteed reliability from the very first moment thanks to plug & play technology.
100% compatibility with Redline accessories and aids is the key to the success of this innovative series.
Technical data of FPP residual current devices:
- Rated current In 25, 40, 63 A
- Residual current 30, 100, 300 mA
- Rated voltage Un 2P 240/ 4P 415 V AC
- Minimum operating voltage 2P: 110 V; 4P: 190 V
- Mechanical/Electrical durability: 20000/10000
- Wire cross-section 35-50 mm?
- Number of poles 2, 4
- Executions Type A, Type S
ATTENTION! Limited quantity.< /font>
Technical data
-
Number of modules4
-
Rated voltage [V]230
-
Electrical Durability20000/10000
-
Number of modules4
-
Number of poles4
-
Rated current [A]25
-
Trigger typeAND
-
PKWIU31.20.22-30.94
Other technical data
-
Number of poles4
-
Rated current25 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Frequency50/60 Hz
-
With interlocking deviceNo
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 40 °C
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Rated voltage400 V
-
Rated fault current0.03 mA
-
Rated impulse withstand voltage Uimp6 kV
-
Leakage current typeA
-
Short-time delayed trippingYes
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Built-in depth44 mm
-
Pollution degree3
-
Connectable conductor cross section solid-core1 ... 35 mm²
Manufacturer details
-
ManufacturerABB SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
-
Address04-713 UL. ŻEGAŃSKA 1
-
Tax identification number5260304484
