el12 Electrical apparatus RCDs Electric shock switches Residual current circuit breaker P302 25A 300mA

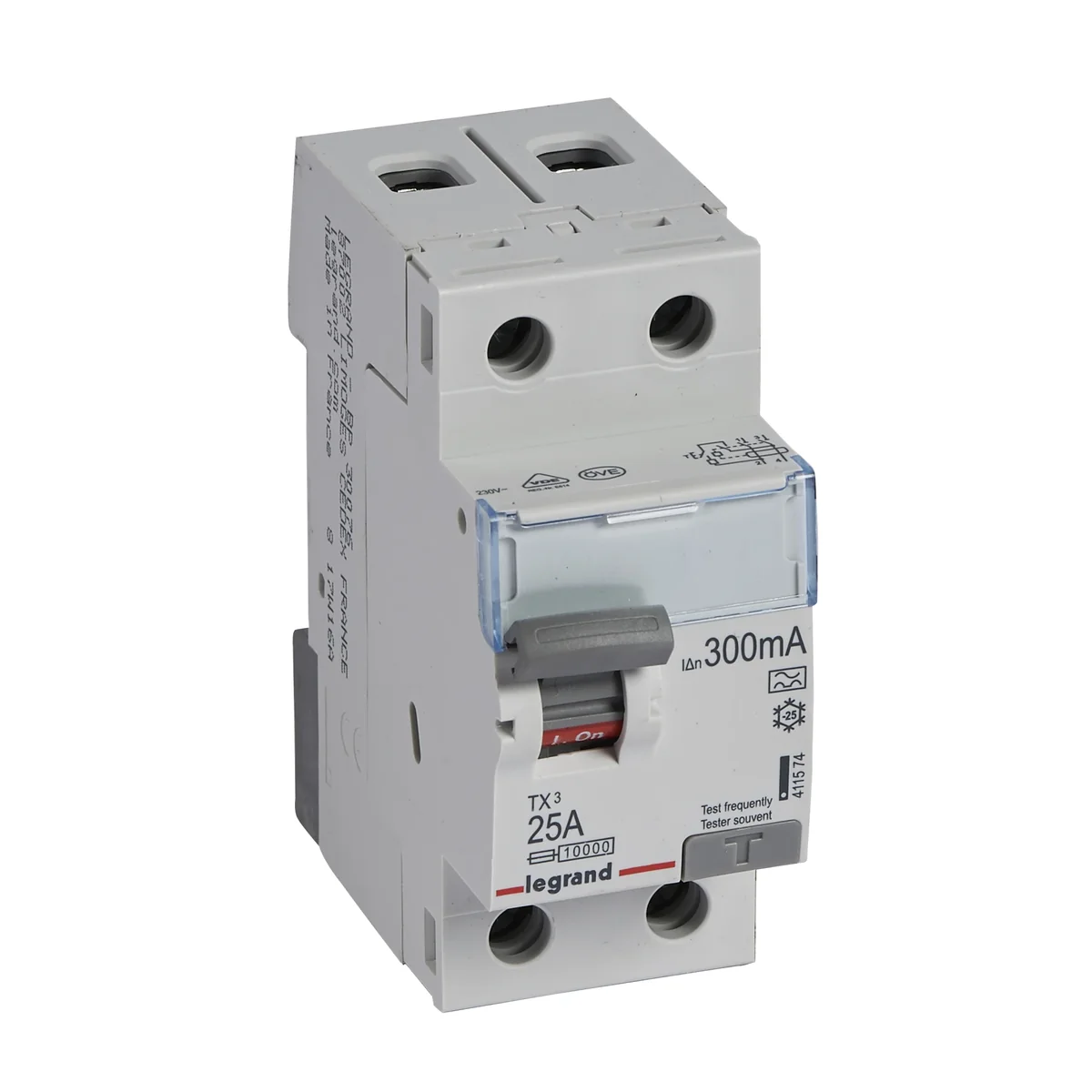

Residual current circuit breaker P302 25A 300mA
Residual current circuit breaker P302 25A 300mA

Click on the photo to enlarge

Residual current circuit breaker P302 25A 300mA
Residual current circuit breaker P302 25A 300mA
LEGRAND

Residual current circuit breaker P302 25A 300mA 411574

local index:
ARP121LEGR
Catalog No:
411574
EAN code:
3414970352866
Price:
63,50 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Legrand Residual overcurrent circuit breaker P302 25A/300mA AC

Impact resistance: 250 A
Connection wire cross-section: 1.5...35 mm²
Mounting: On TH 35 mounting brackets -2 according to PN-EN 60715 by means of two bistable catches
Compliance with the standard: EN 61009
Print the product sheet Report an error

Technical data

  • Color
    Gray
  • Maximum operating temperature [°C]
    40
  • Differential current [mA]
    300
  • Rated short-circuit current [A]
    6000
  • Width in modules
    2
  • Mechanical durability (number of cycles)
    4000
  • Number of poles
    2
  • Rated voltage [V]
    230
  • Rated current [A]
    25
  • Clamp type
    bushing
  • Trigger type
    AND
  • Minimum operating temperature [°C]
    -25

Other technical data

  • Rated voltage
    230 V
  • Rated fault current
    300 mA
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    no
  • Surge current capacity
    0.25 kA
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Connectable conductor cross section multi-wired
    0.75 ... 35 mm²
  • Rated current
    25 A
  • Rated insulation voltage Ui
    250 V
  • Mounting method
    DIN rail
  • Selective protection
    no
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50 Hz
  • With interlocking device
    yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section solid-core
    0.75 ... 50 mm²

Catalog cards, diagrams, certificates

F01575EN-03.pdf
LGRP-00366-V02.01-EN.pdf
