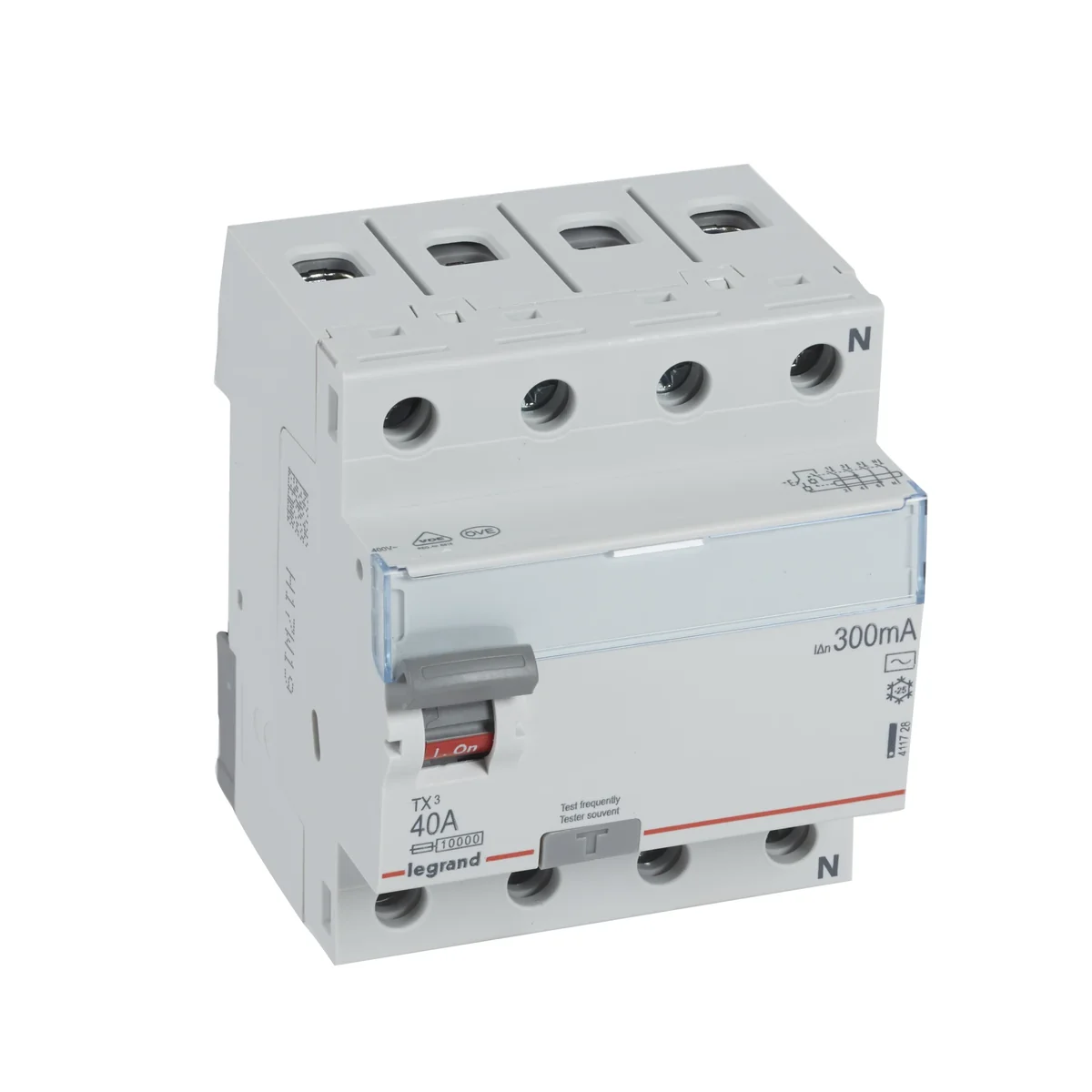

Residual current circuit breaker P 304 40 A 300 MA AC 411728

Rated conventional short-circuit current Inc = 10000 A
According to IEC 61008 - 1
Types
- AC: detects alternating leakage currents
- A: detects alternating leakage currents, distorted alternating currents with DC component
- Hpi: detects alternating, distorted alternating currents with a DC component
and provides high resistance to unnecessary tripping during transients


Product parameters

Four-pole - 400 V~< br>AC type
Rated residual current: 300 mA
Rated current: 40 A
Width in 17.5 mm modules: 4
Neutral pole located on the right side of the circuit breaker
